➤ Used GENTIGER GT1614V For sale | gindumac.com

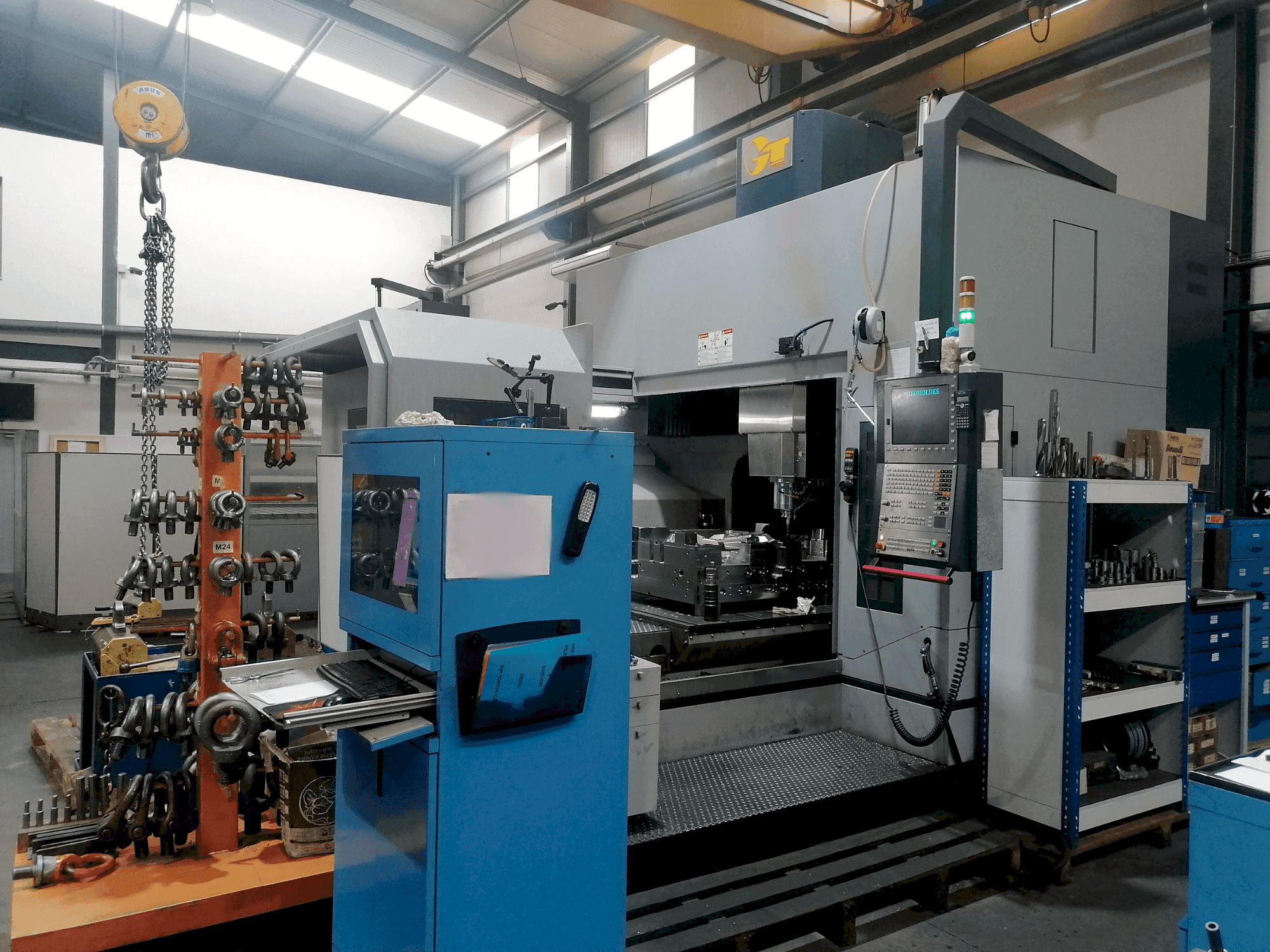

This 3-axis GENTIGER GT1614V vertical machining centre was manufactured in 2017. It features a robust table area of 1,500 x 1,600 mm, a maximum spindle speed of 10,000 rpm, and a direct drive spindle motor rated at 22 kW. The machine supports a maximum load of 5,000 kg and includes a 20-tool ATC capacity. Ideal for heavy-duty machining, the GENTIGER GT1614V represents a significant asset for any production line. Contact us for further details regarding this vertical machining centre.

Overview

brand: GENTIGER
year: 2017
MODEL: GT1614V
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - GENTIGER GT1614V

General Data

Measurements width: 4285 MM
Measurements depth: 4665 MM
Measurements height: 3830 MM
Machine weight: 25200 KG

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 10,000 1/MIN
Spindle motor power: 22 kw
Tool taper: BT / BBT-50

Movement

X-AXIS Movement: 1400 mm
X-AXIS Working Feed: 20 m/min
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 1600 mm
Y-AXIS Working Feed: 18 m/min
Y-AXIS Rapid traverse: 18 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Working Feed: 20 m/min
Z-AXIS Rapid traverse: 20 m/min

Workpiece

Workpiece x: 1600 mm
Workpiece y: 1800 mm
Workpiece z: 850 mm

Table

Outer length: 1500 mm
Outer width: 1600 mm
TSlots size: 22 x 200 x 8 mm
Min distance between vertical spindle and table: 320 mmm
Max distance between vertical spindle and table: 1020 mm
Table load: 5000 kg

Tools

Max weight: 15 kg
Max tool diameter: 133 mm
Max tool length: 300 mm

Additional Equipment

- ATC with 20 tools
- Coolant tank capacity: 400 liters

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle bearing ins. Diameter: 90 mm
- - Total power consumption (max. ): 58 kw
- - Servo motor for 3 axes: x: 15. 7 kw / y: 7 kw / z: 10 kw
- - Packing dimension: 5,350 x 4,000 x 3,700 mm
- - High spindle speed, direct drive motor, rapid feedrates.
Qualitative Machine Benefits:
- - Grease lubrication, oil-cooling system, high table load capacity.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
