- ➤ Used Gildemeister SPEED 32/10 linear | Turning

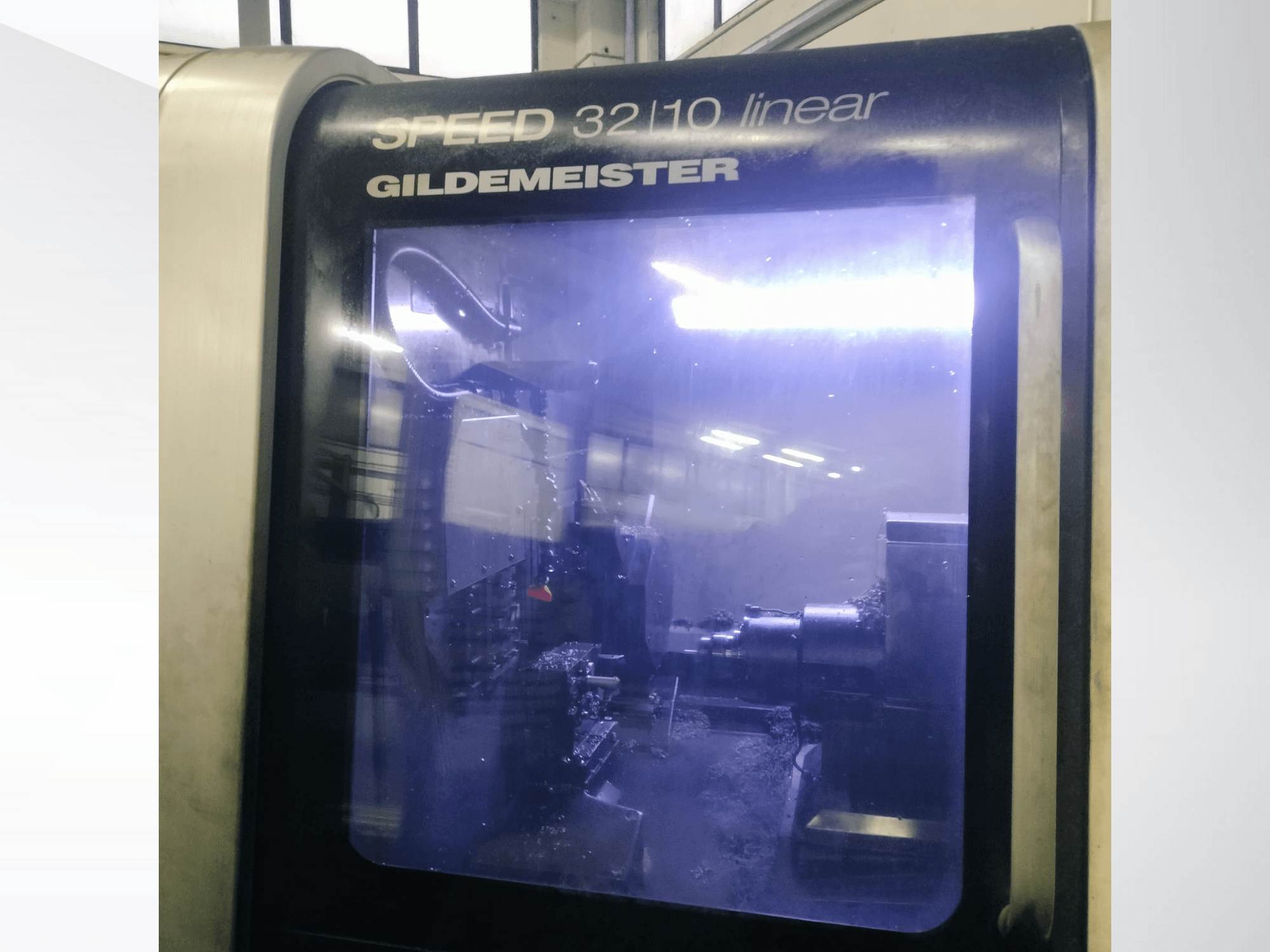

This 4-axis Gildemeister SPEED 32/10 linear was manufactured in 2008. It features a CNC Fanuc 310iS control, a main spindle with a bar capacity of 33 mm, and a maximum speed of 8,000 rpm. The machine offers robust multitasking capabilities with a total of 16 driven tool stations and a turret for efficient processing. If you are looking to get high-quality turning capabilities, consider the Gildemeister SPEED 32/10 machine we have for sale. Contact us for more information.
Overview
- brand: Gildemeister
- year: 2008
- MODEL: SPEED 32/10 linear
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Gildemeister SPEED 32/10 linear
Control Unit
- Control Brand: FANUC
- Control Model: Fanuc 310
Additional Information
CNC: Fanuc 310iS
Panel type: SlimLine
Screen: 15" TFT Color
Controlled spindles (including C axes): 2
Controlled axes: 8
Channels: 3
Bar capacity: 33 mm (36 mm max)
Draw tube inner diameter: 46 mm
Maximum speed: 8000 rpm
Nominal torque (S1): 24 Nm
Nominal power (S1): 5.5 kW
Draw tube inner diameter: 38 mm
Maximum speed: 8000 rpm
Nominal torque (S1): 9.4 Nm
Nominal power (S1): 3.7 kW
Axis X1
Travel: 50 mm
Maximum speed: 40 m/min
Maximum acceleration: 10 m/s²
Nominal thrust (S1): 1200 N
Axis Y1
Travel: 350 mm
Maximum speed: 30 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 5000 N
Axis Z1
Travel: 320 mm
Maximum speed: 40 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 2500 N
Axis X2
Travel: 310 mm
Maximum speed: 40 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 2500 N
Axis Z2
Travel: 320 mm
Maximum speed: 40 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 2500 N
Axis X3
Travel: 80 mm
Maximum speed: 40 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 1200 N
Axis Y3
Travel: 60 mm (±30 mm)
Maximum speed: 18 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 5000 N
Axis Z3
Travel: 150 mm
Maximum speed: 40 m/min
Maximum acceleration: 5 m/s²
Nominal thrust (S1): 2500 N
Turret
Total stations: 16
Fixed external tools: 8
Tool shank size: 16×16 mm
Driven tool stations: 16
Collet type: ESX/ER 20
Maximum driven speed: 5000 rpm
Nominal torque (S1): 4.8 Nm
Nominal power (S1): 1.5 kW
Tools
Toolholder Slide 1
Total stations: 10
Fixed external tools: 6
Tool shank size: 16×16 mm
Driven tools: 4
Collet type: ESX/ER 20
Maximum driven speed (GEO 7–9): 5000 rpm
Nominal torque (S1): 2.19 Nm
Nominal power (S1): 0.55 kW
Secondary driven speed (GEO 8–10): 3333 rpm
Nominal torque (S1): 3.28 Nm
Nominal power (S1): 0.55 kW
Back Working Slide
Total stations: 4 + 2
Internal fixed tools: 3
Toolholder diameter: 25 mm
External fixed tools: 1
Driven stations: 2
Collet type: ESX/ER 16
Maximum driven speed: 6000 rpm
Nominal torque (S1): 1.75 Nm
Nominal power (S1): 0.55 kW
Media
Lubrication System
Tank capacity: 2.9 L
Operating pressure: 30 bar
Stop time: 7 minutes
Operating cycle time: 30 seconds
Lubricant type: Castrol Magna BD 68
Pneumatic System
Minimum operating pressure: 5 bar
Maximum operating pressure: 6 bar
Consumption: 60 NL/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
