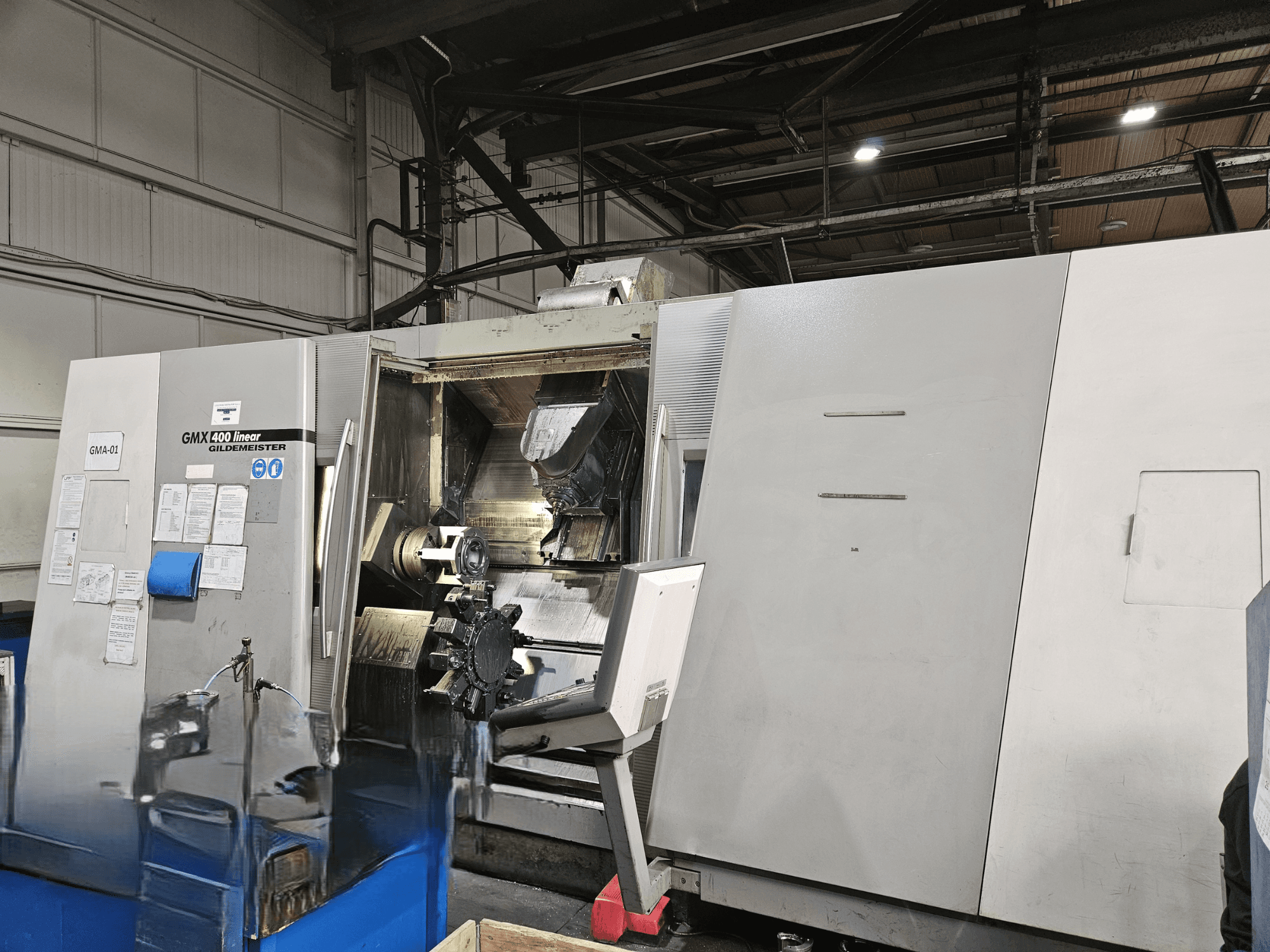

Gildemeister GMX 400 Linear turn-mill centre in front view, showcasing open access to the machining area and tools inside.
Gildemeister GMX 400 Linear turn-mill centre in front view, showcasing open access to the machining area and tools inside.

Gildemeister - GMX 400 LinearPL-TUR-GIL-2005-00001

50,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 7-axis Gildemeister GMX 400 Linear was manufactured in 2005. It features a maximum turning diameter of 640 mm and a turning length of 1585 mm. The machine is equipped with a Siemens Sinumerik 840D Powerline CNC control and offers rapid traverse speeds of 40 m/min in the X-axis. If you are looking to get high-quality turning and milling capabilities, consider the Gildemeister GMX 400 Linear turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: Gildemeister
  • year: 2005
  • MODEL: GMX 400 Linear
  • production hours: 53201
  • application type: Turning
  • Location: Poland
  • machine type: Turn-Mill Centre
  • control unit brand: SIEMENS

Technical Information - Gildemeister GMX 400 Linear

Control Unit

  • Control Brand: SIEMENS

Movement

  • Number of Axes: 7
  • X-axis Travel: 550 mm
  • Y-axis Travel: 220 mm
  • Z-axis Travel: 1585 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Max. Tool Weight: 10 kg
  • Spindle Speed: 4000 RPM

Additional Information

  • B-axis swivel range: ±120°

  • C-axis resolution: 0.001°

  • Rapid traverse (X/Y/Z): 40 / 24 / 60 m/min

  • Maximum turning diameter: 640 mm

  • Standard turning diameter: approx. 400 mm

  • Maximum turning length: 1585 mm

  • Bar capacity: approx. 90–92 mm

  • Chuck diameter: 250 mm

  • Counter spindle speed: 4000 rpm

  • Maximum torque: approx. 600–730 Nm

  • Milling spindle: Integrated motor spindle (ISM) with B-axis

  • Milling spindle speed: 12,000 rpm

  • Milling spindle power: 13.2 / 22 kW

  • Milling spindle max. torque: approx. 100 Nm

  • Turret: 12-position driven turret

  • Tool shank: 40 mm, DIN 69880

  • Tool length limits: 200–350 mm

  • Maximum tool diameter: 80–140 mm

  • Maximum tool projection: 60–70 mm

  • Connected load: 100 kVA

  • Additional notes: Linear drive technology; Made in Germany; Machine under power and available for inspection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
