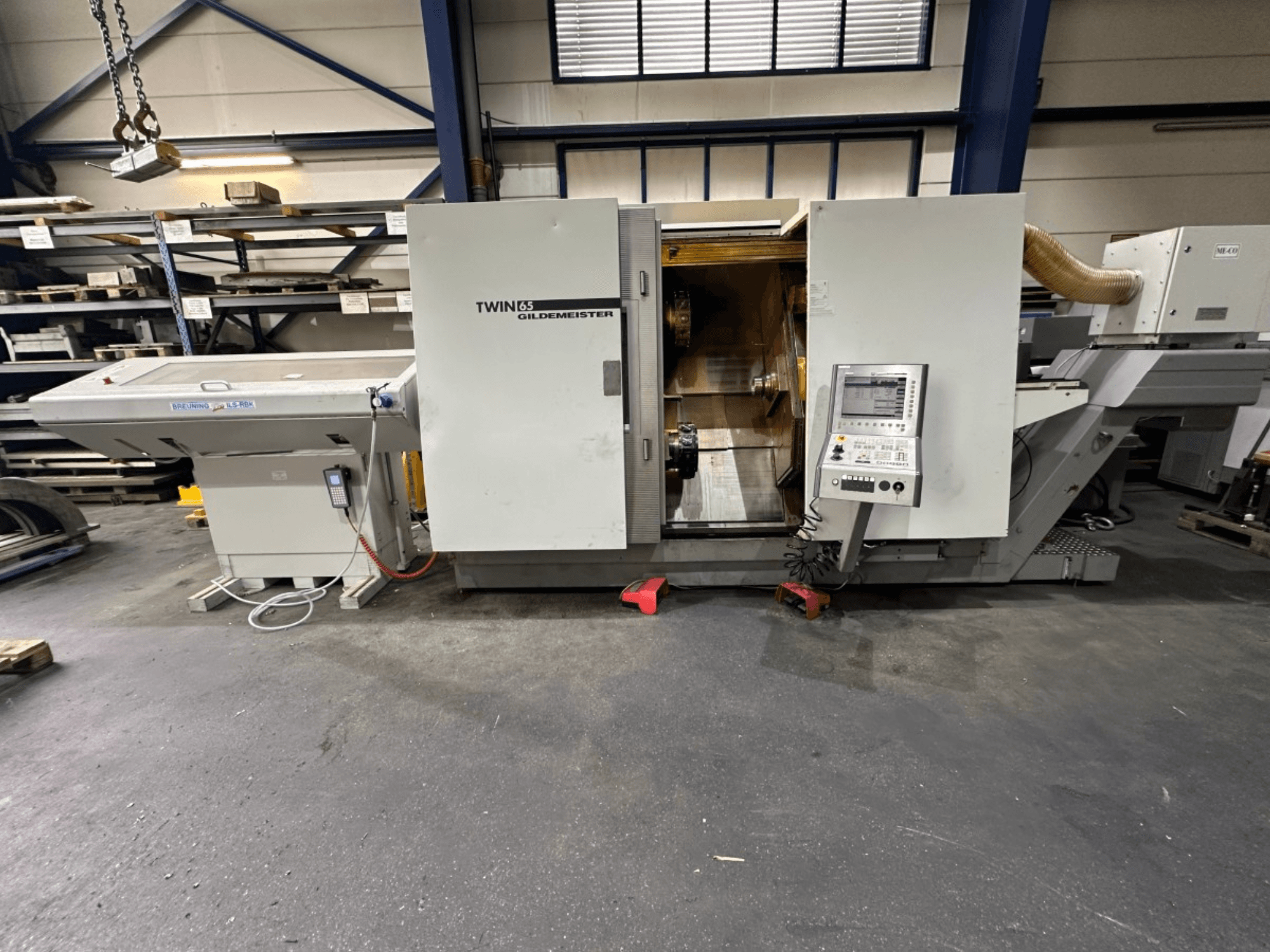

Gildemeister - TWIN 65DE-TUR-GIL-2006-00003

• Machine design: 60° slant bed

• Guideways: Roller guideways

• Max turning diameter: 250 mm

• Max turning diameter (standard): 120 mm

• Max turning length: 900 mm

• X1 travel (upper slide): 300 mm

• Z1 travel (upper slide): 650 mm

• Y1 travel (optional): ±40 mm

• X2 travel (lower slide): 180 mm

• Z2 travel (lower slide): 650 mm

• X3 travel (counter spindle): 175 mm

• Z3 travel (counter spindle): 670 mm

• Main spindle chuck size: 175 / 200 mm

• Maximum rod diameter (without reducing tubes): 62 / 65 mm

• Spindle bore diameter: 79 mm

• Spindle nose diameter: 170 mm

• Collet diameter: 66 mm

• Front bearing diameter: 120 mm

• Main spindle power (40/100% ED): 35 / 25 kW

• Main spindle speed range: up to 5000 rpm

• Main spindle torque (40/100% ED): 370 / 270 Nm

• Spindle drive type: AC motor with integrated spindle motor

• C-axis: Integrated for oriented stopping and contouring

• C-axis speed: 2000 rpm

• C-axis holding torque: 270 Nm

• Counter spindle power (40/100% ED): 26 / 21 kW

• Counter spindle speed range: up to 5000 rpm

• Counter spindle torque (40/100% ED): 290 / 230 Nm

• C-axis (counter spindle) speed: 2000 rpm

• C-axis (counter spindle) holding torque: 230 Nm

• Rapid traverse X/Z (slide 1): 30 / 30 m/min

• Feed force X/Z (slide 1): 4.0 / 7.0 kN

• Positioning resolution X/Z: 0.0005 mm

• Motor torque X/Z: 6 / 10.5 Nm

• Motor speed X/Z: 3000 rpm

• Ball screw pitch X/Z: 20x32 / 20x40 mm

• Rapid traverse X/Y/Z (with Y-axis): 30 / 15 / 30 m/min

• Feed force X/Y/Z: 4.0 / 4.0 / 7.0 kN

• Positioning resolution X/Y/Z: 0.0005 mm

• Motor torque X/Y/Z: 6 / 6 / 10.5 Nm

• Motor speed X/Y/Z: 3000 rpm

• Ball screw pitch X/Y/Z: 20x32 / 10x32 / 20x40 mm

• Rapid traverse X/Z (slide 2): 30 / 30 m/min

• Feed force X/Z (slide 2): 4.0 / 7.0 kN

• Positioning resolution X/Z (slide 2): 0.0005 mm

• Motor torque X/Z (slide 2): 6 / 10.5 Nm

• Motor speed X/Z (slide 2): 3000 rpm

• Ball screw pitch X/Z (slide 2): 20x32 / 20x40 mm

• Rapid traverse X/Z (counter spindle slide): 15 / 30 m/min

• Feed force X/Z (counter spindle slide): 4.0 / 7.0 kN

• Positioning resolution X/Z (counter spindle): 0.0005 mm

• Motor torque X/Z (counter spindle): 10.5 / 10.5 Nm

• Motor speed X/Z (counter spindle): 3000 rpm

• Ball screw pitch X/Z (counter spindle): 10x32 / 20x40 mm

• Number of tool stations: 12

• Tool holder: VDI 30

• Tool changer type: Turret

• Tool shank size (DIN 69880): 30 / 40 mm

• Number of driven tool stations: 12

• Driven tools: all 12 stations capable of driven tools

• Driven tool power (40/100% ED): 11.7 / 8.4 kW

• Driven tool torque (40/100% ED): 28 / 20 Nm

• Driven tool speed: up to 4000 rpm

• Tailstock stroke (optional): 300 mm

• Tailstock force: 150 / 630 daN

• Center size: MK 4

• Hydraulic tank capacity: 20 l

• Hydraulic pump power: 2.2 kW

• Hydraulic pressure max: 90 bar

• Clamping pressure main spindle: 80 bar

• Clamping pressure counter spindle: 70 bar

• Clamping pressure tailstock: 50 bar

• Coolant tank capacity: 250 l

• Coolant pump power: 1.7 kW

• Coolant flow rate at 6 bar: 20 l/min

• Electrical connection/total power: 65 kVA

• Operating voltage: 400 V

• Frequency: 50 Hz

• Fuse protection: 125 A

• Voltage tolerance: +6% / -10%

• Machine length: 5032 mm

• Machine depth: 3048 mm

• Machine height: 2445 mm

• Machine weight: 10000 kg

• Noise level during machining: 77 dB(A)

• Noise level at idle: 78 dB(A)

Additional equipment

• Touch probe

• Chip conveyor

• Internal coolant supply
