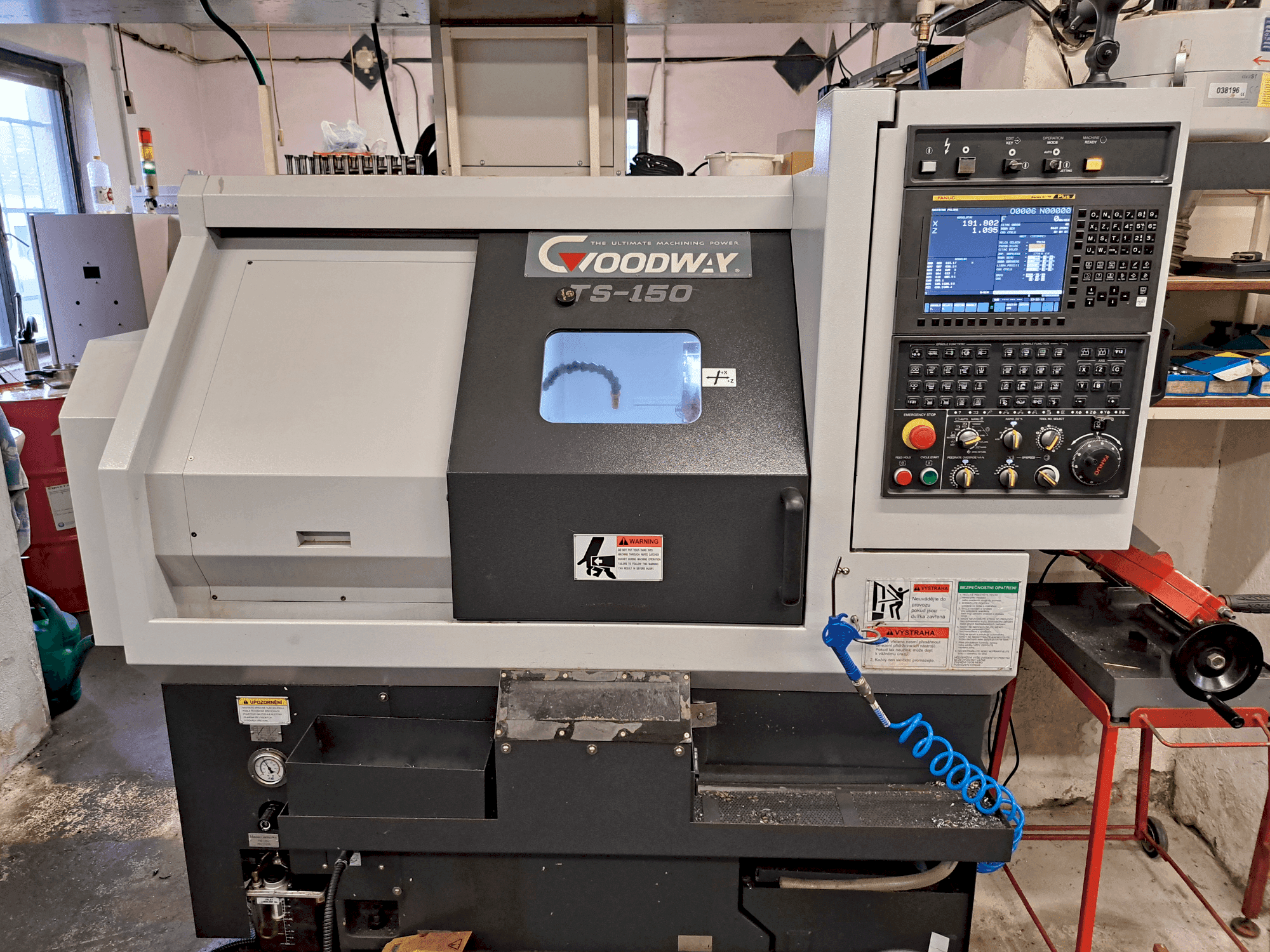

Front view of Goodway TS-150  machine

Goodway - TS-150CZ-TUR-GOO-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 2-axis Goodway TS-150 lathe was manufactured in 2021. It features a single spindle with a speed range up to 6000 rpm and is controlled by a Fanuc Oi-TF Plus unit. Its compact design, with dimensions of 1923mm in width, 1353mm in depth, and 1700mm in height, supports efficient space utilization in workshops. Additionally, it has a maximum piece weight capacity of 50 kg, enhancing its versatility in handling various workpieces. The Goodway TS-150 machine we have for sale offers precise control and efficient operation for turning projects. Contact us for more information about this lathe.

Overview

  • brand: Goodway
  • year: 2021
  • MODEL: TS-150
  • production hours: 1774
  • application type: Turning
  • Location: Czech Republic
  • machine type: Horizontal Turning Machine
  • availability: Sold
  • control unit brand: FANUC

Technical Information - Goodway TS-150

General Data

  • Measurements width: 1923 mm
  • Measurements depth: 1353 mm
  • Measurements height: 1700 mm
  • Machine weight: 1750 kg

Control Unit

  • Model: Oi-TF Plus
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/MIN
  • Number of axis: 12

Movement

  • X-AXIS Movement: 305 mm
  • X-AXIS Rapid traverse: 24 m/min
  • Z-AXIS Movement: 320 mm
  • Z-AXIS Rapid traverse: 24 m/min

Workpiece

  • Workpiece weight: 50 kg

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 8

Media

  • Power consumption: 15 kVA

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Swing over bed 330 mm
      • - Maximum turning diameter 200 mm
      • - Maximum turning length 290 mm
      • - Bar capacity 45 mm
      • - Spindle nose a2-5
      • - Chuck size 6” or 42 collet chuck
    • Qualitative Machine Benefits:
      • - Excellent condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
