➤ Used H.G. Ridder Waricut HWE 3020 2 2 D Retrofit For Sale

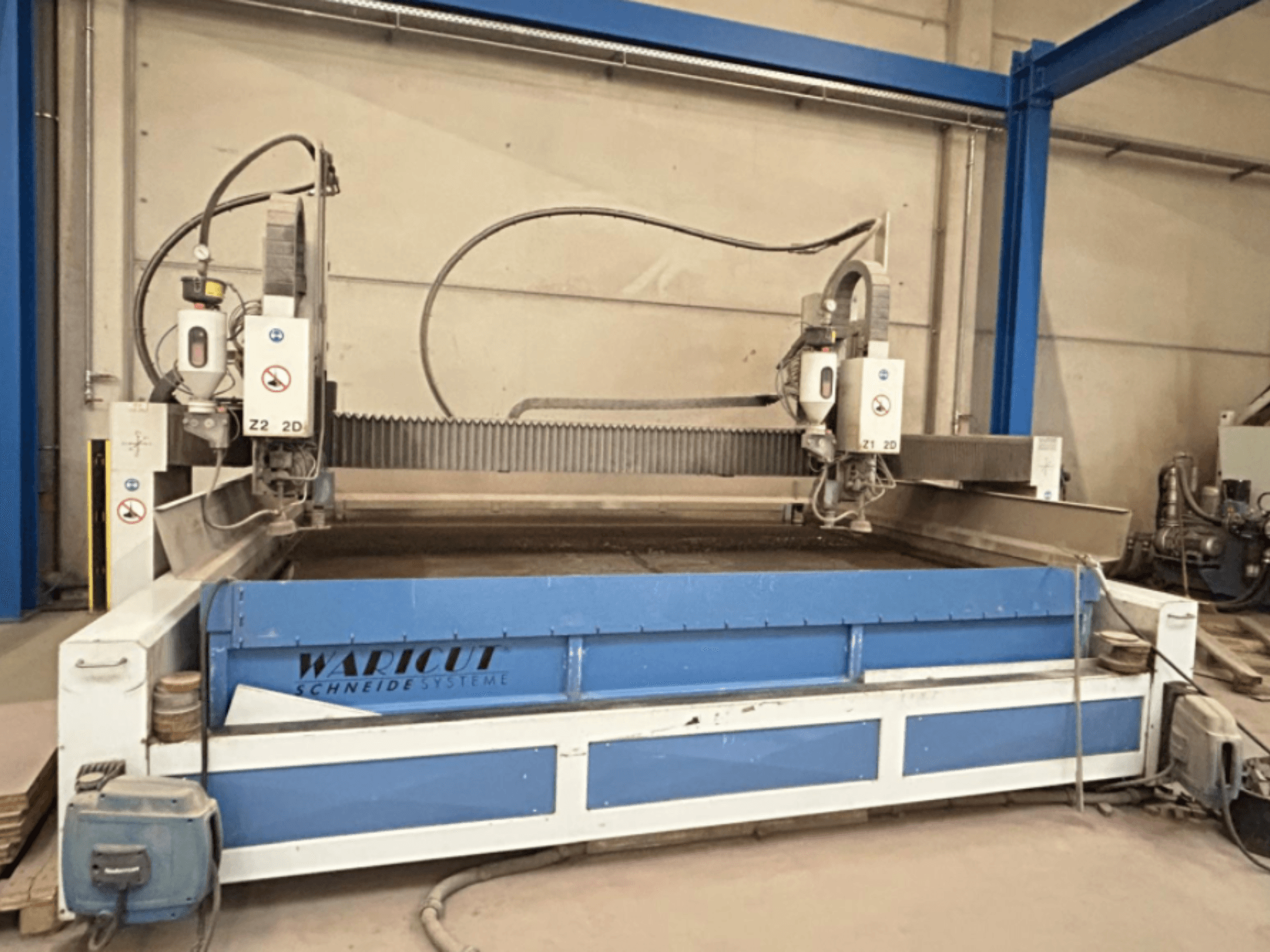

This H.G. Ridder Waricut HWE 3020 2 2 D Retrofit was manufactured in 2023. It features two cutting heads, each capable of a maximum travel of 2,450 mm. Key specifications include a travel range of 2,050 mm (X) and 3,050 mm (Y), with a Z-axis travel of 200 mm. It boasts a maximum linear speed of 20 m/min and an installed drive power of 45 kW. Contact us for more information about this waterjet cutting machine.

Overview

brand: H.G. Ridder
year: 2023
MODEL: Waricut HWE 3020 2 2 D Retrofit
application type: Cutting
Location: Germany
machine type: Waterjet Cutting Machine

Technical Information - H.G. Ridder Waricut HWE 3020 2 2 D Retrofit

Dimensions

Machine Height: 1600 mm
Machine Length: 1800 mm

Movement

X-axis Travel: 2050 mm
Y-axis Travel: 3050 mm
Z-axis Travel: 200 mm

Technical Specification

Spindle Power: 45 kW
Spindle Speed: 1800 RPM

Additional Information

Cutting heads: 2
Maximum travel per head with two cutting heads: 2,450 mm
Cutting head: Z-axis CNC, sD version
Manual cutting head adjustment (Y): ±45°
Manual cutting head adjustment (X): ±10°
Position uncertainty P: < ±0.050 mm
Mean position variation Ps: < ±0.030 mm
Maximum linear speed: 20 m/min
Minimum water pressure: 3 bar
Maximum water temperature: 40°C
Flow rate: 0.7–6.4 l/min
Design pressure: max. 3,800 bar

Additional equipment

Pump
Sludge removal system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
