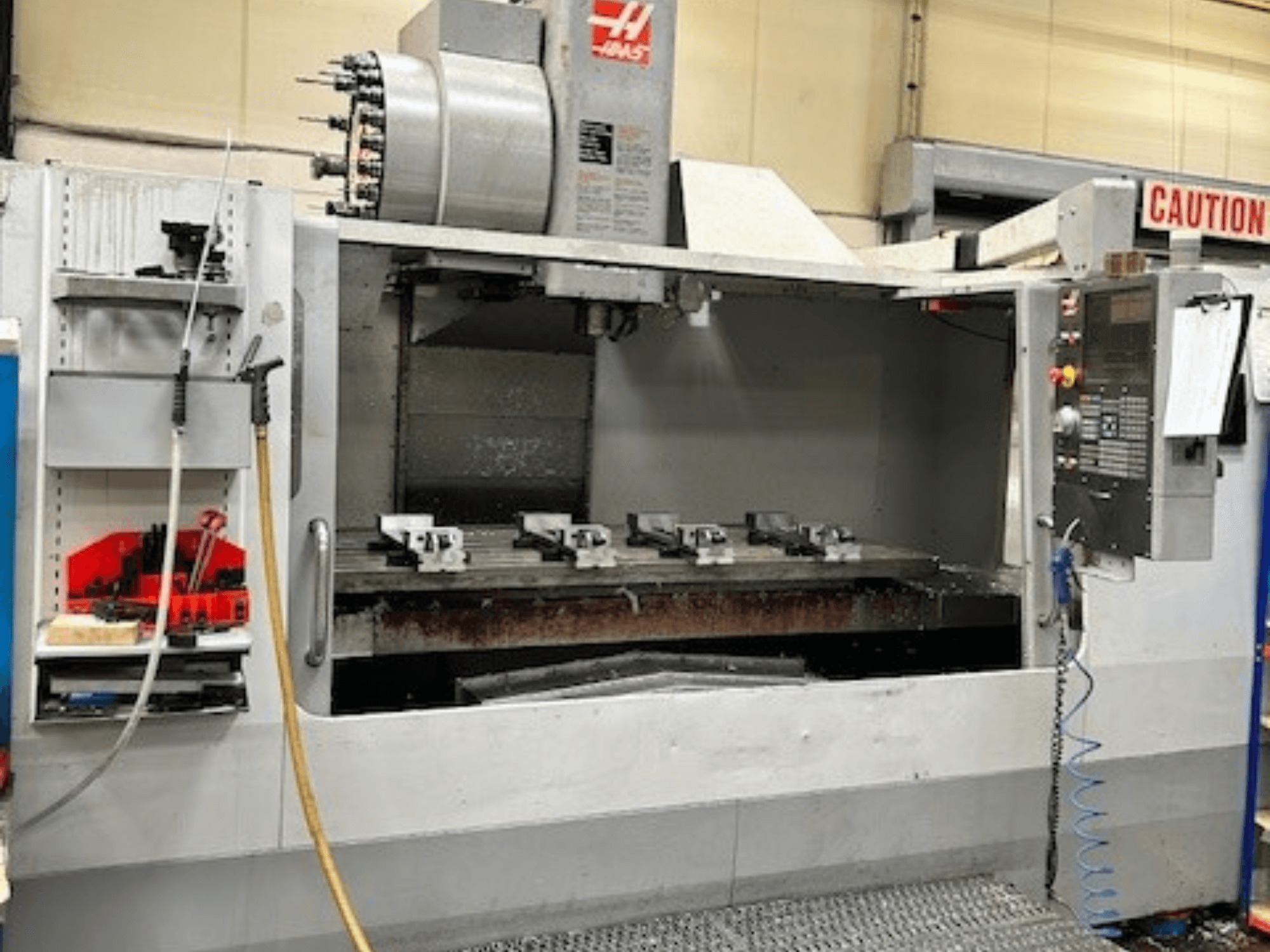

This 3-axis HAAS VF-9/40HE vertical machining centre was manufactured in 2008. It features an impressive X-axis travel of 2,134 mm, Y-axis travel of 1,016 mm, and Z-axis travel of 762 mm. The machine includes a robust table size of 2,134 × 914 mm and a maximum table load of 1,814 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-9/40HE machine we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2008
- MODEL: VF-9/40HE
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
Additional Information
Travels
Spindle nose to table: 102–864 mm
Table
Size: 2,134 × 914 mm
T-slot width: 15.9 mm
T-slot center distance: 125 mm
Feedrates
Rapid traverse (X): 15.2 m/min
Rapid traverse (Y, Z): 15.2 m/min
Max cutting feed: 12.7 m/min
Spindle
Max torque: 102 Nm @ 1,400 rpm
Bearings: ABEC Class 7
Electronic spindle orientation
Tool changer
Capacity: 24+1 standard (40+1 optional)
Tool type: CT40 standard / BT optional
Max tool diameter: 76 mm (all pockets filled); 152 mm (adjacent pockets empty)
Max tool length: —
Type: Electromechanical, cam-driven
Tool-to-tool: 2.8 s
Chip-to-chip: 3.6 s
Machine requirements
Power requirement: 14 kVA
Voltage: 200–250 VAC, 3-phase, 50–60 Hz
Air required: 113 L/min at 6.9 bar
Enclosure
Full steel enclosure
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
