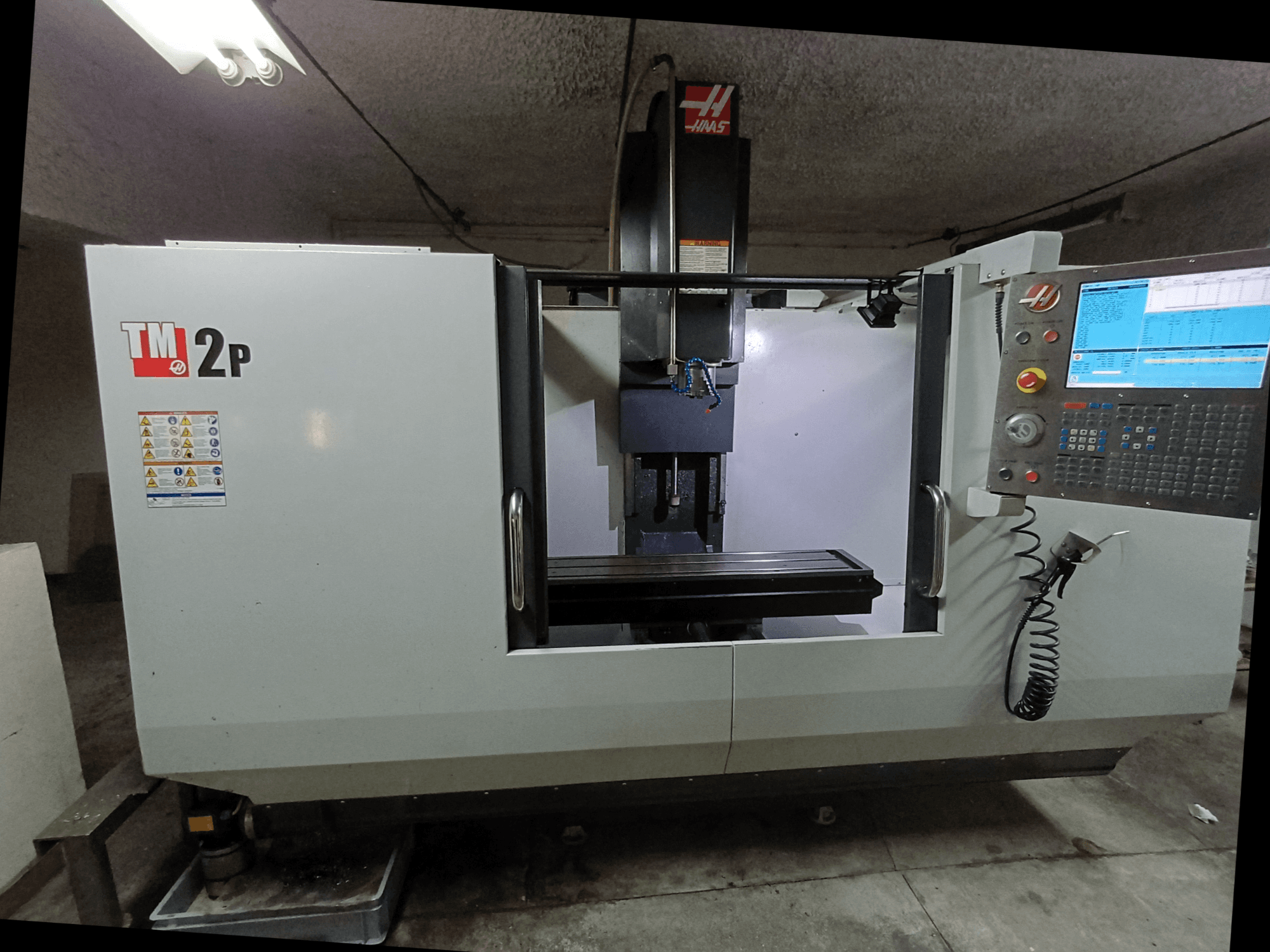

This 3-axis HAAS HAAS TM-2P was manufactured in 2013. It features an X-axis travel of 1016 mm, Y-axis travel of 406 mm, and Z-axis travel of 406 mm. The machine includes a table size of 1467 x 267 mm and a maximum table load of 159 kg. If you are looking to get high-quality machining capabilities, consider the HAAS HAAS TM-2P vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2013
- MODEL: HAAS TM-2P
- production hours: 989
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS HAAS TM-2P
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Weight: 2295 kg
- Table Length: 1467 mm
- Table Load: 159 kg
- Table Width: 267 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 406 mm
- Z-axis Travel: 406 mm
Technical Specification
- Spindle Power: 5.6 kW
- Spindle Speed: 6000 RPM
- Taper Size: ISO 40
- Tool Stations: 10
Additional Information
Max tool diameter: 89 mm
Positioning accuracy: 0.01 mm
Repeatability: 0.01 mm
Air pressure: 6.9 bar
Air consumption: 113 l/min
Power supply: 3 × 400 V, 50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
