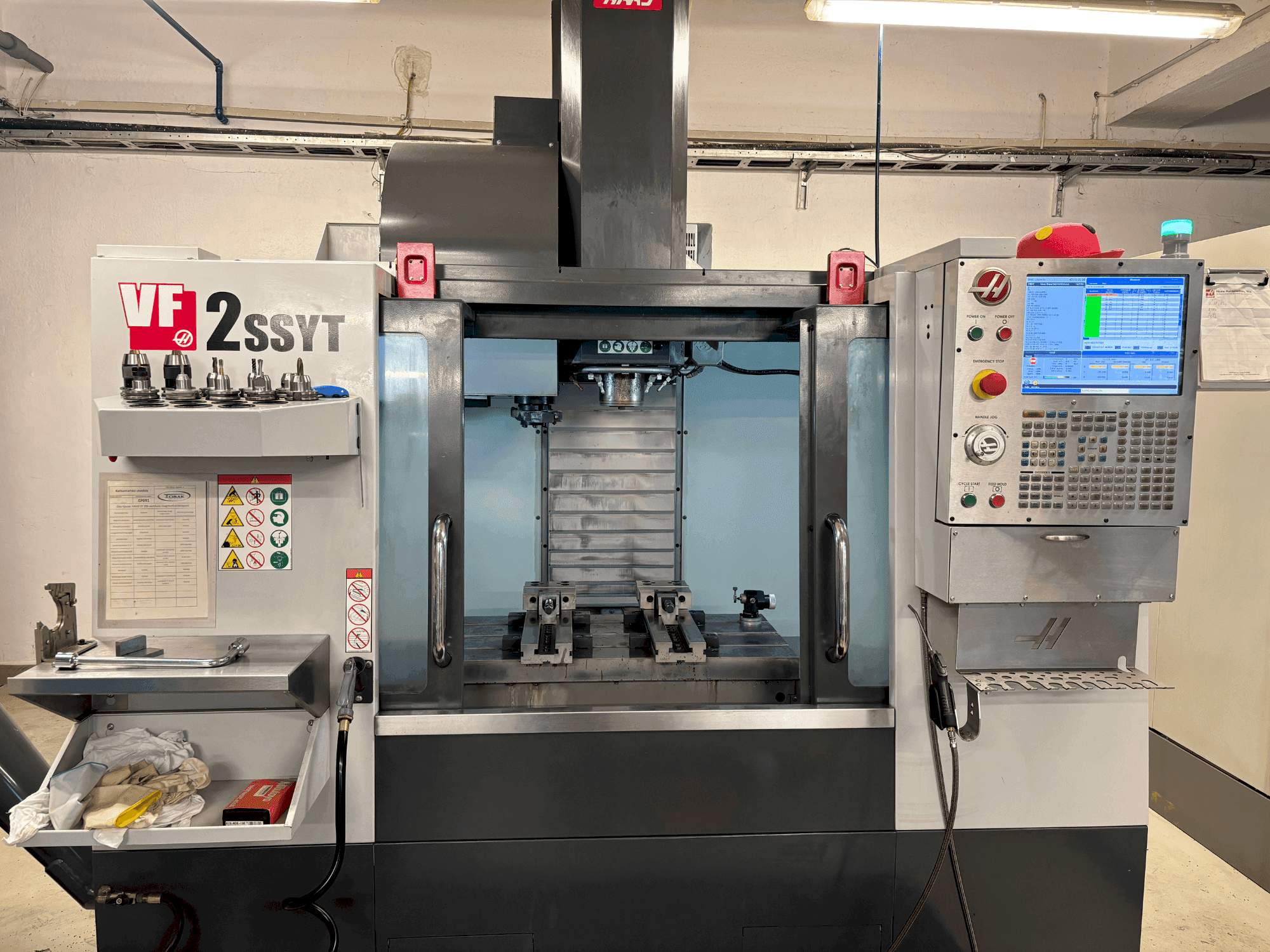

This 3-axis HAAS VF-2SSYT vertical machining centre was manufactured in 2016. It features a 30.0 hp spindle with a maximum speed of 12000 rpm and a torque of 122.0 Nm at 2000 rpm. The machine includes a 30+1 side-mount tool changer and supports a maximum table load of 680 kg. Rapid traverse rates reach up to 35.6 m/min. If you are looking to get high-quality milling capabilities, consider the HAAS VF-2SSYT machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2016
- MODEL: HAAS VF-2SSYT
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS HAAS VF-2SSYT
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Weight: 4500 kg
- Table Load: 680 kg
Movement
- Number of Axes: 3
- X-axis Travel: 762 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 508 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Air Requirement: 113 L/min at 6.9 bar
- Internal Air Hose: 3/8 in
- Air Coupling: 3/8 in
- Min. Air Pressure: 5.5 bar
- Coolant Capacity: 208 L
Machine Benefits
Technical Machine Benefits
- Spindle nose to table (max): 610 mm spindle nose to table (min): 102 mm
- Max torque: 122 nm at 2000 rpm
- Drive system: inline direct-drive
- Bearing lubrication: air / oil injection
- Cooling: liquid cooled
- Max cutting: 21. 2 m/min
- Tool change time (average): 1. 80 s
- T-slot width: 15. 90 mm to 16. 00 mm // t-slot center distance: 125 mm
- Time between tool changes (average): 2. 40 s
- 4th axis preparation
Extra Information
Dimensions: Dimensions of Machine (LxWxH): Domestic Pallet: 269 cm x 259 cm x 257 cm Export Pallet: 232 cm x 254 cm x 257 cm Weight (kg): Without SMTC: 3539 kg With 50+1 SMTC: 3675 kg With 70+1 SMTC: 4500 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
