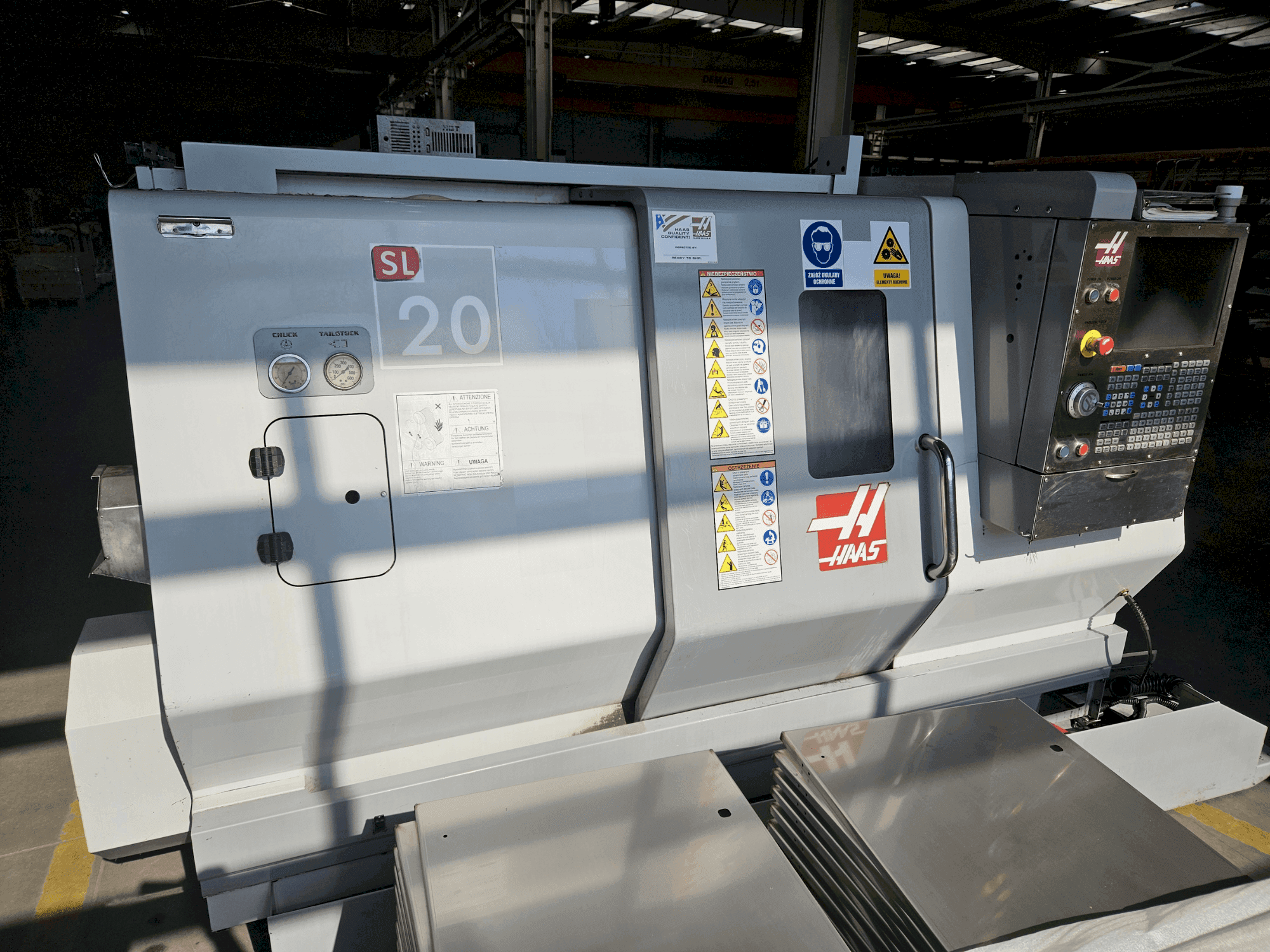

Front view of HAAS SL-20 TBHE  machine

HAAS - SL-20 TBHEPL-TUR-HAA-2009-00001

28,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS SL-20 TBHE was manufactured in 2009. A robust horizontal turning machine featuring a spindle speed of 4000 rpm and a powerful 14.9 kW motor. It supports a max turning diameter of 262 mm and a length of 508 mm. Equipped with a 10-tool turret and live tools, it's ideal for versatile machining tasks. Tailstock included for enhanced precision. Machine weight is 4800 kg. For more information about this horizontal turning machine, please reach out to us.

Overview

  • brand: HAAS
  • year: 2009
  • MODEL: SL-20 TBHE
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: HAAS

Technical Information - HAAS SL-20 TBHE

General Data

  • Measurements width: 1778 MM
  • Measurements depth: 3378 MM
  • Measurements height: 1778 MM
  • Machine weight: 4800 KG

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 4000 1/MIN
  • Spindle motor power: 14.9 kW
  • Spindle bore: 56 mm
  • Tool taper: A2-6

Movement

  • X-AXIS Movement: 214.6 mm
  • Z-AXIS Movement: 508 mm

    Additional Equipment

    • - Tailstock

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Turning length: 508 mm
        • - Max. Turning diameter: 262 mm
        • - Max. Turning diameter over bed: 584. 2 mm
        • - Turning diameter over cross slide: 241. 3 mm
        • - Distance between centers: 609. 6 mm
        • - Number of turret heads: 1
        • - Number of tools in turret: 10
        • - Number of live tools: 10

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
