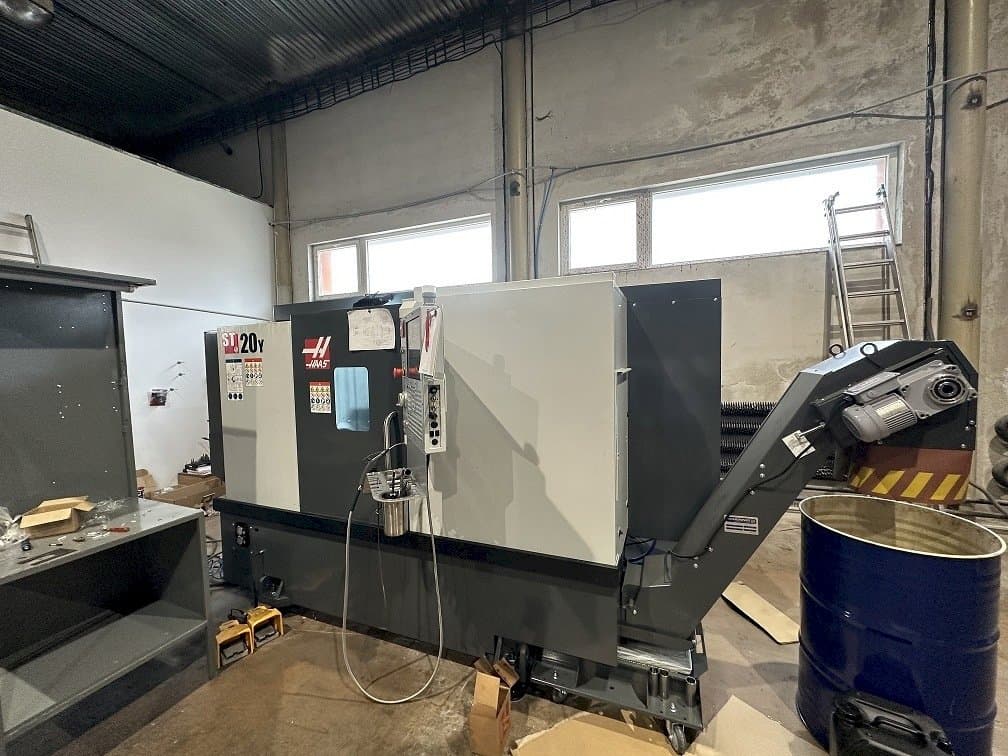

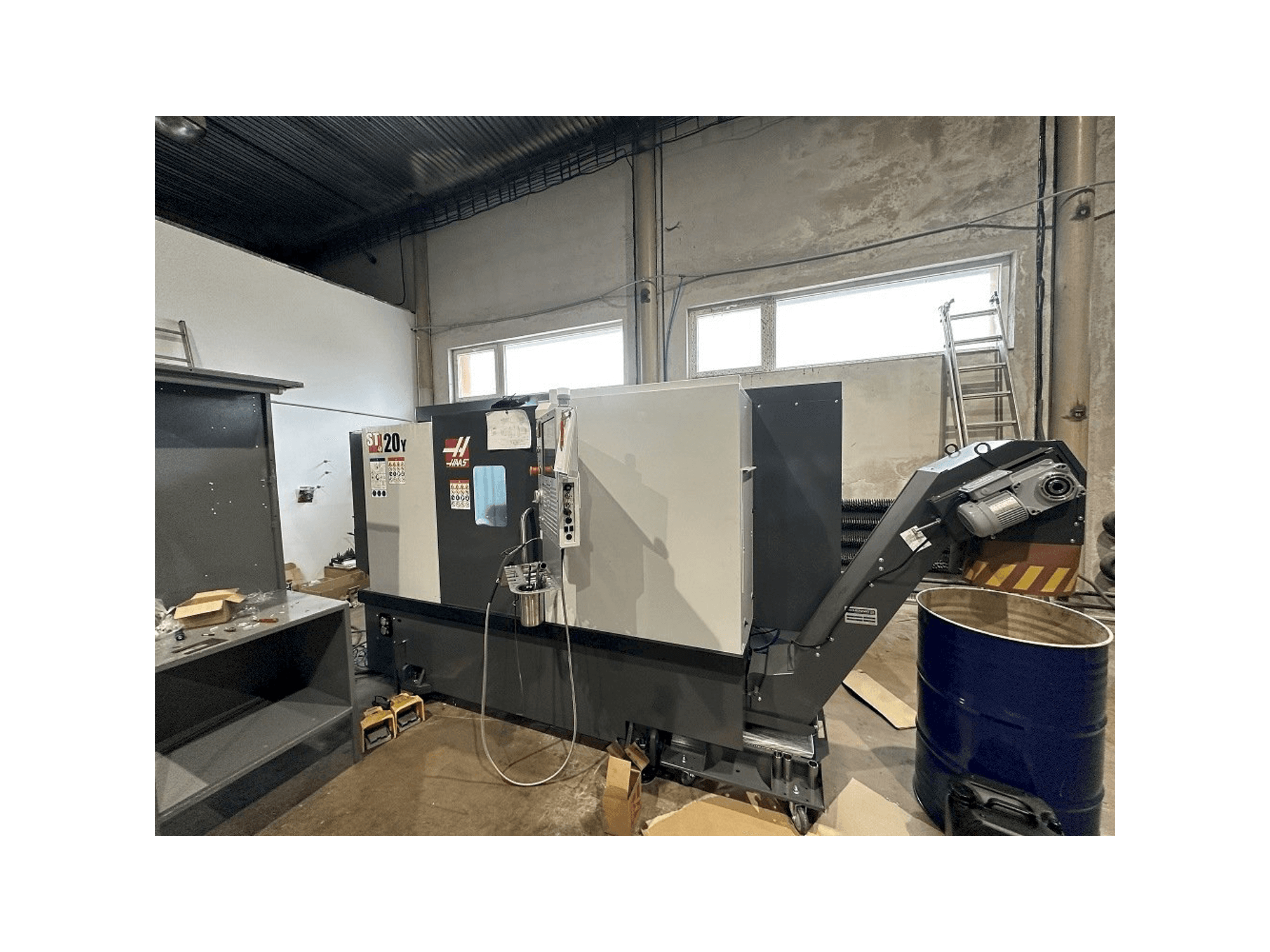

Front view of HAAS ST-20Y  machine

HAAS - ST-20YCZ-TUR-HAA-2023-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS ST-20Y Lathe was manufactured in the year 2023 in the United States and has 226 production hours, of which 29 are spindle hours. It is equipped with a HAAS control unit. The machine has a spindle speed of 4000 rpm.

Overview

  • brand: HAAS
  • year: 2023
  • MODEL: ST-20Y
  • production hours: 226
  • application type: Turning
  • Location: Czech Republic
  • machine type: Turn-Mill Centre
  • availability: Sold
  • control unit brand: Haas

Technical Information - HAAS ST-20Y

General Data

  • Measurements width: 3640 mm
  • Measurements depth: 2290 mm
  • Measurements height: 2340 mm
  • Machine weight: 4750 kg

Control Unit

  • Brand: Haas

Main drive

  • Number of spindles: 1
  • Spindle speed range: 4000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 213 mm
  • Y-AXIS Movement: +-51 MM
  • Z-AXIS Movement: 572 mm1

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12

    Additional Equipment

    • - Set of BMT45 tool holdesr incl. 2 driven

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Turning dieameter 533 mm
        • - Max. Cutting dia. 298 mm
        • - Chuck size 210 mm
        • - Bar diameter 63. 5 mm
        • - Rapid feedrates x/y/z 12/12/24 m/min
        • - Spindle motor power 14. 9 kw
        • - Spindle through hole dia. 88. 9 mm
        • - Spindle milling power (c axis) 3. 7 kw, speed 60 rpm, indexing 0. 01 deg.
        • - Coolant tank 208 litres
        • - Y axis, tool probe, hydraulic programmable tailstock
      • Qualitative Machine Benefits:
        • - Machine like new

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
