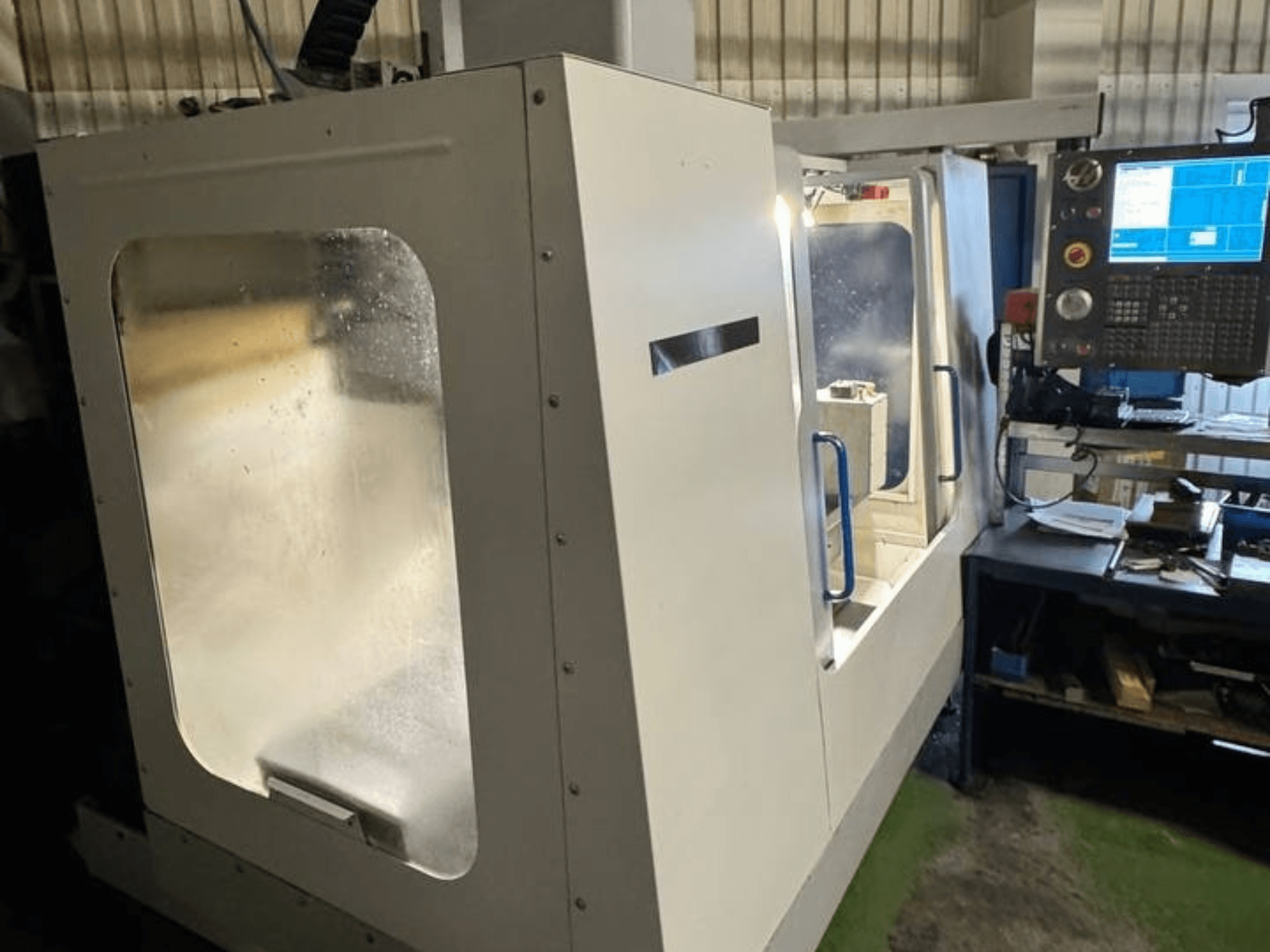

This 4-axis HAAS VCE 750 was manufactured in 2001. It features an X-axis travel of 750 mm, Y-axis travel of 400 mm, and Z-axis travel of 500 mm. The machine includes a table size of approximately 900 x 350 mm and a maximum table load of 700 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VCE 750 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2001
- MODEL: VCE 750
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VCE 750
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Height: 2700 mm
- Machine Length: 2400 mm
- Machine Weight: 5000 kg
- Machine Width: 2400 mm
- Table Load: 700 kg
Movement
- Number of Axes: 4
- X-axis Travel: 750 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 7500 RPM
- Taper Size: ISO 40
Additional Information
Table size: approx. 900 × 350 mm
Tool magazine: 20 positions (carousel)
Included options: 4th axis; through-spindle cooling
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
