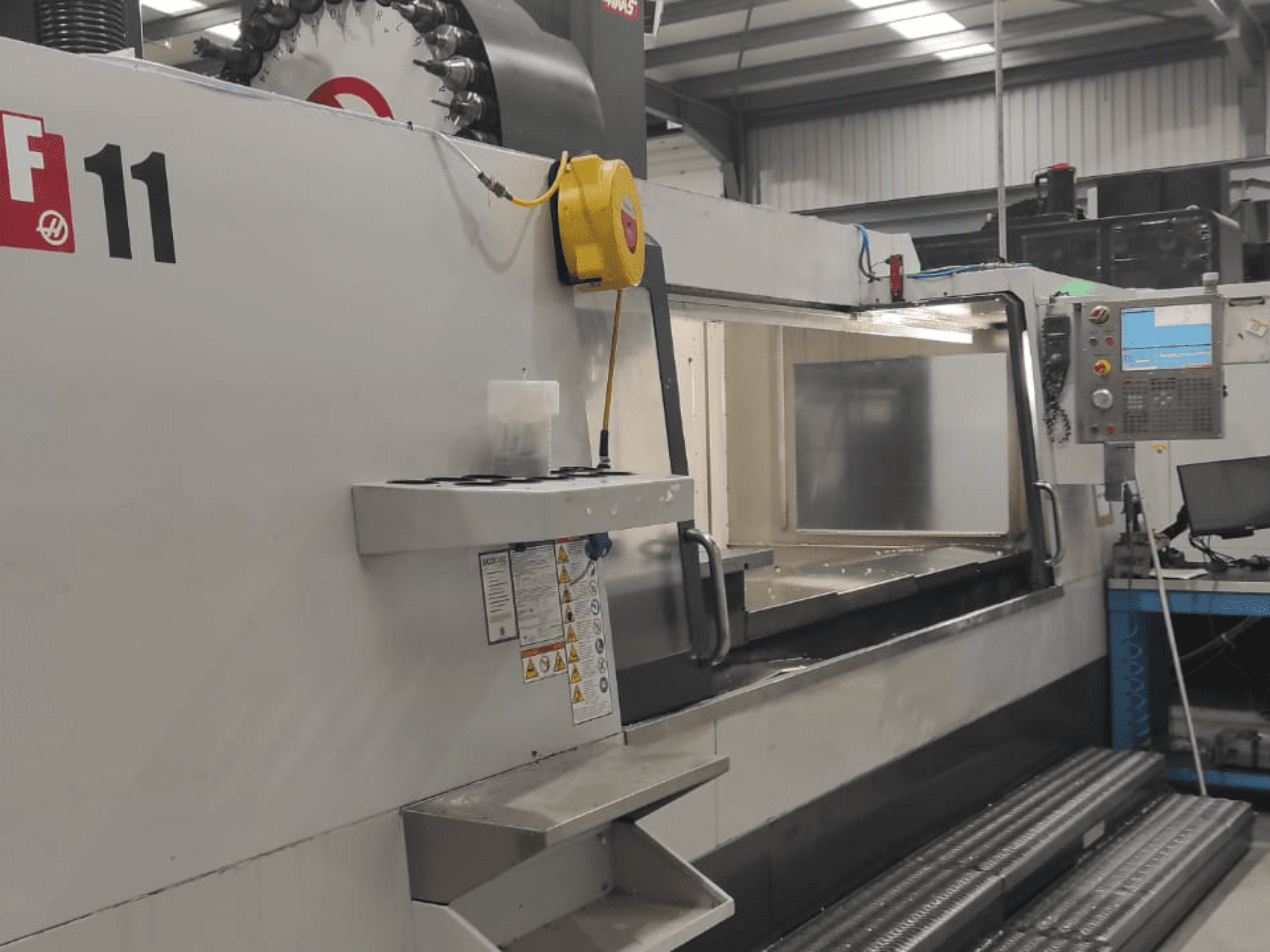

This 3-axis HAAS VF 11/50 was manufactured in 2011. It features a robust CNC control, a large table surface of 3048 × 711 mm, and can handle a maximum load of 1814 kg. With X, Y, Z travels of 3048 mm, 1016 mm, and 762 mm respectively, it offers extensive working range. The spindle can reach up to 7500 rpm, and it includes a 30+1 random tool changer. Consider the opportunity to buy this HAAS VF 11/50 vertical machining centre. Contact us for more information.
Overview
- brand: HAAS
- year: 2011
- MODEL: VF 11/50 (2011)
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF 11/50 (2011)
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Height: 3590 mm
- Machine Length: 7320 mm
- Machine Weight: 16914 kg
- Table Load: 1814 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3048 mm
- Y-axis Travel: 1016 mm
- Z-axis Travel: 762 mm
Technical Specification
- Max. Tool Weight: 13.6 kg
- Spindle Power: 22.4 kW
- Spindle Speed: 7500 RPM
Additional Information
Table Surface: 3048 × 711 mm
Table Height from Floor: 850 mm
Working Acceleration: 9.1 m/min – 15.2 m/min
Tool Change Type: Random 30+1
Magazine Positions: 254 mm
Maximum Diameter with Adjacent/Alternate Tools: 102 mm – 254 mm
Maximum Tool Length: 406 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
