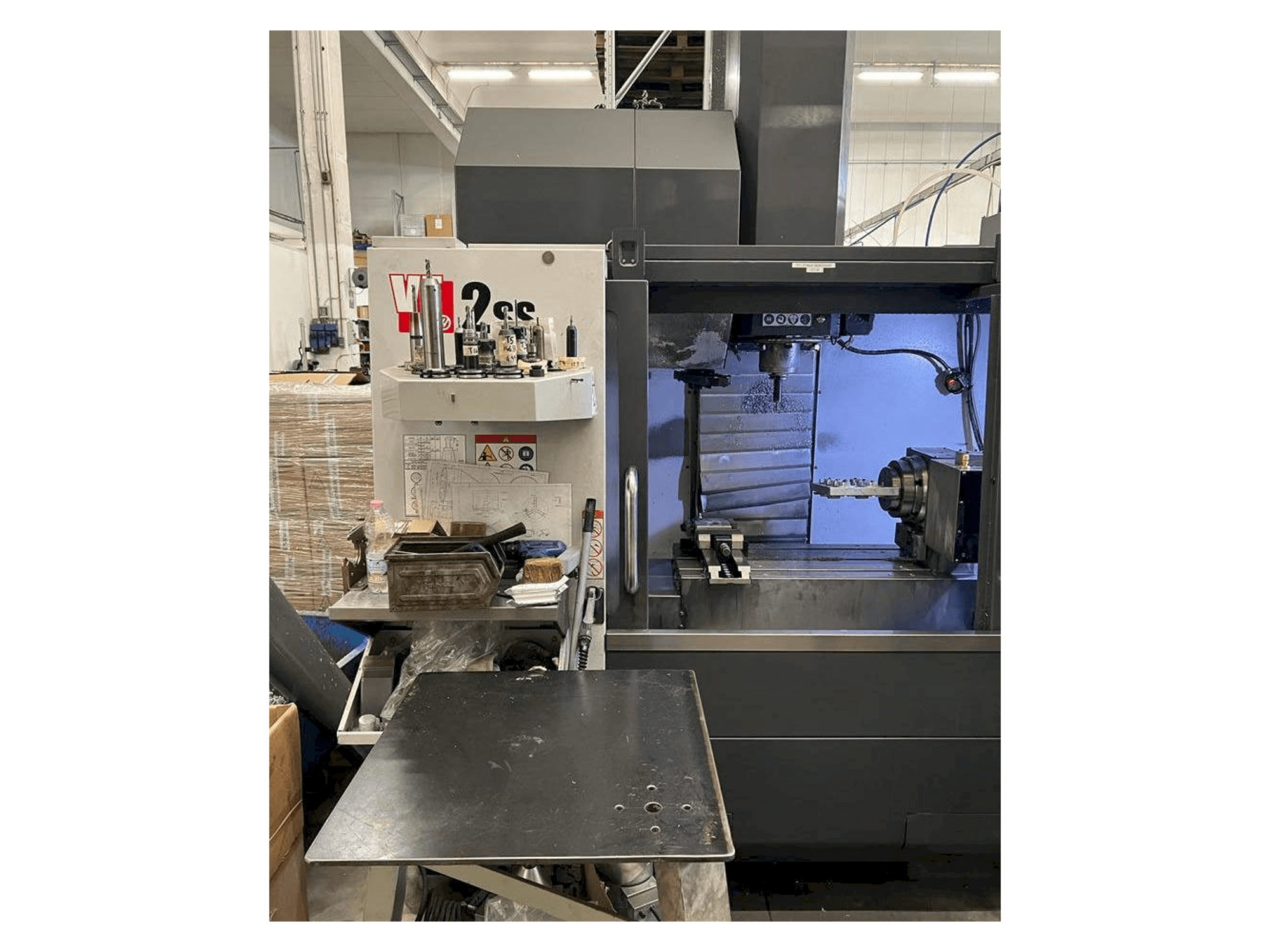

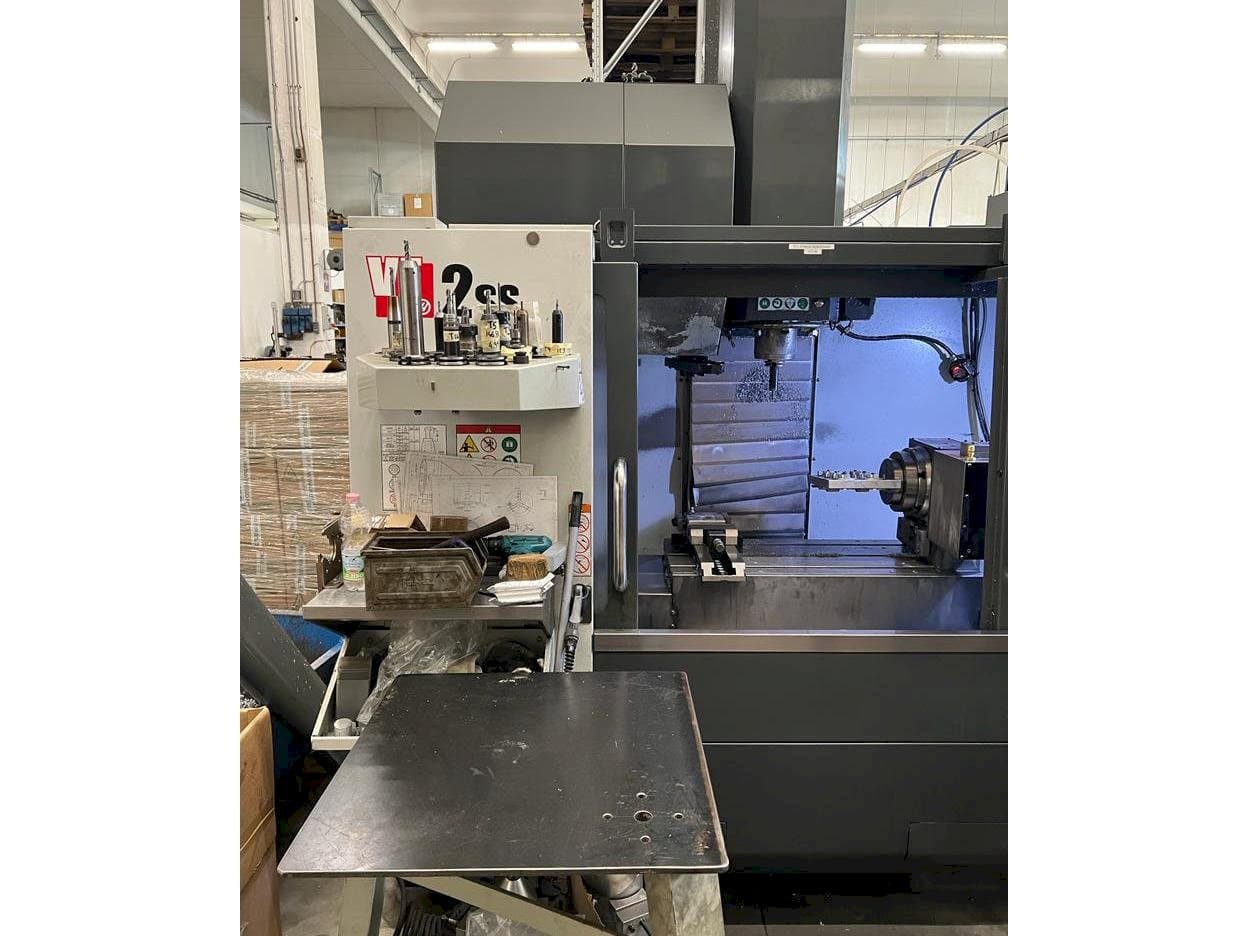

Front view of HAAS VF-2SS  machine

HAAS VF-2SS

HAAS - VF-2SS

2018

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS VF-2SS Vertical Machine Center was made in the year 2018 and has 6500 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 12000 rpm and an X/Y/Z axis travels 762 x 406 x 508 mm.

Overview

  • brand: HAAS
  • year: 2018
  • MODEL: VF-2SS
  • production hours: 6500
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Haas
  • GINDUMAC ID: IT-MIL-HAA-2018-00001

Technical Information

General Data

  • Measurements width: 2300 mm
  • Measurements depth: 2150 mm
  • Measurements height: 2450 mm

Control Unit

  • Brand: Haas

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22.4 KW

Movement

  • X-AXIS Movement: 762 mm
  • X-AXIS Rapid traverse: 35.6 m/min
  • Y-AXIS Movement: 406 mm
  • Y-AXIS Rapid traverse: 35.6 m/min
  • Z-AXIS Movement: 508 mm
  • Z-AXIS Rapid traverse: 35.6 m/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - From spindle nose to plate 102 mm
      • - Cone ct40(din 19871)
      • - Max. Cutting speed 20. 5 m/min
      • - Random tool change, tool change capacity 30+1 vertical
      • - Failure detection module power: si, wi-fi connection, cnc memory 32 gb, 15 " color monitor, usb/wi-fi data transmission
      • - Rigid tapping yes, ngc(new generation control) yes
      • - Passage of refr. Through the spindle 21 bar
      • - 4th axis drive and wiring, continuous 4th axis table hrt-210
      • - Intuitive probe system tast. Piece renishaw, intuitive probe system tast. Renishaw tool, intuitive program si system
      • - Yes: coordinate rotation system, macro variables and scale factors, coordinate rotation system, auger chip extractor
    • Qualitative Machine Benefits:
      • - Yes: air jet through tooling , high pressure auxiliary filter , programmable coolant nozzle,
      • - Internal and external service light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
