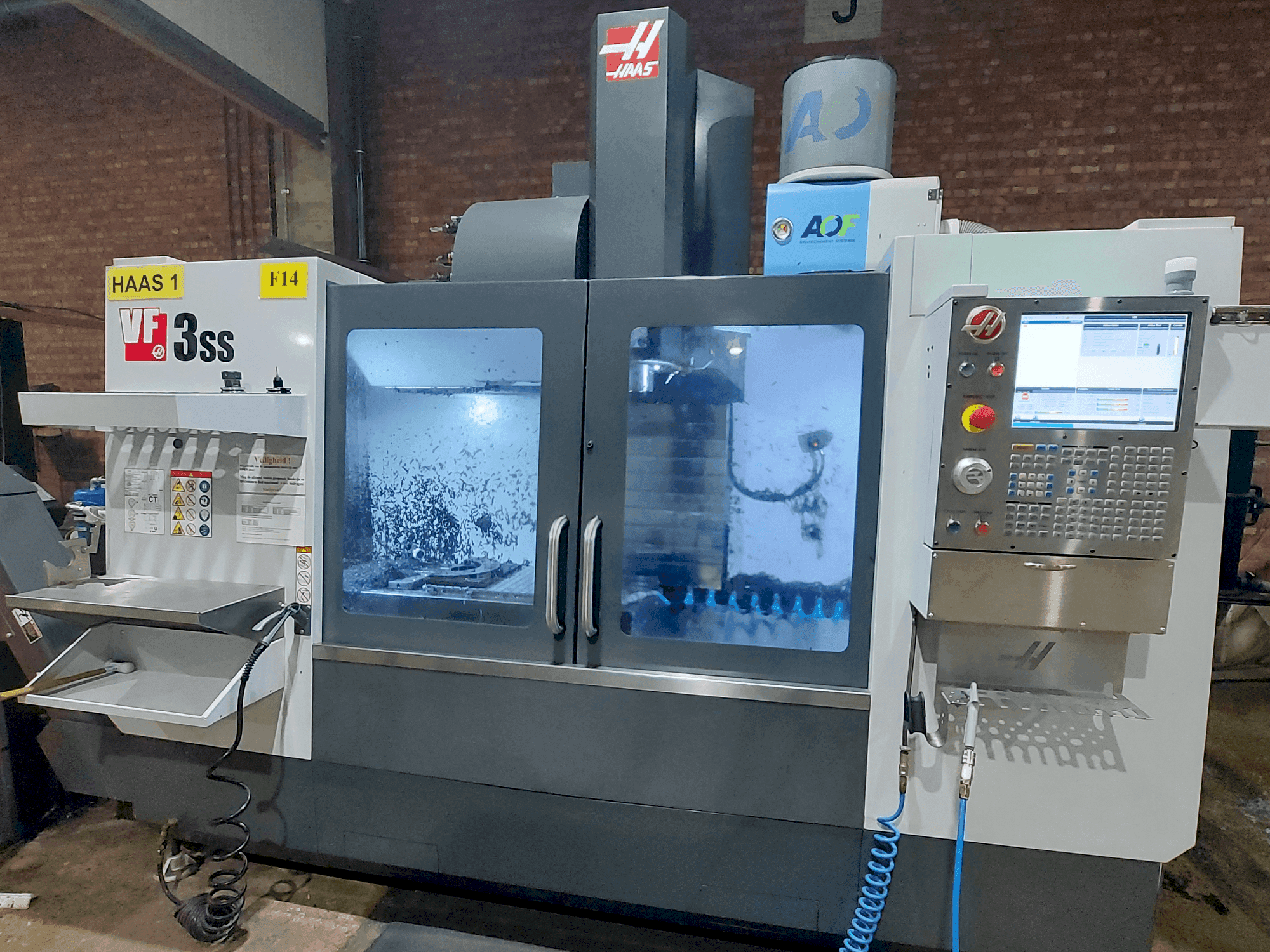

Front view of HAAS VF-3SS  machine

HAAS VF-3SS

HAAS - VF-3SS

2017

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS VF-3SS Vertical Machining center was manufactured in the year 2017. It is equipped with a HAAS control unit and has 3 axis (X = 1016 mm / Y = 508 mm / Z = 635 mm). The machine has a spindle speed of 15,000 rpm and comes with a Wireless Intuitive Probing System (RENISHAW), Chip & Coolant Management (through spindle coolant, through-tool air blast etc.) and Legacy Options (CT-style tool changer grippers, 24+1 side-mount tool changer etc.). It is still under powert and can be inspected on-site. See video for more details.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: VF-3SS
  • production hours: 17731
  • application type: Milling
  • Location: Belgium
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: HAAS
  • GINDUMAC ID: BE-MIL-HAA-2017-00001

Technical Information

General Data

  • Measurements width: 3870 mm
  • Measurements depth: 2510 mm
  • Measurements height: 2690 mm
  • Machine weight: 6124 kg

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 15,000 rpm 1/MIN

Movement

  • X-AXIS Movement: 1016 mm
  • Y-AXIS Movement: 508 mm
  • Z-AXIS Movement: 635 mm

Table

  • Outer length: 1219 mm
  • Outer width: 457 mm
  • TSlots size: 15.90 mm to 16.00 mm
  • Number of tslots: 5
  • Table load: 794 kg

Media

  • Main electronic connection: 440 V Phase 3
  • Chip conveyor: Yes
  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle: 15,000-rpm spindle
      • - Probing: wireless intuitive probing system (renishaw)
      • - Chip & coolant management: auxiliary coolant filter // through-spindle coolant // through-tool air blast // window air blast // 55-gallon coolant tank
      • - Legacy options: ct-style tool changer grippers // 24+1 side-mount tool changer // pull studs din 69-871 tsc // multi-auger chip conveyor-quad

    Extra information

    • - The Haas Control: Standard Program Memory, 1 GB // Ethernet Interface // HaasConnect: Remote monitoring // Media Display M-Code M130 // Rigid tapping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
