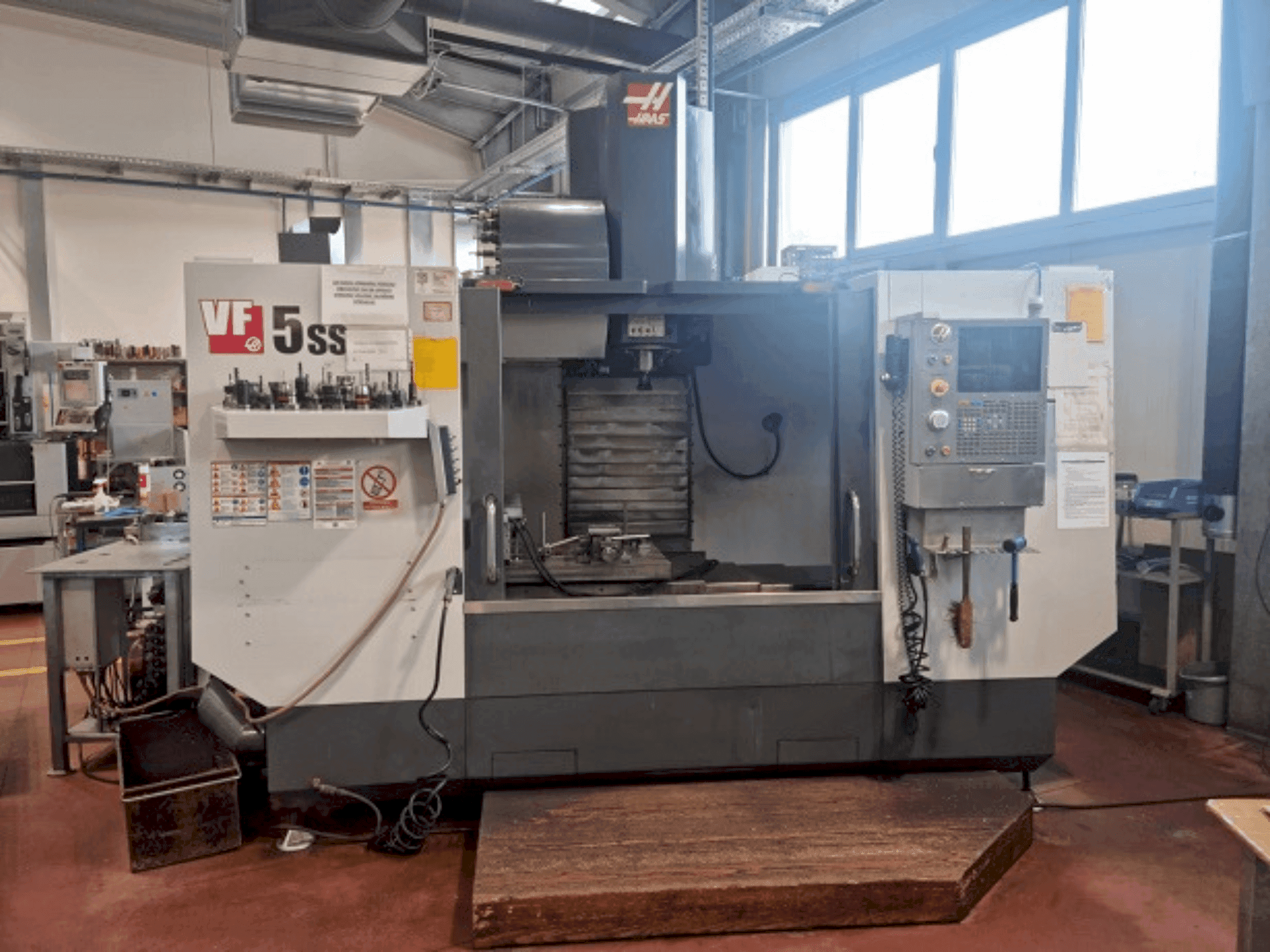

Front view of HAAS VF-5SS  machine

HAAS - VF-5SSHR-MIL-HAA-2014-00002

55,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS VF-5SS vertical machining centre, manufactured in 2014, features a 3-axis system with extensive travels of 1270 x 660 x 635 mm and rapid traverse rates of 30.5 m/min. The main spindle reaches up to 12,000 rpm with a power of 30 hp and utilizes a CT40 taper. It includes a quick-change 24 + 1 piece tool changer and a 360-liter coolant tank. Enhanced with synchronized tapping, through-spindle coolant at 21 bar, and preparations for 4th and 5th axes, this machine is equipped for high-speed, precision milling tasks. Buy this HAAS VF-5SS for efficient and precise operations. Reach out for further details regarding this vertical machining centre.

Overview

  • brand: HAAS
  • year: 2014
  • MODEL: VF-5SS
  • application type: Milling
  • Location: Croatia
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HAAS

Technical Information - HAAS VF-5SS

Control Unit

  • Brand: HAAS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Tool taper: CT40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1270 mm
  • Y-AXIS Movement: 660 mm
  • Z-AXIS Movement: 635 mm

Tools

  • Number of index: 24 + 1

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Synchronized tapping
    • - Through-spindle coolant, 21 bar
    • - Rotary device preparation for 4-axis
    • - Preparation for 4th and 5th axes
    • - Renishaw tool calibration probe
    • - Chip conveyor
    • - HSM-high-speed machining
    • - Electrical cabinet cooling device

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Enhanced machining speed and efficiency with high-speed spindle and rapid traverse rates.
        • - Capability for complex operations with preparations for 4th and 5th axes.
      • Qualitative Machine Benefits:
        • - Features a 15" color lcd monitor in the control unit
        • - High precision and reliability in tool measurement and machining accuracy, supported by renishaw probe.
        • - Effective thermal management and chip handling for prolonged machine operation and maintenance.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
