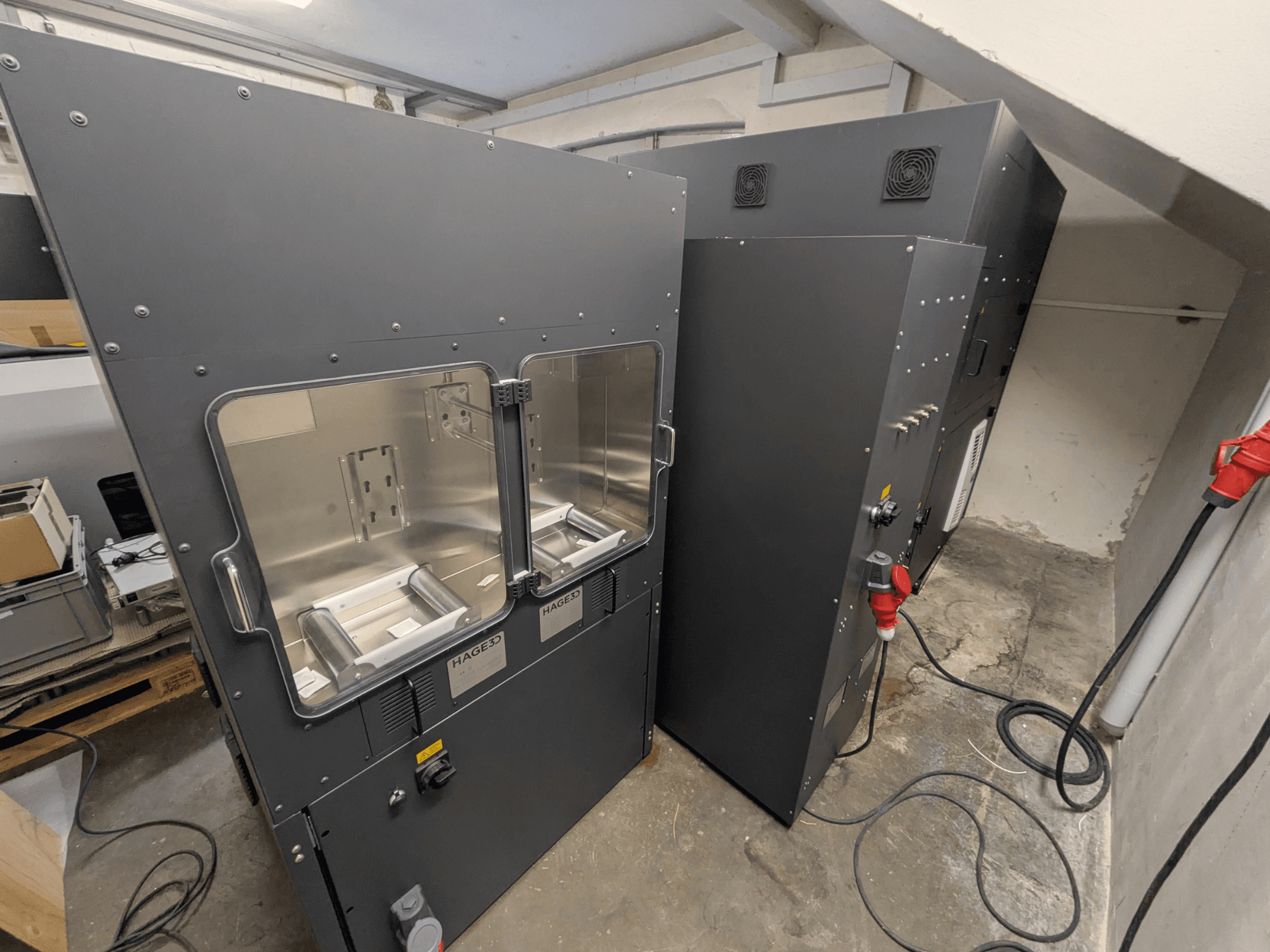

HAGE - 3D Mex-One-ADE-3DP-HAG-2024-00001

• Fused Filament Fabrication (FFF/FDM)

• Total Machine on Hours: 4,294 h

• Extruder 1 Hours: 1,914 h

• Extruder 2 Hours: 575 h

• Total Printing Hours: 2,489

• Heated Build Chamber: Up to 100 °C

• Heated Print Bed: Up to 180 °C

• Maximum Nozzle Temperature: 450 °C

• Layer Thickness: From 0.05 mm

• Traverse Speed (XY): Up to 250 mm/s

• Printing Speed: Up to 200 mm/s

• Build Rate: Up to 150 g/h

• Print Head: Water-cooled Dual DSD

• Extrusion Pressure: Adjustable

• Nozzle Diameter: 0.1–1.0 mm (0.4 mm standard)

• Inactive Nozzle Lift: Free stroke

• Part Cooling: Up to 4.8 m³/h

• Automatic Print Bed Calibration: Multi-point topography measurement

• Exhaust Air Purification: Activated carbon and HEPA filtration

• Engineering Plastics Capable: Yes

• CE Marked: Yes

Drying Chamber (DCU), 2024 (optional, not included)

• Internal Dimensions (X/Y/Z): 630 × 390 × 260 mm

• Capacity: 3 Movable Small Spools (Upper Section)

• Capacity: 2 Movable Large Spools (Lower Section)

• Maximum Drying Temperature: 100 °C

• Filament Feed: Direct Feeding from the Chamber with up to 4 Spools

• Automatic Air Exchange and Moisture Removal

• Tempering Chamber Internal Dimensions (X/Y/Z): 418 × 601 × 401 mm

• Loading Areas: 3 Loading Positions for 600 × 400 mm Sheets or Grids

• Maximum Tempering Temperature: 200 °C

• Simultaneous Operation of Drying and Tempering Chambers

• External Dimensions (X/Y/Z): 1,600 × 695 × 580 mm

• Total Weight: Approx. 100 kg

• Control: Siemens LOGO!

• Maximum Power Consumption: 6 kW

• Electrical Connection: Three-Phase AC 230 V, 16 A Fuse per Phase
