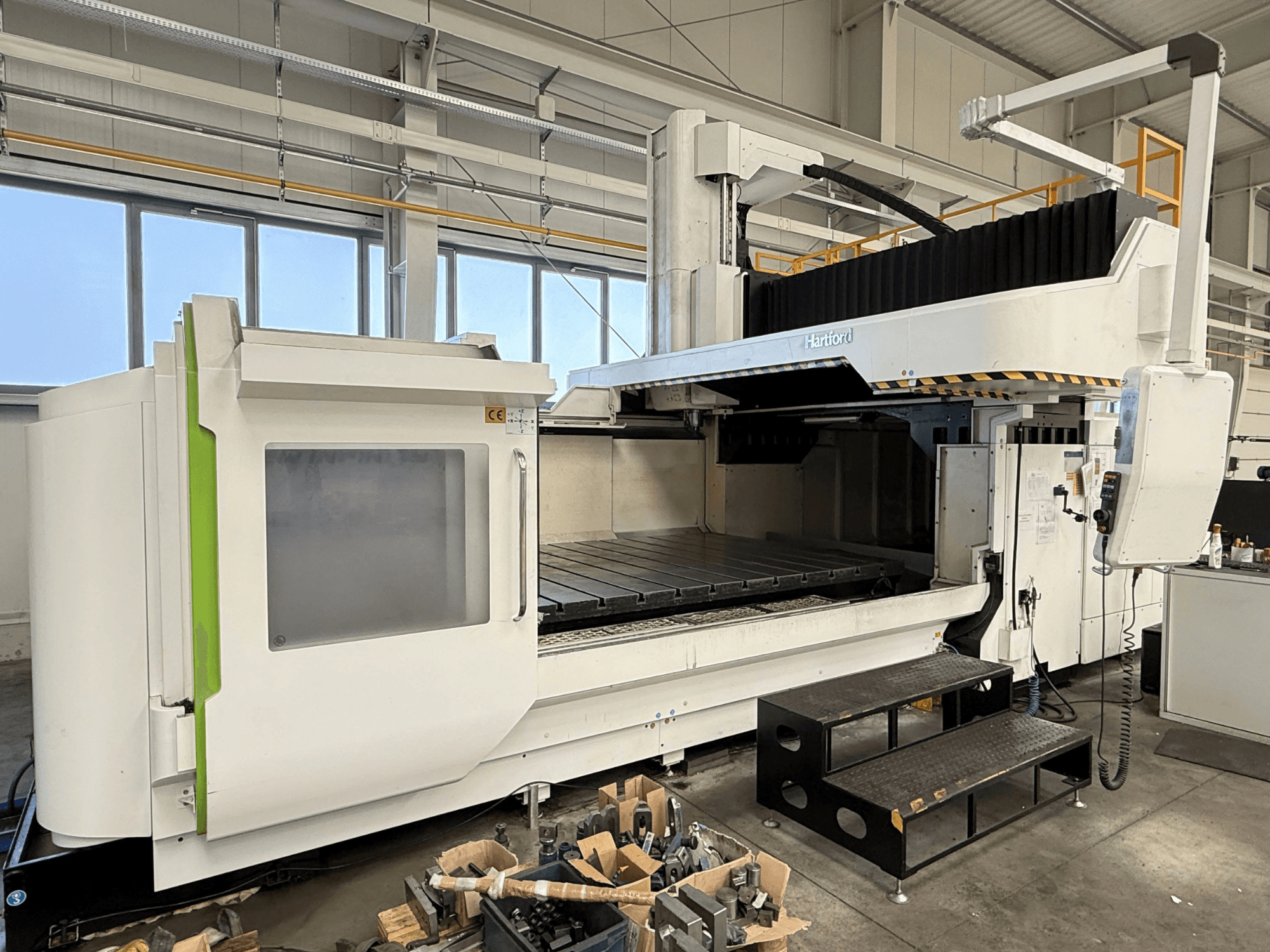

This 3-axis HARTFORD HSA-323 gantry milling machine was manufactured in 2021. It features a substantial table size of 3000 × 2200 mm and a maximum table load of 10,000 kg. The machine offers impressive travel distances with an X-axis of 3000 mm, Y-axis of 2300 mm, and Z-axis of 1000 mm. If you are looking to get high-quality milling capabilities, consider the HARTFORD HSA-323 machine we have for sale. Contact us for further details.
Overview
- brand: HARTFORD
- year: 2021
- MODEL: HSA-323
- production hours: 1779
- application type: Milling
- Location: Poland
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - HARTFORD HSA-323
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Height: 6800 mm
- Machine Length: 11000 mm
- Machine Weight: 32000 kg
- Machine Width: 13000 mm
- Table Length: 2200 mm
- Table Load: 10000 kg
- Table Width: 3000 mm
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 2300 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Positioning Accuracy: 18 µm
- Spindle Power: 30 kW
- Spindle Speed: 10000 RPM
- Taper Size: ISO 50
- Through-spindle Coolant: Yes
- Tool Stations: 32
Additional Information
Standard accessories:
Spindle air curtain
Air blast through spindle M53
Longitudinal travel (X axis): 3000 mm
Cross travel (Y axis): 2300 mm
X axis roller rail linear guide
Y axis roller rail linear guide
Z axis FOUR roller rail linear guide
Operation panel pendent type
Table side air blast M50 control
Lubrication system
Screw type chip conveyor 0,37 kW × 2 ea
Tool package
Foundation bolts, concrete
Automatic power OFF
Optional accessories included in price:
Controller Heidenhain TNC640
19" touch screen
Arm type tool magazine: 32 pcs.
Direct Drive Spindle 10.000 rpm, 30 kW, 191 Nm / S6-60% (35 kW, 222,9 Nm / S6-40%)
Tool shank DIN69871A #50
Spindle cooler HBO-750
Coolant through spindle: 20 bar
Vertical travel: 780 mm (S = 200–980 mm)
Z axis hydraulic counterweight
Full enclosure splash guard & top cover
Link type chip conveyor
Coolant and air guns
XYZ axis linear scale system Heidenhain
Remote manual pulse generatorAir conditioning for electrical cabinet HA-240FS
CE mark
Smart Lubrication (Heidenhain)
Helical interpolation
Workpiece probe Heidenhain TS-460
Touch probe Heidenhain TT-160
Graphic display
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
