- HARTFORD MVP-11 3-axis Vertical Machining Centre

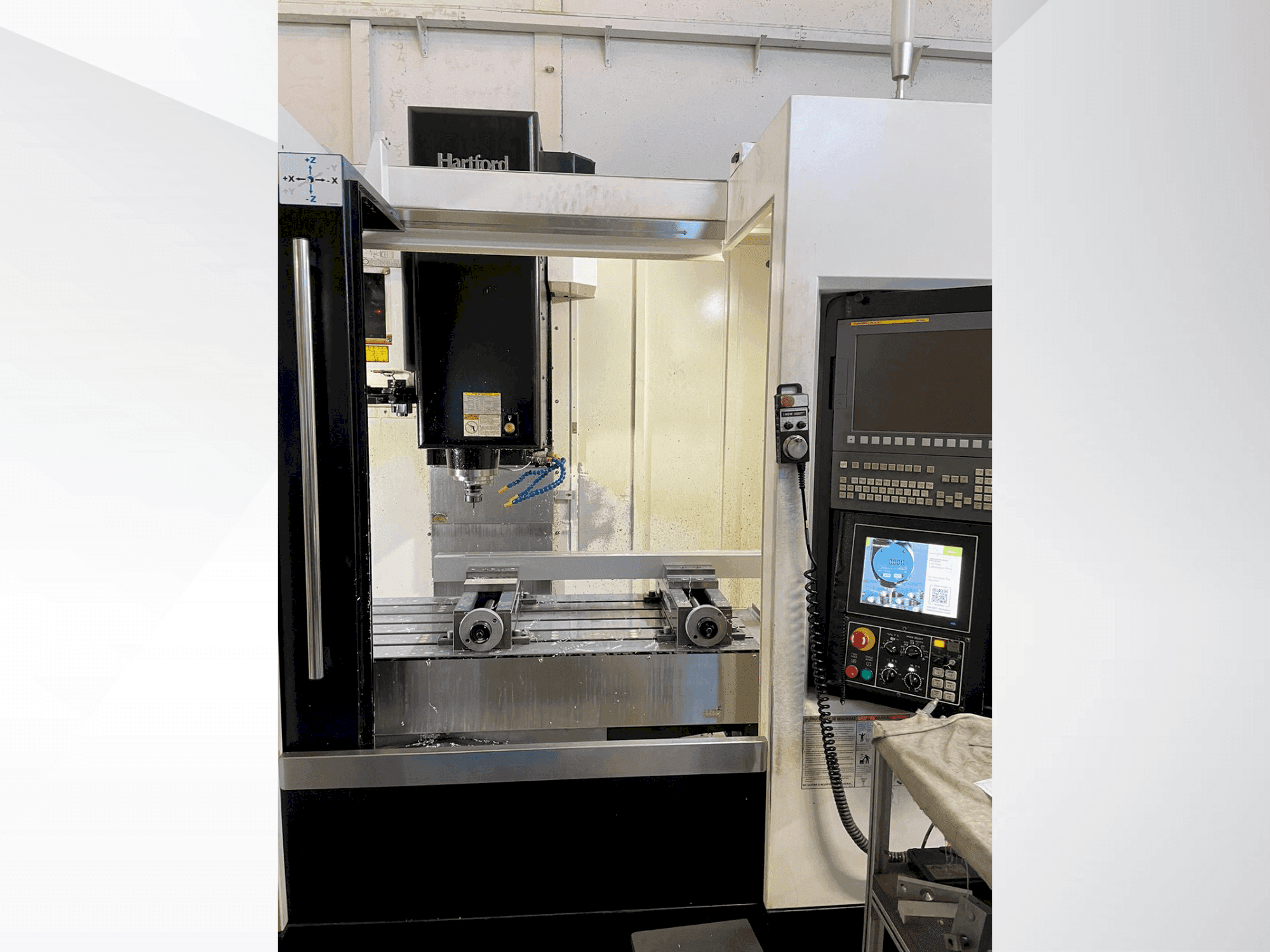

This HARTFORD MVP-11 3-axis Vertical Machining Centre was manufactured in 2018 in Taiwan. It is equipped with a 12000 rpm spindle with BT40 tool taper. The automatic tool changer has 24 slots and can process a max. tool weight of 6 kg, a max. tool size of diameter 75 mm and 300 mm length (random tool selection). This 3-axis machine (X = 1200 mm / Y = 600 mm / Z = 630 mm) has a working surface of 1060 x 600 mm with 5 t-slots of 10mm (100 mm pitch) and max. table load of 800 kg. The machine is still under power. Contact us at any time if you have further questions!
Overview
- brand: HARTFORD
- year: 2018
- MODEL: MVP-11
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: HARTROL-FANUC
Technical Information - HARTFORD MVP-11
Control Unit
- Brand: HARTROL-FANUC
- Model: AI 100
Main drive
- Spindle speed range: 12000 1/MIN
- Tool taper: BT 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1020 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 630 mm
Table
- Outer length: 1060 mm
- Outer width: 600 mm
- TSlots size: 10 mm
- Number of tslots: 5
- Distance between: 100 mm
- Table load: 800 kg
Tools
- Slots in storage: 24
- Max weight: 6 kg
- Max tool diameter: 75 mm
- Max tool length: 300 mm
- Type of tool holder: BT 40
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
