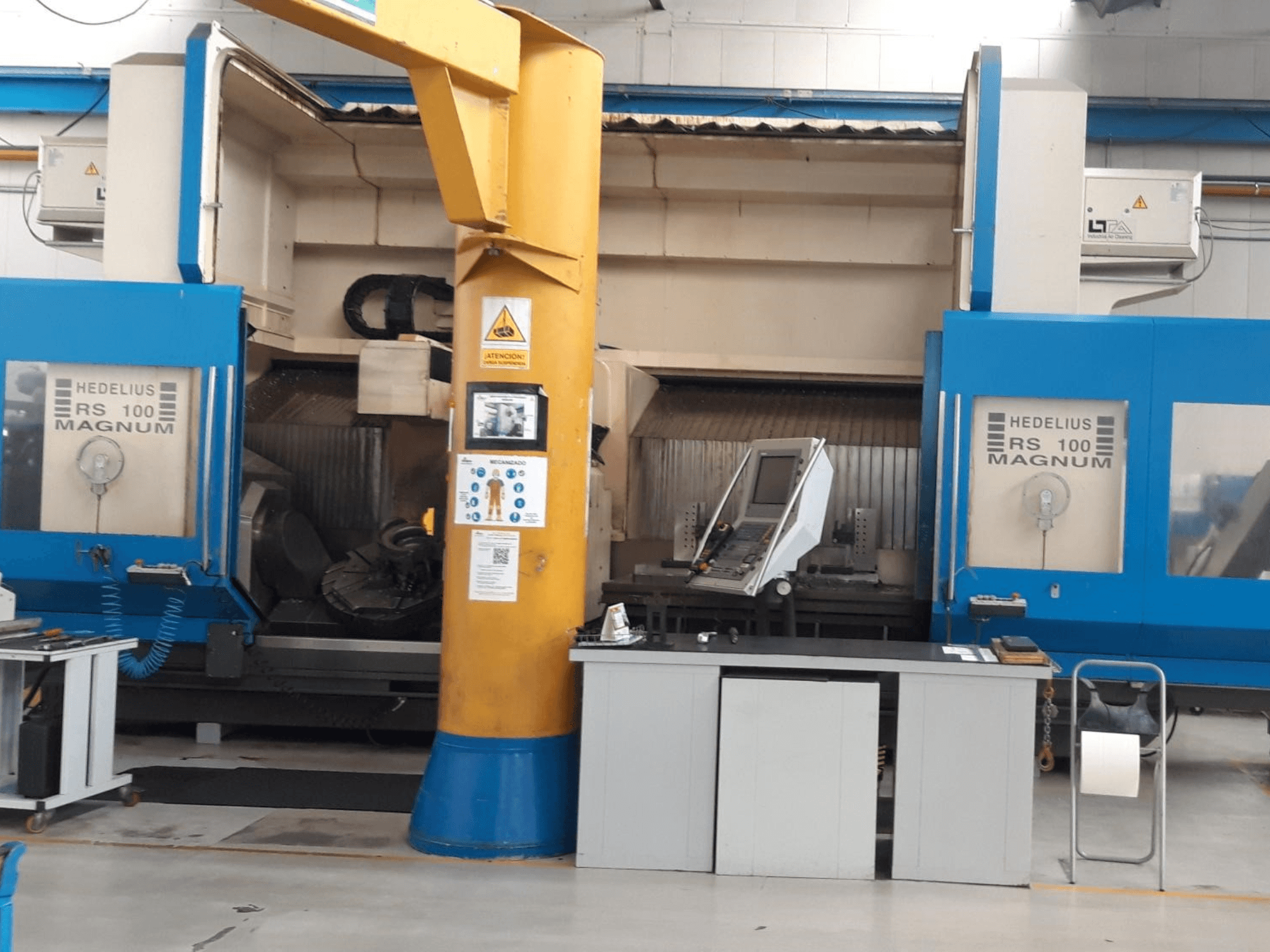

This 5-axis HEDELIUS RS 100 K MAGNUM was manufactured in 2009. It features a travel range of 3500 x 1000 x 770 mm and a rotary-tilting table with a 1200 kg max workpiece weight. The spindle operates at speeds up to 6000 rpm, and the machine includes a 50-tool capacity magazine. If you are looking to get high-quality milling capabilities, consider the HEDELIUS RS 100 K MAGNUM machine we have for sale. Contact us for more information.
Overview
- brand: HEDELIUS
- year: 2009
- MODEL: RS 100 K MAGNUM
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - HEDELIUS RS 100 K MAGNUM
Dimensions
- Machine Weight: 29000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 3500 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 770 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Rotary-tilting table travel (X/Y/Z): 1000 / 1000 / 770 mm
Distance spindle nose to table:
Fixed table: 120–890 mm
Rotary/tilting table: 175–945 mm
Table surface:
Fixed table: 2100 × 1000 mm
Rotary/tilting table: 1000 × 800 mm
Table height from floor:
Fixed table: 950 mm
Rotary/tilting table: 895 mm
Max. workpiece weight:
Fixed table: 2000 kg
Rotary/tilting table: 1200 kg
Spindle diameter (front bearing): 90 mm
Tool taper: MAS 403-1982 BT50
Feed rates (X/Y/Z): 0–30,000 mm/min
Max. feed force: 15,000 N
Tool magazine capacity: 50 tools
Max. tool diameter: 100 mm
Max. drill diameter: 70 mm
Power supply: 40 kVA, 50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
