HELLER - MCH 350DE-MIL-HEL-2006-00002

Name: HELLER MCH 350
Brand: HELLER
SKU: DE-MIL-HEL-2006-00002
Price: 133000 EUR
Availability: InStock

133,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HELLER MCH 350 For sale | gindumac.com

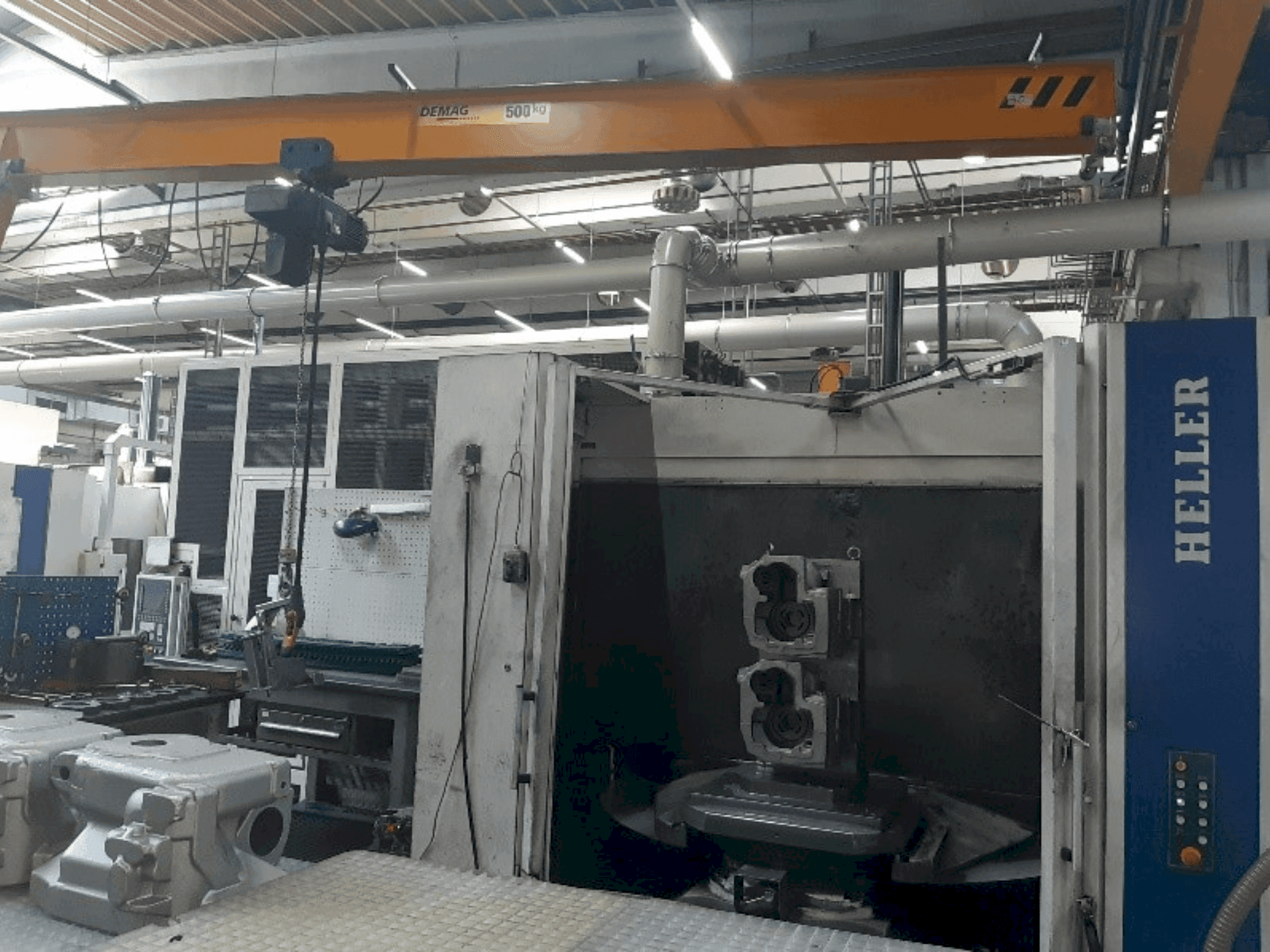

This 4-axis HELLER MCH 350 was manufactured in 2006, featuring a Siemens 840D PL control system and a robust spindle capable of 7,000 rpm. It includes a HSK 100 tool clamping system and a large magazine with 234 slots. The machine offers a substantial working area of 1250 x 1000 x 1000 mm and a pallet size of 800 x 800 mm. For more information about this machining centre, please reach out to us.

Overview

brand: HELLER
year: 2006
MODEL: MCH 350
production hours: 48659
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER MCH 350

Control Unit

Control Brand: SIEMENS
Control Model: 840D PL

Dimensions

Table Length: 800 mm
Table Width: 800 mm

Movement

Number of Axes: 4
X-axis Travel: 1250 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Power: 43 kW
Spindle Speed: 7000 RPM
Taper Size: HSK 100
Through-spindle Coolant: Yes

Additional Information

Additional equipment

KNOLL Coolant System, VRF 250, IKZ 50 bar
Rotary table with 360,000° x 0.001° positioning
Infrared receiver for measuring probe (BLUM)
Multi-spindle head mount
Quick drill breakage control (SBBK)
Code chip for tools runtime and quantity recording
Integrated process monitoring (IPM)
Disk blowing device for operator door
Evacuation strategy

Machine Benefits

Qualitative Machine Benefits

Comprehensive tool management and monitoring systems enhance precision and efficiency
Robust cooling and safety features ensure optimal operation and worker safety

Technical Machine Benefits

Internal cooling: yes, 50 bar
Control panel at tool insertion point with terminal
Workpiece clamping: mechanical
High spindle power and torque for heavy-duty machining
Advanced rotary table for precise multi-axis positioning

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
