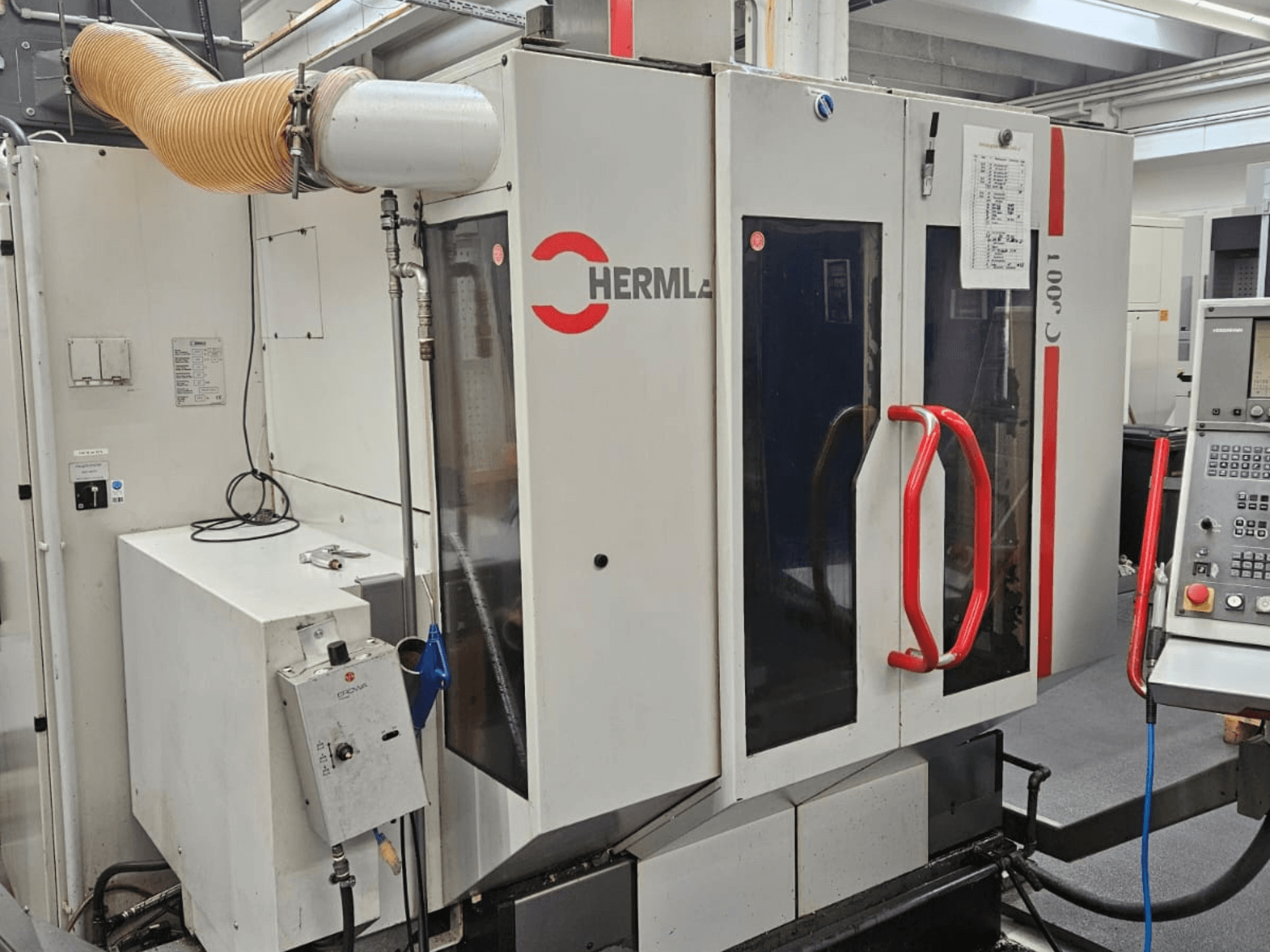

This 5-axis HERMLE C 600 U was manufactured in 2000. It features an X-axis travel of 450 mm, Y-axis travel of 300 mm, and Z-axis travel of 400 mm, providing versatile machining capabilities. The machine is equipped with a HSK 63 tool holder and a Heidenhain iTNC 426 CNC control for precision operations. If you are looking to get high-quality machining capabilities, consider the HERMLE C 600 U universal machining centre we have for sale. Contact us for further details.
Overview
- brand: HERMLE
- year: 2000
- MODEL: C 600 U
- production hours: 38515
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C 600 U

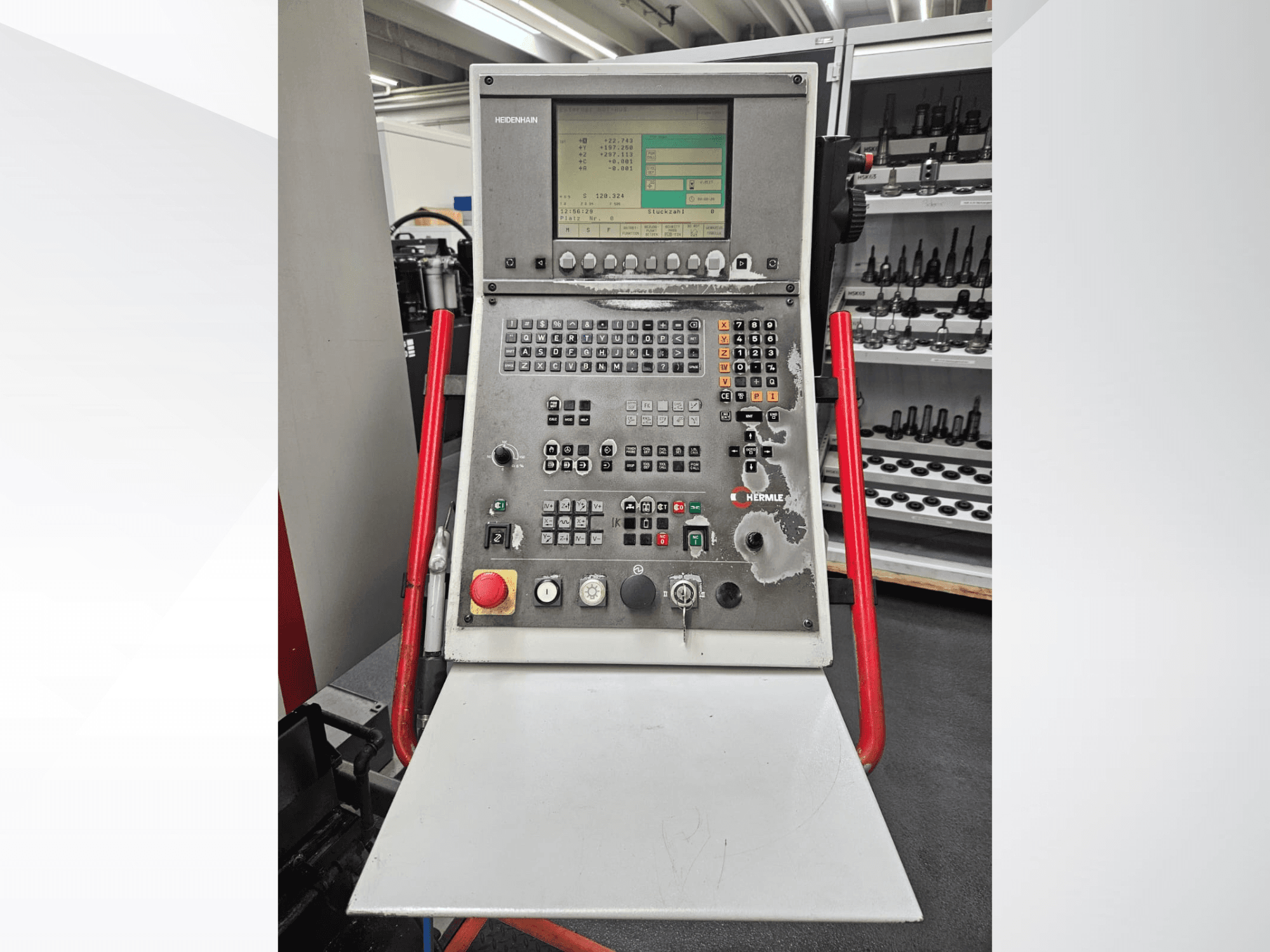

Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 426
Dimensions
- Machine Weight: 6500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 450 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: HSK 63
Additional Information
Interference circle (Störkreis): 400 mm
Operation voltage: 400 V (3 phase, 50 Hz)
Control voltage: 24 V (DC)
Total nominal current: 63 A
Total power rating: 42 kVA
Spindle on: 38,515 hours
Axes in motion: 36,413 hours
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
