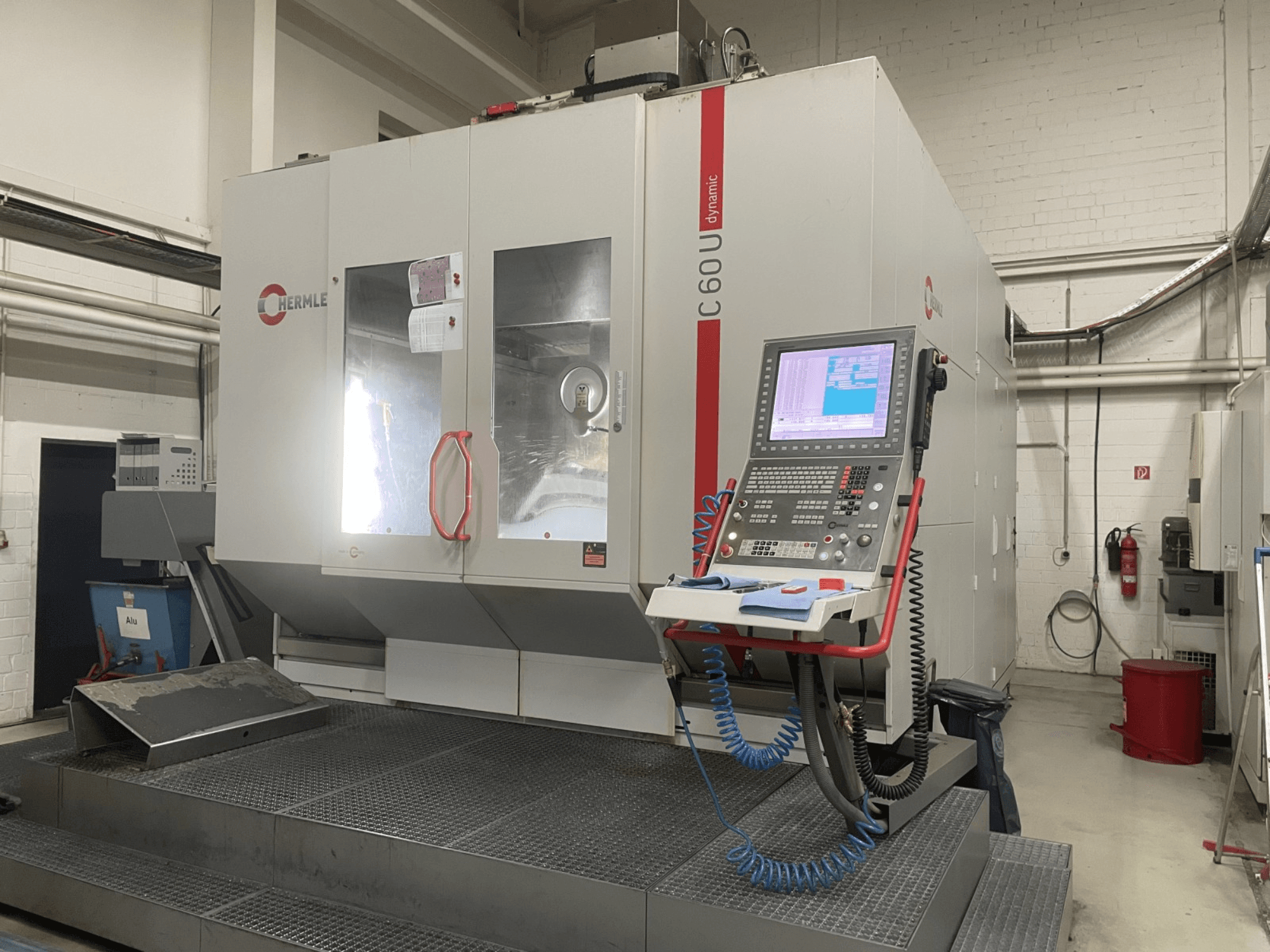

This 5-axis HERMLE C60U Dynamic was manufactured in 2014. It features impressive travels of approximately 1200 mm in X, 1300 mm in Y, and 900 mm in Z. The machine is equipped with a NC swivel rotary table with a diameter of 1350 mm and a spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the HERMLE C60U Dynamic universal machining centre we have for sale. Contact us for further details.
Overview
- brand: HERMLE
- year: 2014
- MODEL: C60U Dynamic
- production hours: 37684
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C60U Dynamic
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 30000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1200 mm
- Y-axis Travel: 1300 mm
- Z-axis Travel: 900 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Supply voltage: 400 V / 3~
Mains frequency: 50 Hz
Control voltage: 24 V
Nominal current: 113 A
Power consumption: 78 kVA
Circuit diagram no.: 1-325-MS-96-021
Axis configuration: 5 axes (X, Y, Z + A/C rotary table)
Software option: KinematicOpt
Tool interface: HSK-A 63
Table type: NC swivel rotary table
Table diameter: Ø 1350 mm
Table size: 1350 × 1100 mm
Electronic thermal compensation (iTNC)
Electronic handwheel (iTNC)
Operating hours: 37,684 h
Spindle renewed approx. 600 operating hours ago
Exclusions: Clamping devices, tool holders, tools and zero-point clamping systems shown in pictures are not included
Additional equipment
Through-spindle coolant, 80 bar (high-pressure)
Air blow device
Air through spindle centre
Chip flushing gun
Emulsion mist extraction
Probe: Heidenhain measuring probe
Tool breakage monitoring: BLUM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
