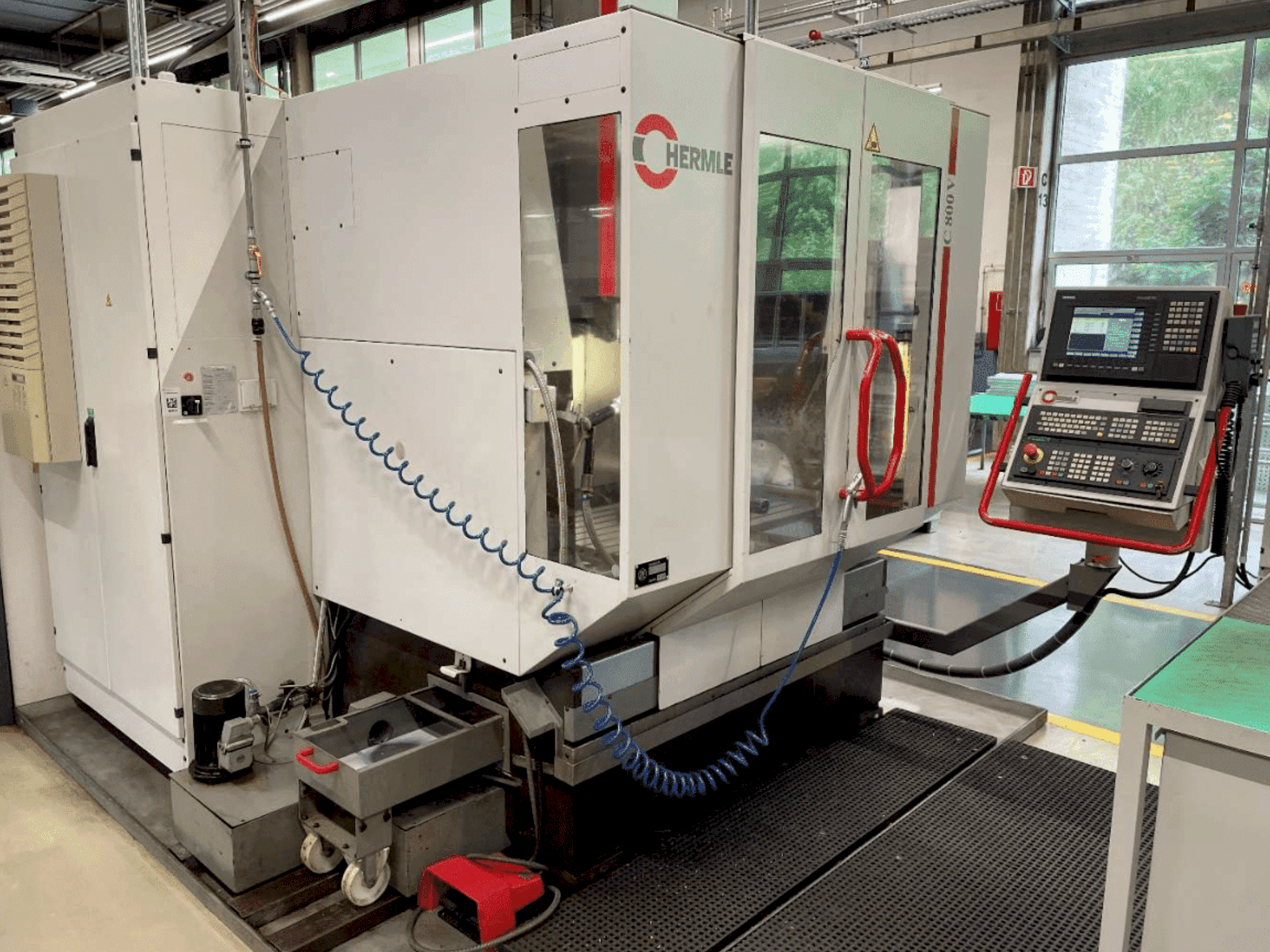

HERMLE - C800VDE-MIL-HER-1999-00003

Machine Benefits

Technical Machine Benefits

• Coolant tank: 300 l; 40 l/min at 3 bar

• Table size: work surface approx. 1000 mm x 560 mm

• Space requirement: 4. 5 x 3. 3 m

• Units available: 2

Extra Information

Machine still under power

Workpieces weighing up to 1500 kg can be machined with a maximum clamping area of ​​1000 x 560 mm.
Tool changer with a total of 30 magazine positions

300-liter coolant reservoir

Clamping table

1000 x 560 mm

Control system

Siemens S 840 D screen-based path control

Coolant system - lubrication

Coolant reservoir capacity: 300 liters

Flow rate/pressure: 40 L/min at 3 bar

Automatic lubrication - decentralized with grease dispenser

Pneumatics:

Compressed air connection p ≥ 6.0 bar

Compressed air consumption at 6.0 bar (standard): approx. 9.0 Nm³/h

Compressed air consumption with additional blow-off device at 6.0 bar:

+ approx. 58 Nm³/h

Compressed air consumption with additional SF spindle at 6.0 bar:

+ approx. 26 Nm³/h

Electrical system:

Operating voltage: 400 V; 3 PH: 50 Hz

Control voltage: 220 V AG; 24 V DC

Total connected load (standard machine 8000 or 15000 rpm) 32 kVA

Total connected load (with internal coolant supply or other electrical options) 43 kVA

Cable cross-section 16 mm²

Fuse protection 63 A

Dimensions - Weights

HERMLE C 800 V - including protective enclosure (L x W x H) 2.70 × 2.21 × 2.93 m

Space requirement (L x W) 4.50 × 3.50 m

Total weight approx. 7200 kg

Pick-up tool changer with 30 tool positions in the ring magazine

Spindle motor power at 100% duty cycle 10.5 kW

Speed ​​range: Spindle speeds infinitely variable 20 ... 8000 rpm

Tool holder ISO 40 similar to DIN 2079

Tool clamping hydromechanical, clamping force at 8000 rpm min*' 11 kN

Tool clamping: hydromechanical, clamping force at 15,000 min* 9.3 kN

Spindle diameter at the front bearing: 70 mm

Feed drive

Individual feed motors for each axis - three-phase (brushless):

Feed range in X, Y, and 2: manual / program-controlled:

1 ... 2,000 / 30,000 mm/min

Feed force in all axes (at 80% duty cycle): 8,000 N

Traverse in the X-Y-Z axes: 35 m/min

Use of mineral casting (8 times higher machine damping), no gearbox,

Optional roof, compressed air silencer, etc.

Lighting

Machine lighting with 2 halogen lamps > 500 lux

Working range

Longitudinal X-axis: 800 mm

Transverse Y-axis: 600 mm

Vertical Z-axis: 500 mm mm

Measuring system

Direct measurement X, Y, Z:

Resolution 0.1 µm

Input unit 0.1 µm

Increment 0.1 µm
