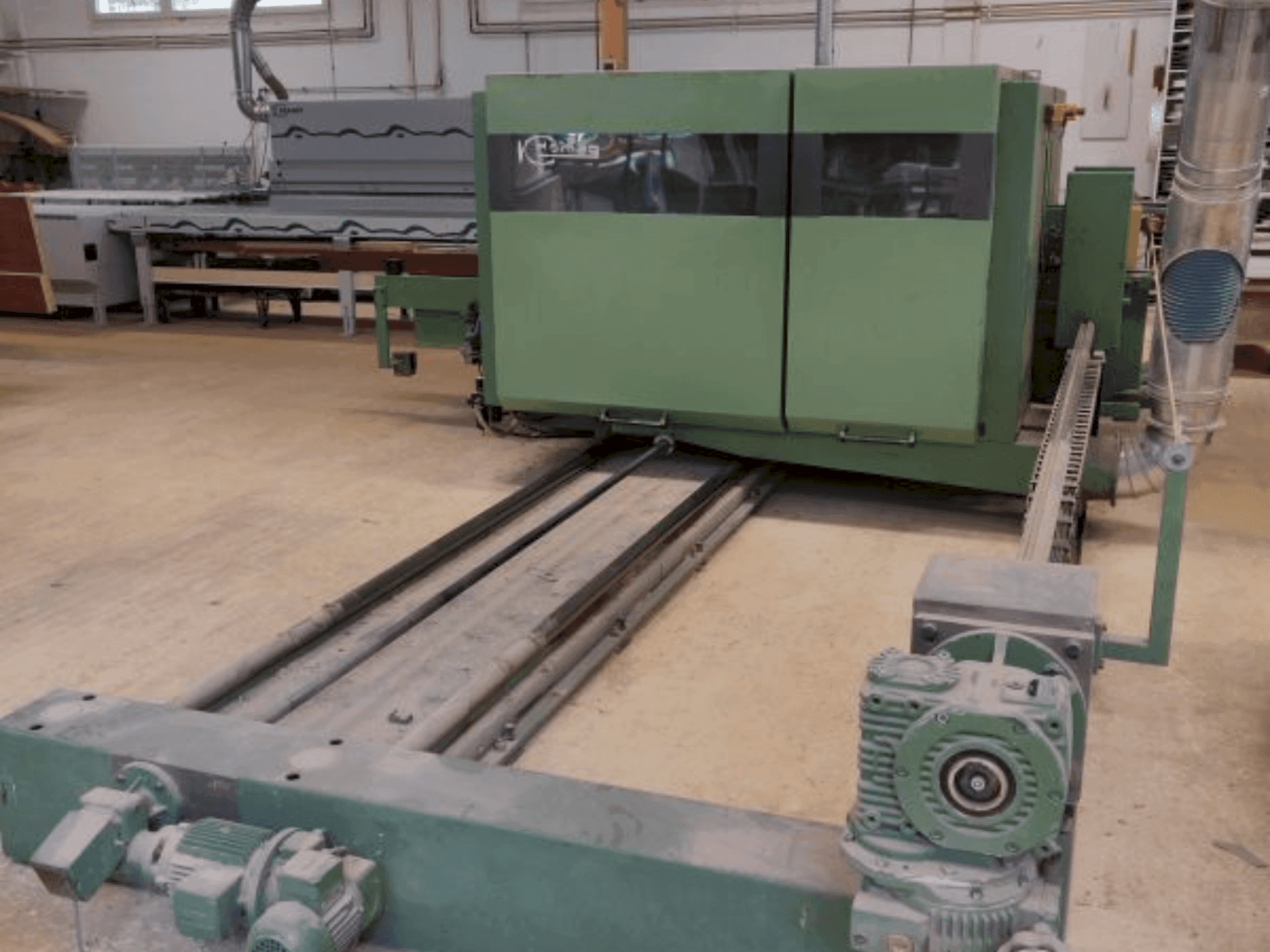

HOMAG - FLO 23DE-EDG-HOM-1992-00001

Additional Equipment

• - Center Guide (Roller Conveyor) to Support Wide Workpieces
• - Existing Tools for the Machine Included

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Operating voltage: 380 v, 50 hz
  • - Control voltage: 220 v (vde standard)
  • - Frequency converter: 30 kva, 10 hz, ip54

Extra information

• - Tools Scoring Unit: 1.5 kW, 6000 rpm Hogging Unit: 4.5 kW, 6000 rpm Milling Unit: 4.5 kW, 6000 rpm Electropneumatic Insert Milling Control Swivel Range: 90° Reversing Switch for Rotation Direction Max. Tool Diameter: 200 mm Drive & Feed System Feed Rate: 5 – 25 m/min Magnetic Braking System for the Feed Motor Width Adjustment Motorized Width Adjustment via Rapid/Creep Speed Gearbox Max. Adjustment Speed: 3 m/min LED Position Indicator Electronic Width Adjustment Unit: FLO22/23 (right) Transport & Pressure System Workpiece Transport System with Block Link Chain Retractable Stop Cams, Distance 900 mm Chain Track with Automatic Central Lubrication Top Pressure System: Driven V-Belts, Manually Height-Adjustable
