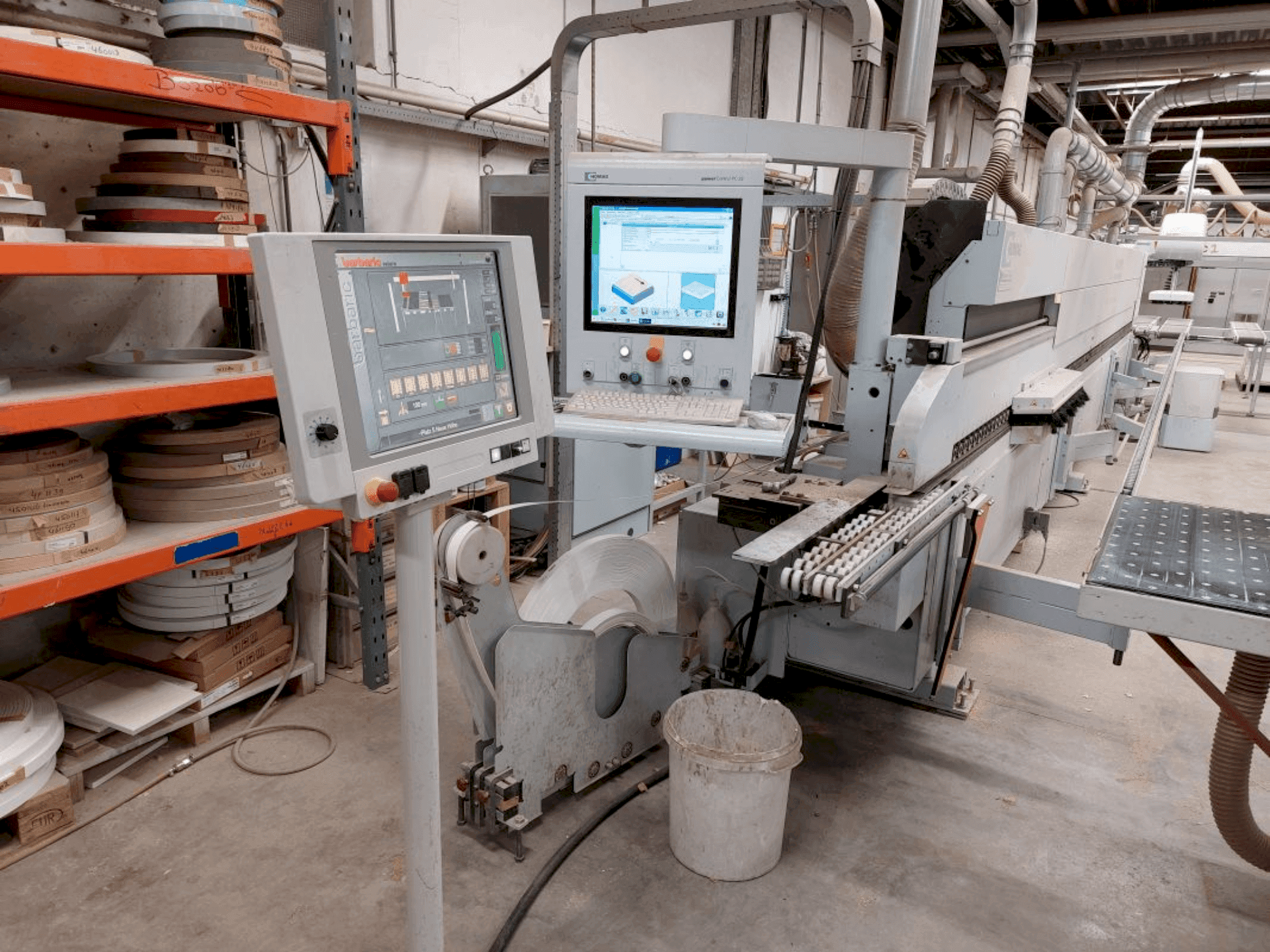

Front view of HOMAG KAL 330/9/A6/L  machine

HOMAG - KAL 330/9/A6/LDE-EDG-HOM-2011-00001

69,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HOMAG KAL 330/9/A6/L edgebander was manufactured in 2011. It features a robust machine stand, electronic height adjustment, and a transport chain with a rubber pad. The machine includes a Quickmelt application unit with electronic temperature control and a pressure zone with pneumatic adjustment. Ideal for processing straight workpiece edges, it supports various edge materials. For more information about this edgebander, please reach out to us.

Overview

  • brand: HOMAG
  • year: 2011
  • MODEL: KAL 330/9/A6/L
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander
  • availability: Immediately

Technical Information - HOMAG KAL 330/9/A6/L

    Additional Equipment

    • - Pneumatically controlled infeed stop // Pneumatic pressure adjustment with driven pre-press roller and post-pressing rollers
    • - Top pressure with composite V-belt drive
    • - Transport chain with rubber pad, magnetically braked
    • - Workpiece support with extendable roller rail
    • - Noise protection with individual extraction
    • - Quickmelt application unit with electronic temperature control
    • - Magazine for solid edges, strips, and rolls
    • - Automatic strip separation via vacuum suction cup
    • - Edge monitoring with feed stop and edge sequence control
    • - Mounted switch cabinet with electronic frequency converter

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Laser safety device with laser certificate protection class 1
        • - Portal return barbaric
        • - Manual changeover from lasertec to pu/eva
        • - Enhanced glue application, efficient material handling
        • - Basic machine design includes a continuous machine stand for mounting processing units.
        • - Fixed stop side left, painted gray rds 240 80 05.
        • - Adjustable infeed fence, with noise protection for joining and aggregate part.
        • - The machine is designed for straight workpiece edges and not for softforming.
        • - Includes an oscillating laser beam for melting the laser activation layer on the edgeband material.
        • - The laser beam wavelength is 980 nm.
      • Qualitative Machine Benefits:
        • - Improved gluing quality, consistent processing

      Extra information

      • - Specific ground conditions must comply with the foundation plan. The machine comes with documentation on CD-ROM, with operating and maintenance instructions also available in printed form. Electrical equipment operates at a voltage of 400 Volt, 50/60Hz and includes a mounted switch cabinet. The prescribed ambient temperature is from 10 to + 40 °C. Speed setting on the input unit with an infinitely variable feed rate controlled by frequency.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
