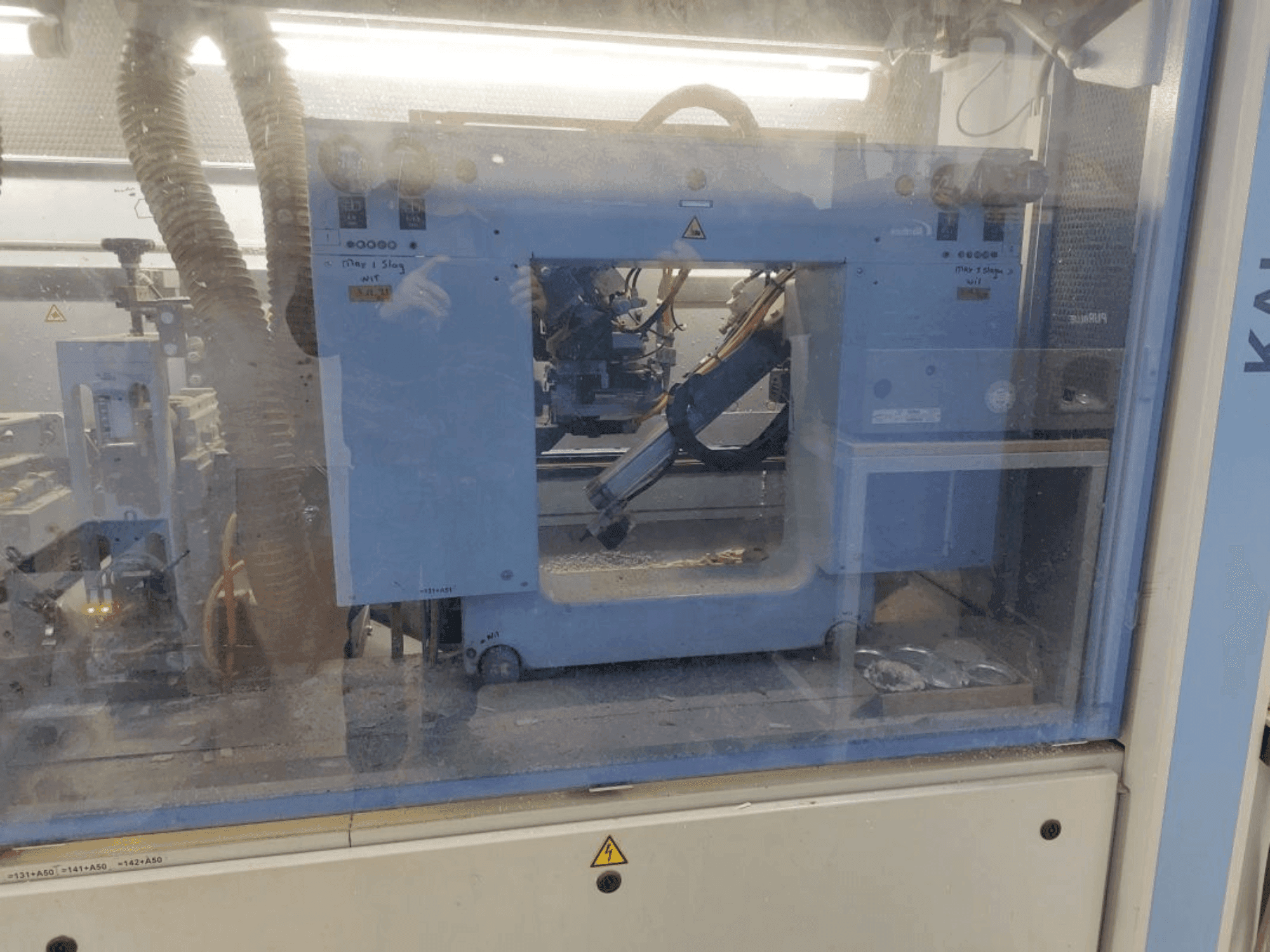

This single-sided edge banding machine machine was manufactured in 2011. A robust and reliable piece of equipment, it features a transport chain with a rubber overlay and a width of 80 mm, ensuring smooth and precise workpiece handling. The machine also boasts an electronically adjustable height setting and a feed rate adjustable up to 25 m/min for optimal performance. A great opportunity to buy this HOMAG KAL 330/9/A6/L film extrusion machine. For more information about this film extrusion machine, please reach out to us.
Overview
- brand: HOMAG
- year: 2011
- MODEL: KAL 330/9/A6/L
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Technical Information - HOMAG KAL 330/9/A6/L
Additional Equipment
- - Basic machine setup
- - Adjustable infeed ruler
- - Pneumatically controlled infeed lock
- - Workpiece transport device
- - Gluing unit A20 basic
- - Pressure zone C
- - Free space for additional processing units
Additional Information
- Technical Machine Benefits:
- - Transport chain with rubber pad, 80 mm wide
- - Workpiece support with roller rail, extendable by approx. 800 mm
- - Feed rate: 18 m/min (optional; 18-25 / 18-32 m/min)
- - Working height: 950 mm
- - Pneumatic connection: 6 bar
- - Workpiece thickness: 12-22 mm-60 mm, 23-60 mm-100 mm
- - Workpiece stock: 30 mm
- - Workpiece thickness: 12-60 mm
- - Edge material roll: 0. 3-3 mm2
- - Edge cross-section max: for pvc: 135 mm2. For veneer: 100 mm2
- Qualitative Machine Benefits:
- - Magnetically braked transport chain
- - Noise protection for joining and aggregate part with individual extraction
- - Roll diameter max: 830 mm2
- - Edge cross-section max. For strips: 900m2
- - Free space for the installation of a joint trimming unit
- - Gluing unit a20 basic: workpiece preheating, for heating the edge of the workpiece before glue application and to improve the gluing quality
- - Quickmelt application unit: electronic temperature control with led display; glue temperature reduction automatically when work is interrupted (time freely selectable); melting capacity up to max. 12 kg / h ; glue roller drive during feed stop ; glue container lift at feed stop ; glue container clamping workpiece-operated
- - Magazine 1 roll: for solid edges, strips and rolls; automatic strip separation via vacuum suction cup; 1 edge feeder; roll separating device; edge monitoring with feed stop; edge sequence control for preselecting the edge channels in any sequence. If an edge channel is empty, the next selected channel is activated (with multiple magazine)
- - Pressure zone c: 1 driven pre-press roller diameter 150 mm; 6 holding rollers diameter 70 mm; pneumatic pressure adjustment; central adjustment to different edge thicknesses
- - Electrical equipment: - operating voltage 400 volt, 50/60hz - mounted switch cabinet - installed in accordance with european standard en 60204 - electronic frequency converter with motor braking function - country-specific operating voltage adjustment via transformer (optional) - rcd protection circuit only permissible in conjunction with an all-current sensitive/selective rcd. If the performance of this device is not sufficient, we recommend using a residual current monitoring device on site - prescribed ambient temperature: + 10 to + 40 ° c
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
