➤ Used Hurco TMM10i For Sale | gindumac.com

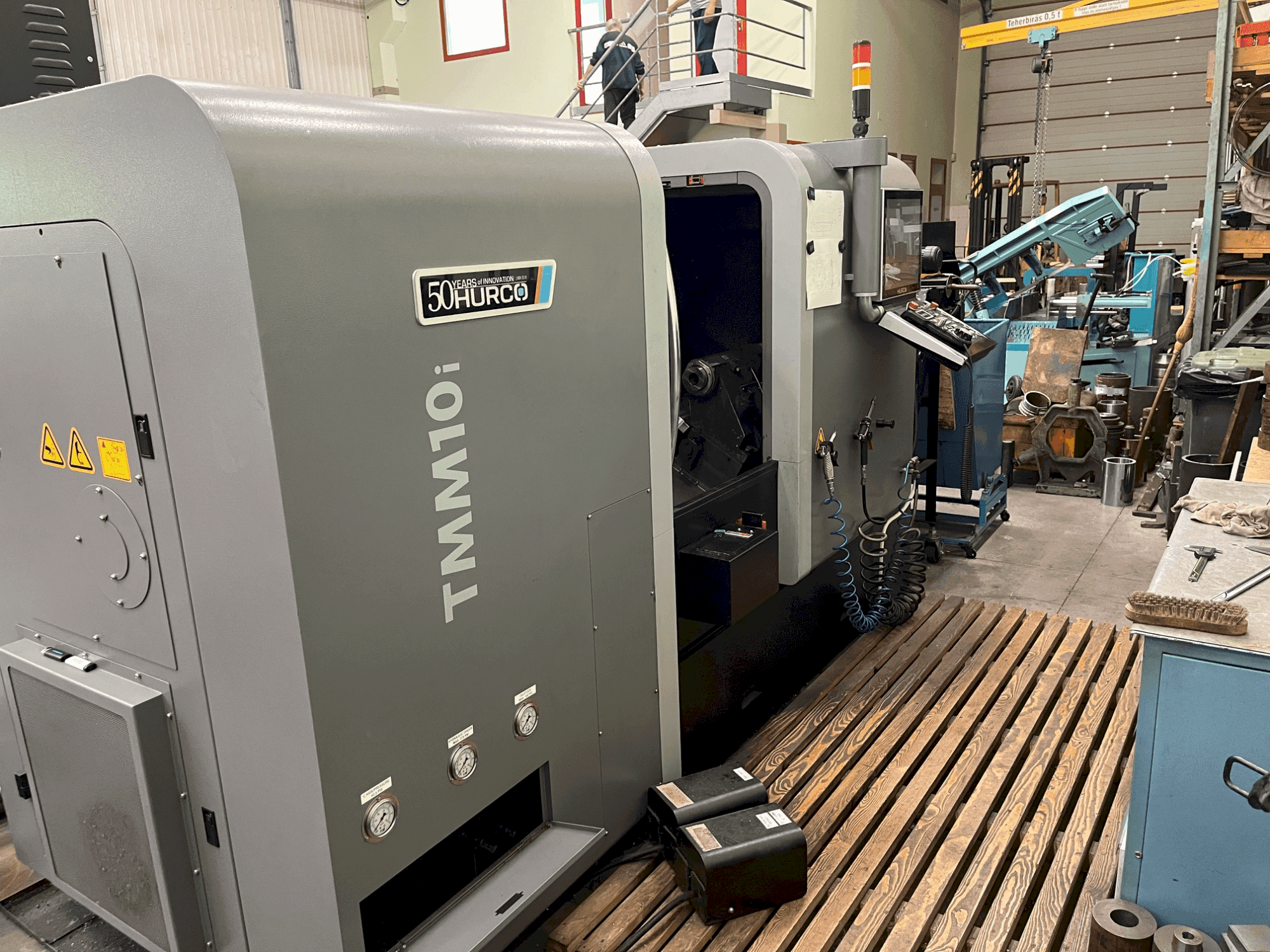

This Hurco TMM10i was manufactured in 2018. It features a swing over bed diameter of 582 mm and a max turning length of 700 mm. With a spindle speed up to 3000 rpm and live tooling speed of 4000 rpm, it's equipped for efficient turn-mill operations. Additional features include a tool capacity of 12 stations and a chuck diameter of 254 mm. Consider the opportunity to buy this Hurco TMM10i turn-mill centre. Contact us for more information.

Overview

brand: Hurco
year: 2018
MODEL: TMM10i
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: HURCO

Technical Information - Hurco TMM10i

General Data

Measurements width: 3179 MM
Measurements depth: 5120 MM
Measurements height: 2169 MM
Machine weight: 5000 KG

Control Unit

Brand: HURCO

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 18 kW

Movement

X-AXIS Movement: 250 MM
X-AXIS Rapid traverse: 19.24 m/min
Z-AXIS Movement: 750 MM
Z-AXIS Rapid traverse: 19.24 m/min

Workpiece

Workpiece drm over bed: 582 mm
Workpiece drm over support: 402 mm
Workpiece drm: 295 mm
Workpiece x: 700 mm

Additional Equipment

- Driven tool + C-axis
- Tool gauge
- Workpiece catcher
- Tailstock
- Driven tool holder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers: 695 mm
- - Max. Bar capacity: 78 mm
- - Tool type: vdi40
- - Tool capacity: 12 stations
- - Max boring bar diameter: 40 mm
- - Spindle nose: a2-8
- - Chuck diameter: 254 mm
- - Live tooling spindle speed: 4000 rpm
- - Live tooling spindle power: 6. 6 kw
- - Live tooling spindle max torque: 42 nm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
