Hurco - TMX 8MYSBE-TUR-HUR-2013-00001

Name: Hurco TMX 8MYS
Brand: Hurco
SKU: BE-TUR-HUR-2013-00001
Price: 40000 EUR
Availability: InStock

40,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco TMX 8MYS - Lathe For Sale | gindumac.com

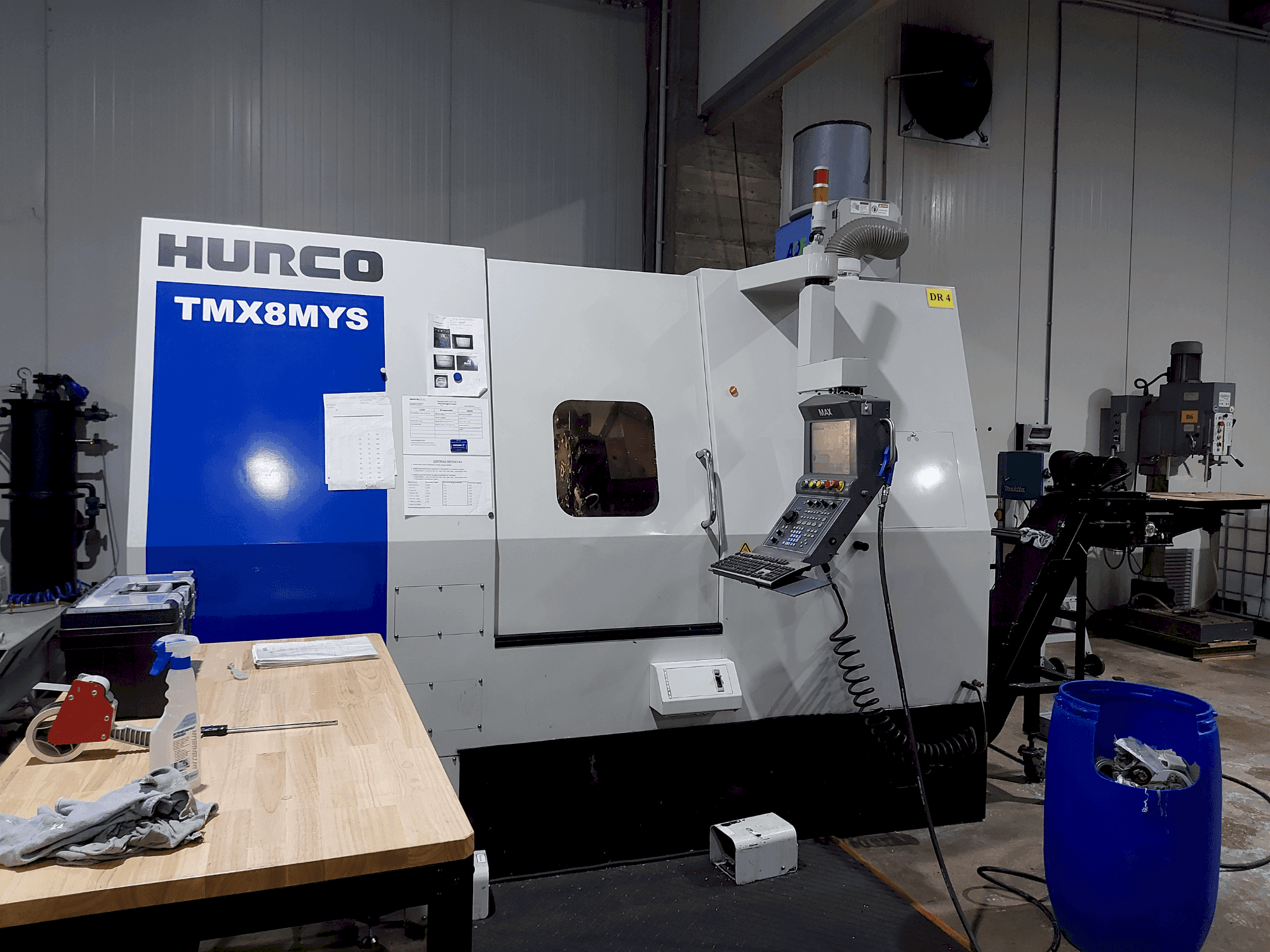

This 4-axis Hurco TMX 8MYS lathe was manufactured in 2013. It features a maximum turning diameter of 336mm and a swing over bed of 508mm. The distance between centers is 724.5mm, and it includes live tools with 12 positions in the turret. Ideal for precision machining, the Hurco TMX 8MYS machine we have for sale offers robust performance and versatility. Contact us for further details regarding this lathe.

Overview

brand: Hurco
year: 2013
MODEL: TMX 8MYS
application type: Turning
Location: Belgium
machine type: Turn-Mill Centre

Technical Information - Hurco TMX 8MYS

Dimensions

Machine Depth: 4261 mm
Machine Height: 2597 mm
Machine Weight: 8000 kg

Movement

Number of Axes: 4
X-axis Travel: 203.2 mm
Z-axis Travel: 560 mm

Technical Specification

Max. Workpiece Diameter: 336 mm
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Swing over bed & swing over cross slide: 508mm
W-travel: 640mm
Main spindle 4500 rpm
Sub spindle 5000 rpm
Driven tools 4000rpm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
