Hurco - VMX30Ui + BMO Automation Titanium 50NL-MIL-HUR-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Hurco VMX30Ui + BMO Automation Titanium 50 For Sale

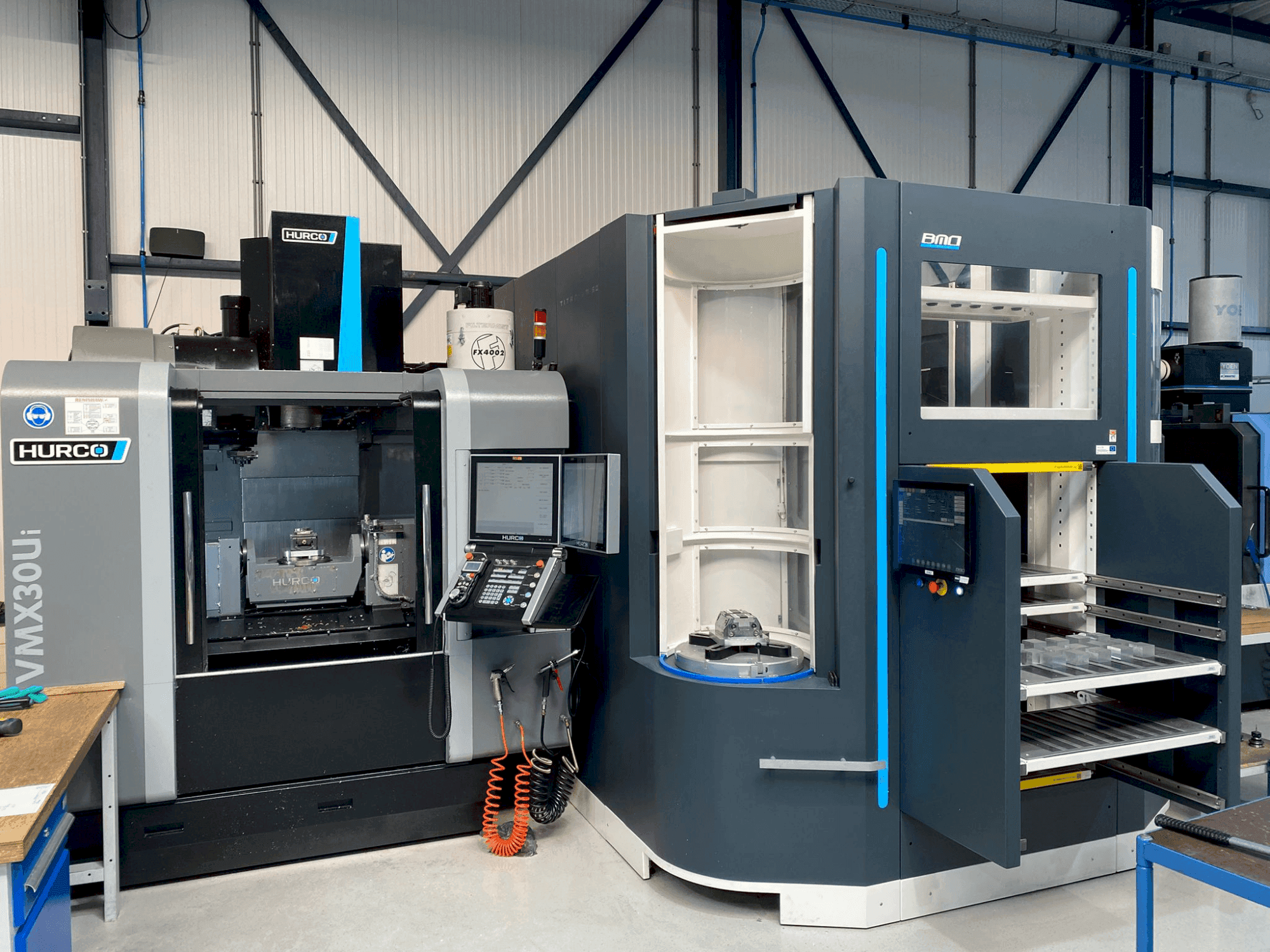

This 5-axis Hurco VMX30Ui + BMO Automation Titanium 50 was manufactured in 2017. Ideal for complex, multi-angle machining with its advanced vertical machining centre design. If you are looking to get high-quality milling capabilities, consider the Hurco VMX30Ui machine we have for sale. Contact us for more information.
Overview
- brand: Hurco
- year: 2017
- MODEL: VMX30Ui + BMO Automation Titanium 50
- application type: Milling
- Location: Sweden
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HURCO
Technical Information - Hurco VMX30Ui + BMO Automation Titanium 50
General Data
- Measurements width: 2440 mm
- Measurements depth: 2180 mm
- Measurements height: 2900 mm
- Machine weight: 5540 kg
Control Unit
- Brand: HURCO
- Model: MAX5
Main drive
- Spindle speed range: 12000 RPM 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 760 mm
- X-AXIS Rapid traverse: 35 m/min
- Y-AXIS Movement: 510 mm
- Y-AXIS Rapid traverse: 35 m/min
- Z-AXIS Movement: 520 mm
- Z-AXIS Rapid traverse: 30 m/min
- A-AXIS Movement: +30°/-110°, +/- 7 sec MM
- A-AXIS Rapid traverse: 25 RPM
- C-AXIS Movement: 360°, +/- 7 sec MM
- C-AXIS Rapid traverse: 25 RPM
Workpiece
- Workpiece weight: 140 kg
Table
- Number of tslots: 6
- Table load: 200 kg
Tools
- Number of index: 40
- Max weight: 7 kg
- Max tool length: 300 mm
Media
- Main electronic connection: 31 kVA / 45 A / 400V
Additional Equipment
- - Central lubrication system: 1 pump (X,Y,Z)
- - Taper DIN69871 SK-40
- - Material of machine bed: Cast-iron
Additional Information
- Technical Machine Benefits:
- - Torque at 1 min rating: 119 nm
- - Positioning x, y, z per axis: 0. 01 mm
- - Bmo titanium 50 robot cell dimensions: 2. 5x3. 2 meters, floor area 8 m²
- - Combination of pallet and product handling possible
- - 96 pallet positions 300x150
- - Maximum 7 product drawers for product loading
- - Flexible system due to universal robot and software
- - Very short changeover times of the workpiece
- - Product weight up to 50 kg
- - Max torque: 600rpm
- - Workpiece Spindle nose to table: 90 - 610 mm Table Table working surface: ∅ 248mm Width of T slots: 12 mm Spacing of T slots: 60° Tools ATC type: Chain magazine Tool ∅, consecutive tools: 76 mm Tool ∅, adjac. sides empty: 150 mm Media Air supply: 7 bar/0.15 cbm/min Content coolant tank: 230 ltr. Power (30 min rating): 13,4 kW (was Power (1 min rating): 35 kW)
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
