HWACHEON - CUTEX 160 AKR-TUR-HWA-2015-00001

Name: HWACHEON CUTEX 160 A
Brand: HWACHEON
SKU: KR-TUR-HWA-2015-00001
Price: 30000 EUR
Availability: InStock

30,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HWACHEON CUTEX 160 A For Sale | gindumac.com

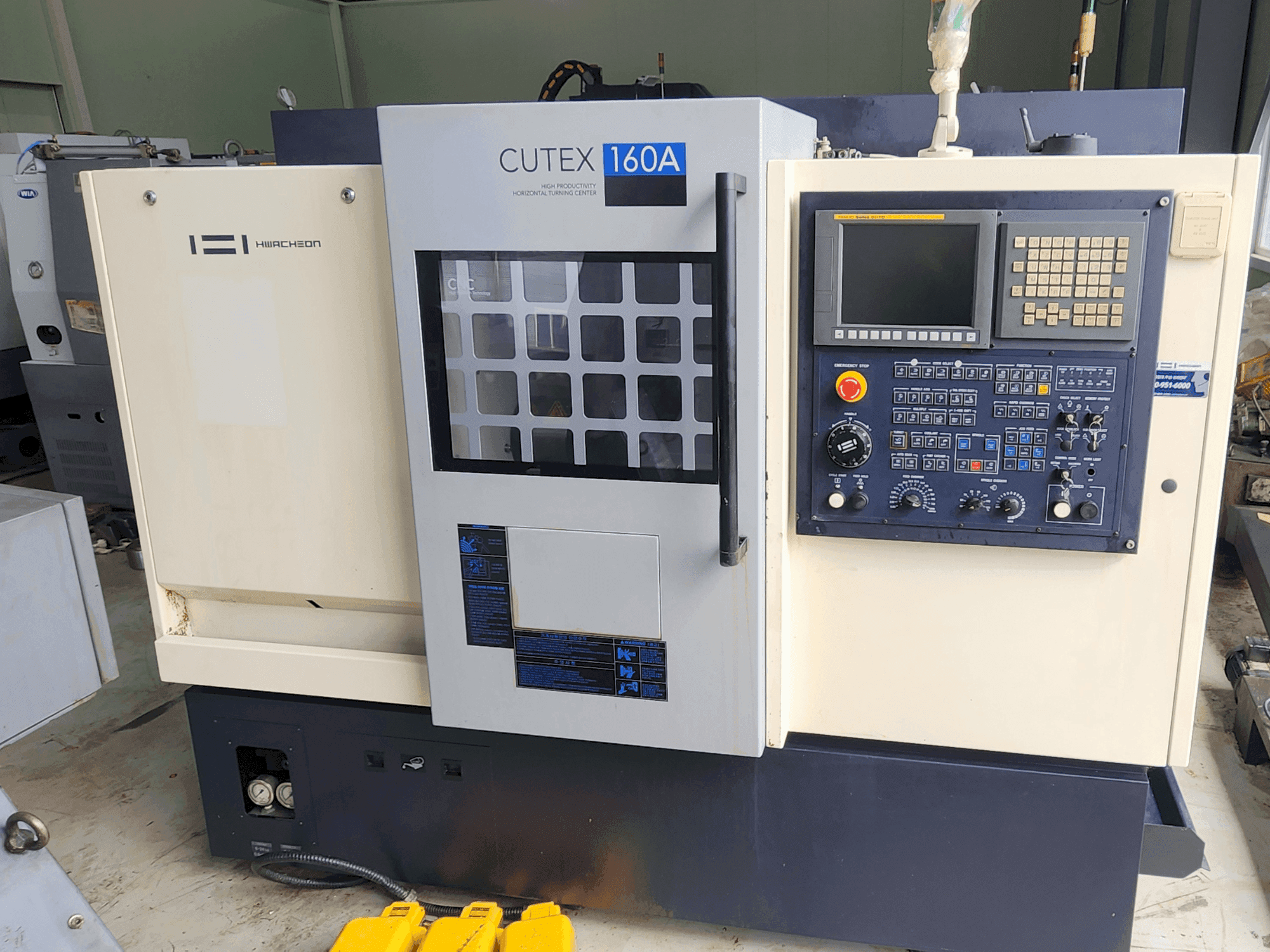

This HWACHEON CUTEX 160 A was manufactured in 2015. It features a maximum cutting diameter of Ø300 mm, a spindle speed up to 6,000 rpm, and a 12-station turret. The machine offers rapid speeds of 36 m/min in both X and Z axes, and a spindle motor power of 11 kW. Ideal for precision turning operations. Contact us for more information about this machine.

Overview

brand: HWACHEON
year: 2015
MODEL: CUTEX 160 A
application type: Turning
Location: South Korea
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - HWACHEON CUTEX 160 A

General Data

Measurements width: 1520 mm
Measurements depth: 2120 mm
Measurements height: 1720 mm
Machine weight: 3200 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Rapid traverse: 36 m/min
Z-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece drm over bed: 550 mm

Tail Stock

Pinol diameter: 60 mm

Tools

Number of stations: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Stroke (x / z): 170 / 335 mm
- - Max. Cutting diameter: Ø300 mm
- - Standard cutting diameter: Ø170 mm
- - Max. Cutting length: 300 mm
- - Chuck size: 6"
- - Tool size: □25 × Ø40
- - Turret indexing time: 0. 15 sec / step
- - Quill stroke: 80 mm
- - Taper hole: mt #4
- - Nc controller: fanuc

Extra information

- Media Lubrication Capacity: 2 liters Hydraulic Capacity: 11 liters Coolant Capacity: 82 liters Power Sources Electrical Power Supply: 25 kVA // 220V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
