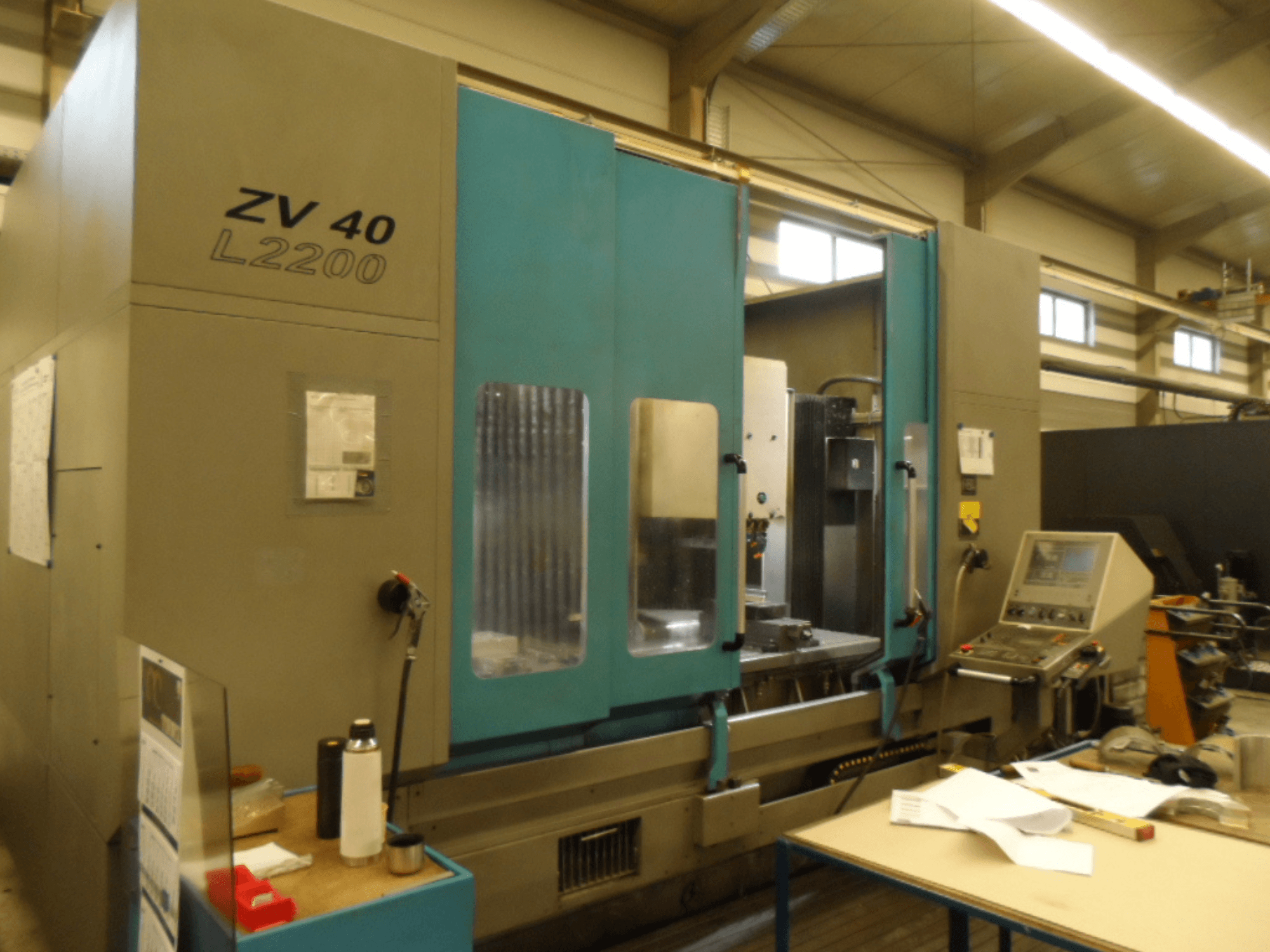

IBARMIA - ZV 40 L2200DE-MIL-IBA-2000-00001

- X-axis travel in 2-station machining (shuttle operation): 720 mm

- Z-axis travel (vertical): 600 mm (Optional: 800 mm)

- Number of T-slots: 5

- T-slots size: 18 mm

- Distance between T-slots: 125 mm

- Min./Max. distance spindle nose to table: 200 / 800 mm (Optional: 1000 mm)

- Tool taper / holder: SK40 - DIN 69871 (Options: HSK A-63 DIN 69893 or HSK A-80 DIN 69893)

- Pull stud for SK tool holder: DIN 69672

- Clamping force of tool retention (SK): 12000 N (Options: HSK A-63: 18000 N / HSK A-80: 28000 N)

- Inner bearing diameter: 80 mm

- Max. standard spindle speed: 6000 rpm (Options: 4000 / 8000 / 10000 rpm)

- Main spindle motor power at 100%: 28 kW (Intermittent: 38.5 kW)

- Constant power for standard configuration from: 1500 rpm

- Max. torque at 100%: 178 Nm (Intermittent: 245 Nm)

- Feed force in X, Y, Z at 100%: 13000 N (Intermittent: 15600 N)

- Rapid traverse rate in X, Y, Z: 30 m/min

- Max. working feed rate in X, Y, Z: 10 m/min

- Positioning tolerance Tp X(1000mm)-Y-Z: 0.015 mm

- Max. positioning scatter Ps max.: 0.010 mm

- Measuring system in X-Y-Z: Linear glass scales

- Milling capacity in steel (St 60): 650 cm³/min

- Drilling capacity in steel (St 60): Ø 60 mm

- Tapping capacity in steel (St 60): M-36

- Number of tool pockets: 24 (Options: 40 - 52)

- Max. tool length: 300 mm

- Max. tool weight: 10 kg

- Max. tool diameter (full magazine): 85 mm

- Max. tool diameter (adjacent pockets free): 125 mm

- Tool management: Random

- Tool change time: 3.5 s

- Chip-to-chip tool change time: 7 s

- Floor space requirement: approx. 17 m²

- Coolant tank capacity: 370 liters

- Machine length (Dimension A): 4200 mm

- Textured paint structure (2 colors): RAL grey 7037 / blue 5012

- Electrical connection: 55 kW

- Operating voltage: 400 V / 50 Hz

- Compressed air connection: 6 bar

- Coolant pump power: 0.75 kW

- Standard equipment: CE machine enclosure protection, chip conveyor, coolant tank, linear glass scales in X/Y/Z axes, vertical interior cladding along X-axis, workspace lighting, automatic centralized lubrication, hydraulic counterweight balance for spindle head, automatic pneumatic spindle cleaning, mobile control panel, rigid tapping (tapping without compensation chuck).

- Factory options available: Internal coolant supply (IKZ), full machine enclosure, partition wall for shuttle operation, dividing heads/rotary tables for 1 or 2 additional machine axes, work tool touch probe, digitization systems, tool monitoring systems, portable electronic handwheel

- depending on the requirements, parts in the Y-axis would need to be replaced or repaired
