- ➤ Used Imes-Icore CUT matic WJ 3020 | Waterjet Cutter

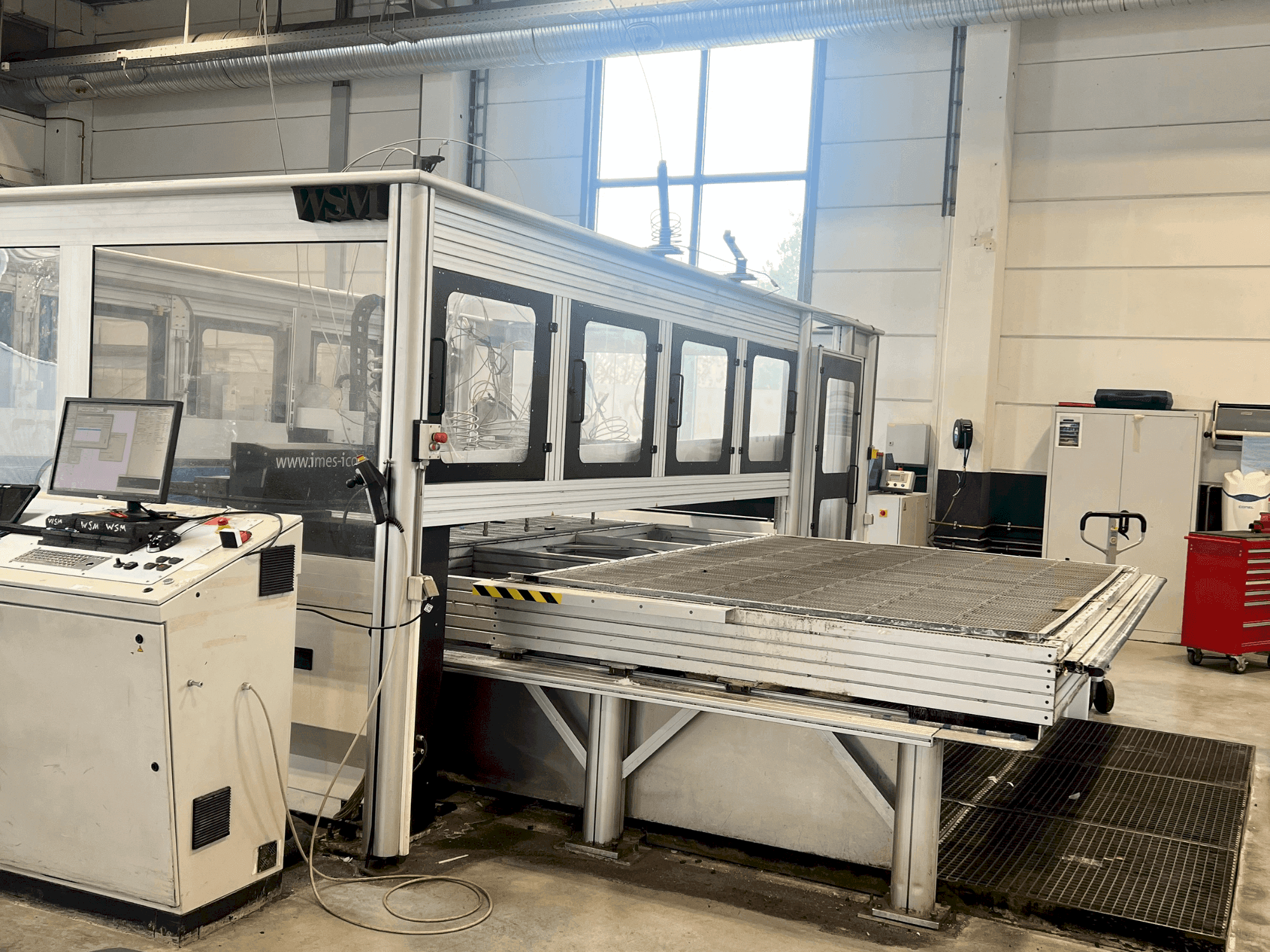

This 3-axis Imes-Icore CUT matic WJ 3020 was manufactured in 2014. It features a universal waterjet gantry cutting system with a fully protected axis guidance system. The machine includes a stainless steel basin and table, motor-driven shuttle table, and highly dynamic linear drives in X and Y. The cutting area is enclosed with Plexiglas panels and lift doors. If you are looking to get high-quality waterjet cutting capabilities, consider the Imes-Icore CUT matic WJ 3020 machine we have for sale. Contact us for more information.
Overview
- brand: Imes-Icore
- year: 2014
- MODEL: CUT matic WJ 3020
- application type: Cutting
- Location: Germany
- machine type: Waterjet Cutting Machine
Technical Information - Imes-Icore CUT matic WJ 3020
Dimensions
- Machine Depth: 5500 mm
- Machine Height: 1600 mm
- Table Load: 450 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3050 mm
- Y-axis Travel: 2050 mm
- Z-axis Travel: 250 mm
Additional Information
Additional equipment
- Table Protected with Plexiglas Panels and Lift Doors
- Equipped with Water Deflectors and Baffles in Tank
Machine Benefits
Technical Machine Benefits
- High precision and accuracy in cutting capabilities
- High precision and accuracy in cutting capabilities
- Comprehensive control with advanced software for better handling
- Highly dynamic linear drives in x and y
- Linear drives mounted on granite bearings in y
- Backlash-free drives with interference-free can bus communication
- 5 manually movable mounts for allfi pure water cutting heads
- Motorized shuttle table with accuracy of 0. 1 mm/m
- Maximum table drive speed: 8000 mm/min
Extra Information
Workpiece Capable of Standard Cuts with Dimensional Accuracy of +/-0.1 mm Rinsing Nozzles for Tank Cleaning Table Motorized in the Y Direction for Loading and Cutting Simultaneously Protected by Safety Mats and a Traveling Ripcord Cutting Machine Accuracy: Positioning Accuracy: +/-0.03 mm/m Repeat Accuracy: +/-0.01 mm Dimensional Accuracy: +/-0.1 mm Maximum Speed (X,Y): 30000 mm/min Surface Roughness: Rz 20-50
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
