➤ Used Index ABC 65 For Sale | gindumac.com

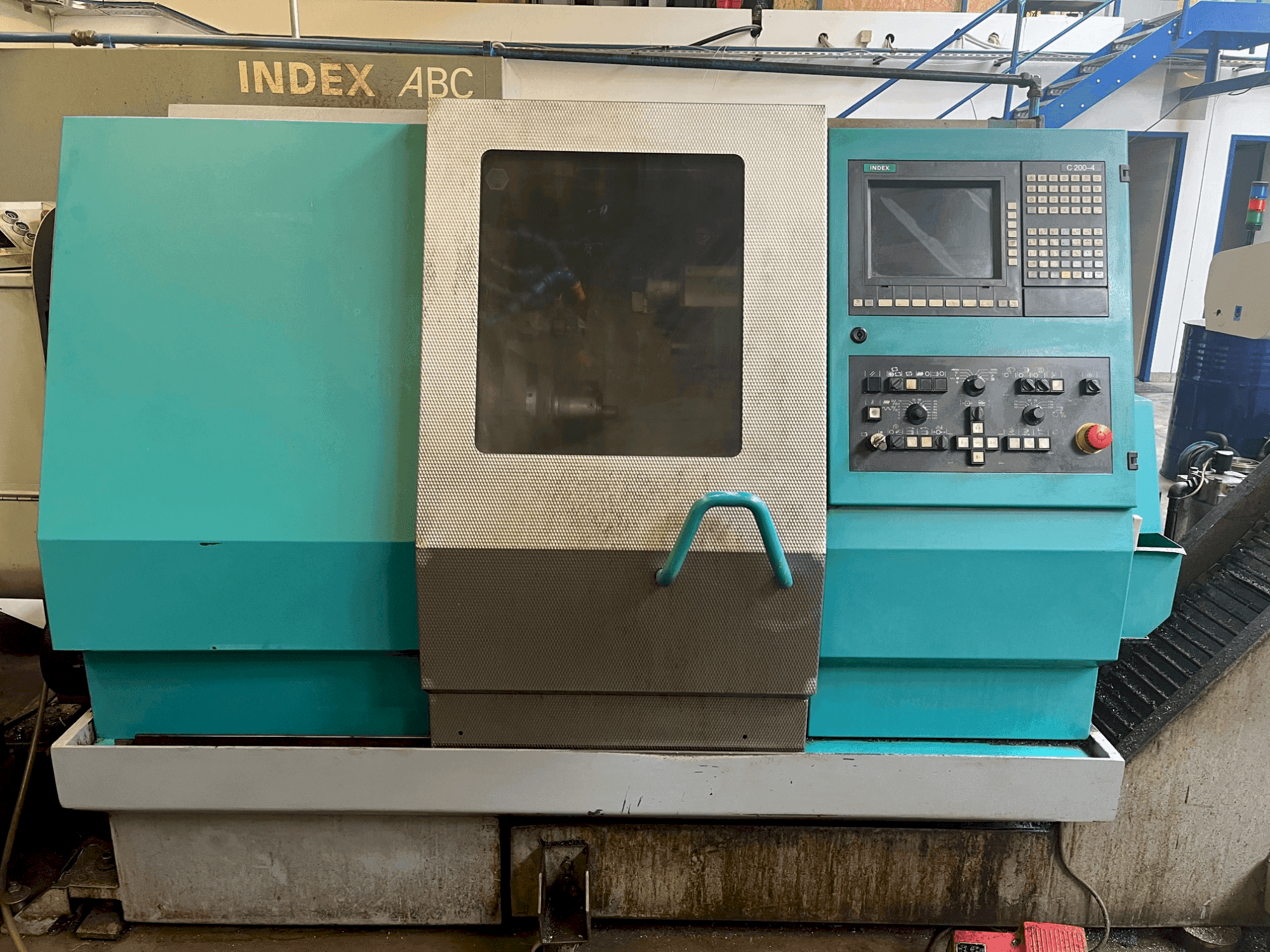

This Index ABC 65 horizontal turning machine was manufactured in 2000. It features a robust tool carrier with two turrets, supporting a variety of tools and operations. Key specs include a maximum rod diameter of 52mm, rapid traverse rates up to 24 m/min, and a synchronized spindle with a clamping diameter of 42mm. Ideal for precision tasks, the machine also includes a chip conveyor and a Siemens control unit. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: Index
year: 2000
MODEL: ABC 65
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Index

Technical Information - Index ABC 65

General Data

Machine weight: 2500 kg

Control Unit

Brand: Index
Model: C200-4 Siemens

Main drive

Number of axis: 2

Additional Equipment

- Tool carrier / Revolver 1 with 8 tool places / Tool system cylindrical shank 25 x 48 mm / Turret 2 with 6 tool positions
- Chip conveyor:Discharge height 650 mm / Hydraulic system:Delivery rate 19 l/min / System pressure 90 bar
- Filling volume 50 litres / Filling volume 50 litres / System pressure 4 bar / Filling volume 210 litres
- Material feed device:Rod diameter max 52 mm / Feed stroke max. 80 mm / Feed force 3000 N
- Ejection device for synchronised spindle:Ejection stroke 40 mm
- Hydraulic ejection and flushing device:Ejection stroke 40 mm.
- Back-boring device:Max. 5 stationary tools / Max. 3 stationary and 2 driven tools / Speed 6000 min-1
- Torque 8 Nm.
- Tool mounting hole 25 mm.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle speed range: 6000 min-1 (tool carrier), 4500 min-1 (synchronised spindle), 4000 min-1 (chuck clamping).
- - Movement: x-axis: 90 mm (revolver 1), 81 mm (turret 2) / z-axis: 280 mm (revolver 1), 80 mm (turret 2)

Extra information

- X-axis (revolver 1):Slide path 90 mm. Feed force 5500 N. Rapid traverse 24 m/min. Z-axis (revolver 1):Slide travel 280 mm. Feed force 5500 N. Rapid traverse 24 m/min. Torque 7.5 Nm (Md max. 25%). Speed 6000 min-1. X-axis (turret 2):Slide travel 81 mm. Feed force 8300 N. Rapid traverse 16 m/min. Z-axis (turret 2):Slide travel 80 mm. Feed force 5500 N. Rapid traverse 24 m/min. Synchronised spindle:Torque (25%) 10 Nm. Speed 4500 min-1. Clamping diameter max. 42 mm. Clamping depth with max. clamping diameter 38 mm. Max. part length 120 mm. Spindle through-hole 17 mm. Max. clamping pressure 34 bar. Chuck clamping for external and internal clamping:Torque 10 Nm. Speed 4000 min-1. Clamping diameter 75 mm. Ejector stroke 42 mm. Jaw stroke per jaw max. 0.5 mm. Max. clamping pressure 30 bar. Max. clamping force 480 saN. Part length max. 100 mm. Dimensions:Height 1750 mm. Centre of rotation above floor 1010 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
