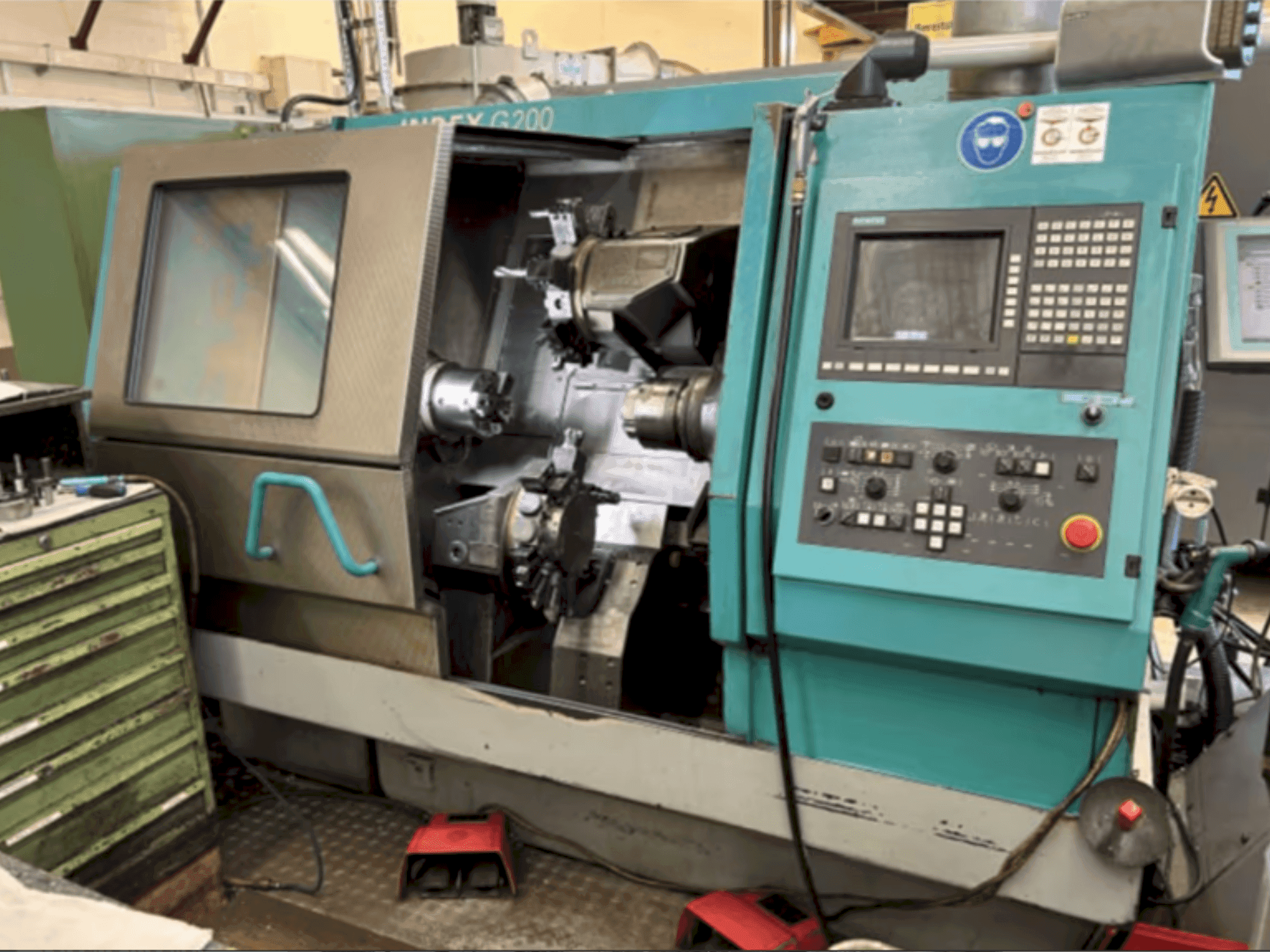

Index - G200 CDE-TUR-IND-2000-00003

Additional Equipment

• - Synchronous device for counter spindle machining
• - Tool carrier 3 for synchronous spindle (rear end machining)
• - Additional milling spindle
• - Thread milling and polygon turning device
• - Gripperless tool changer (6 tools, HKS-50 B, KM40)
• - Workpiece handling WHU100

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Space requirement (without material guide): 3580 x 3108 mm
  • - Control unit: resolution: 0. 001 mm (input/output/correction)
  • - Comprehensive movement range with multiple axes configuration
  • - High precision with 0. 001 mm resolution in numerical control
  • - Versatile expansion stages and additional equipment for enhanced functionality

Extra information

• - Movement Cross slide 1 (top) - XYZB axes: X-axis: Slide path 155 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Y-axis: Slide travel 120 mm, feed force 10000 N, rapid traverse 7.5 m/min, resolution 0.0005 mm Z-axis: Slide path 590 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm B-axis (rotating): 360° swivel range, angular steps 5° (with locking), resolution 0.001° (with clamping), switching time for 180°: 1 s Cross slide 2 (bottom) - XZ axes: X-axis: Slide travel 105 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Z-axis: Slide path 307 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm Turret Turret right: X-axis: Slide path 120 mm Z-axis: Slide travel 400 mm Tail Stock Center distance: 400 mm Pressure force (max): 5500 N Drive: Hydraulic or electric Media Power supply: 400 V, 50/60 Hz Connected load: 20-45 kVA Current consumption: 35-80 A Hydraulic system: Delivery rate: 18 l/min System pressure: 90 bar Filling capacity: 70 liters Cooling lubricant system: Pump capacity (switchable): 20 l/min at 18 bar / 50 l/min at 3 bar / 60 l/min at 5-7 bar Filling quantity: Approx. 230 liters Chip conveyor: Hinged belt or scraper Workpiece holder: Main spindle: DB5 internal mount / D140 external mount, optional short taper Counter spindle: D140 external mount (only tensile clamping permitted for collet and chuck clamping) 1st spindle data (main/counter spindle): Spindle clearance (collet clamping): Variants: 30 mm / 42 mm / 60 mm / 65 mm Spindle Ø in front bearing: 75 mm (with 30 mm clearance) / 85 mm (42 mm) / 100 mm (60+65 mm) Speed (max): 7500 rpm (30 mm) / 6300 rpm (42 mm) / 5000 rpm (60 mm) Spindle nose: ISO 702/1 (size 4 or 5) Chip diameter (workpiece Ø): 110-130 mm (30 mm) / 140-160 mm (42 mm) / 165 mm (60 mm) Torque (Md max 100%): 33-62 Nm (30 mm) / 35-95 Nm (42 mm) Power (P max 100%): 7-13 kW (30 mm) / 7.5-20 kW (42 mm)
