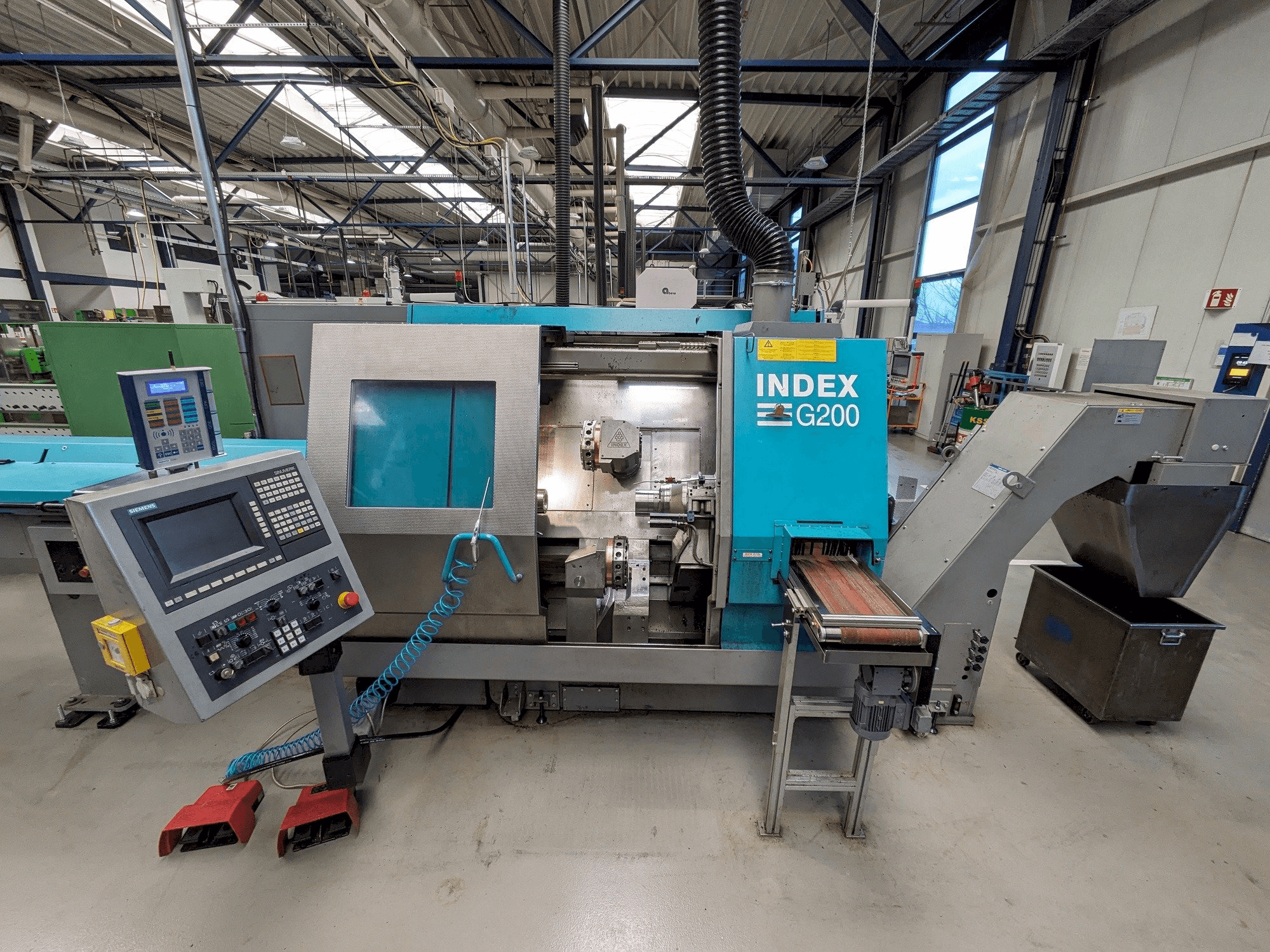

Front view of Index G200 YB RATIOLINE machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Index G200 YB RATIOLINE

Index - G200 YB RATIOLINEDE-TUR-IND-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
INDEX G200 YB Ratioline Lathe

This INDEX G200 YB Ratioline Lathe was manufactured in 1995 and completely retrofitted in the year 2016. It is equipped with a SIEMENS SINUMERIK 840 C control unit.

Overview

brand: Index
year: 1995
MODEL: G200 YB RATIOLINE
production hours: 44020
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: INDEX

Technical Information - Index G200 YB RATIOLINE

Control Unit

Brand: INDEX
Model: C200-4

Main drive

Spindle speed range: 5000 RPM 1/MIN
Spindle motor power: 20 kW
Tool taper: HSK D-50

Movement

X-AXIS Movement: 155 MM
Y-AXIS Movement: 120 MM
Z-AXIS Movement: 590 MM
B-AXIS Movement: 360º MM

Media

Chip conveyor: Yes

Additional Equipment

- High-pressure coolant pump, exhaust air nozzle, installation and commissioning, acceptance with customer part, bar loading magazine, CO2 extinguishing system, transport, cooling lubricant line.
- Switchable high-pressure coolant pump 20 bar
- Exhaust air nozzle D=150mm / Bar loading magazine INDEX-MBL 65/3700 / Kraft & Bauer automatic CO2 object extinguishing system
- New milling spindle for turret 1 with HSK D-50 tool holder / Switch cabinet cooling unit / New chip hinge belt conveyor / Conveyor belt to the right
- Coolant lubricant pump / Portal removal device with actuated gripper / Gripper fingers for workpiece D 4 45 mm and D 40-60 mm
- Unimag interface for bar feed (optional)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Technical machine benefits: high spindle speed and power, dual spindle capability, advanced control system.
- - Qualitative machine benefits: precision engineering, comprehensive safety and operational features.
- - X-axis: 155 mm (cross slide 1), 105 mm (cross slide 2) / z-axis: 590 mm (cross slide 1), 400 mm (cross slide 2)
- - Max bar diameter: 65 mm
- - Max workpiece length: 3700 mm
- - Rapid traverse speed: x= 20 m/min, z= 30 m/min, y = 7. 5 m/min (cross slide 1) / rapid traverse speed: x= 22 m/min, z = 45 m/min (cross slide 2)
- - Distance measuring system: x-axis glass scale, z-axis rod encoder
- - Thread cutting without compensating chuck / transmit/tracyl function for c-axis / coupling main spindle/counter spindle
Qualitative Machine Benefits:
- - Overhauled in 2017: switchable high-pressure coolant pump 20 bar including suction filter / exhaust air nozzle d=150mm / bar loading magazine (used, reconditioned)/ index-mbl 65/3700 (d 10 - 65 mm, max. 3700 mm) / kraft & bauer automatic co2 object extinguishing system with air shut-off valve and pressure relief valve for the index g200 lathe / new milling spindle for turret 1 (top) with hsk d-50 tool holder, manually operated.

Extra information

- Cross slides details, tool carriers, machine paintwork specifications.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
