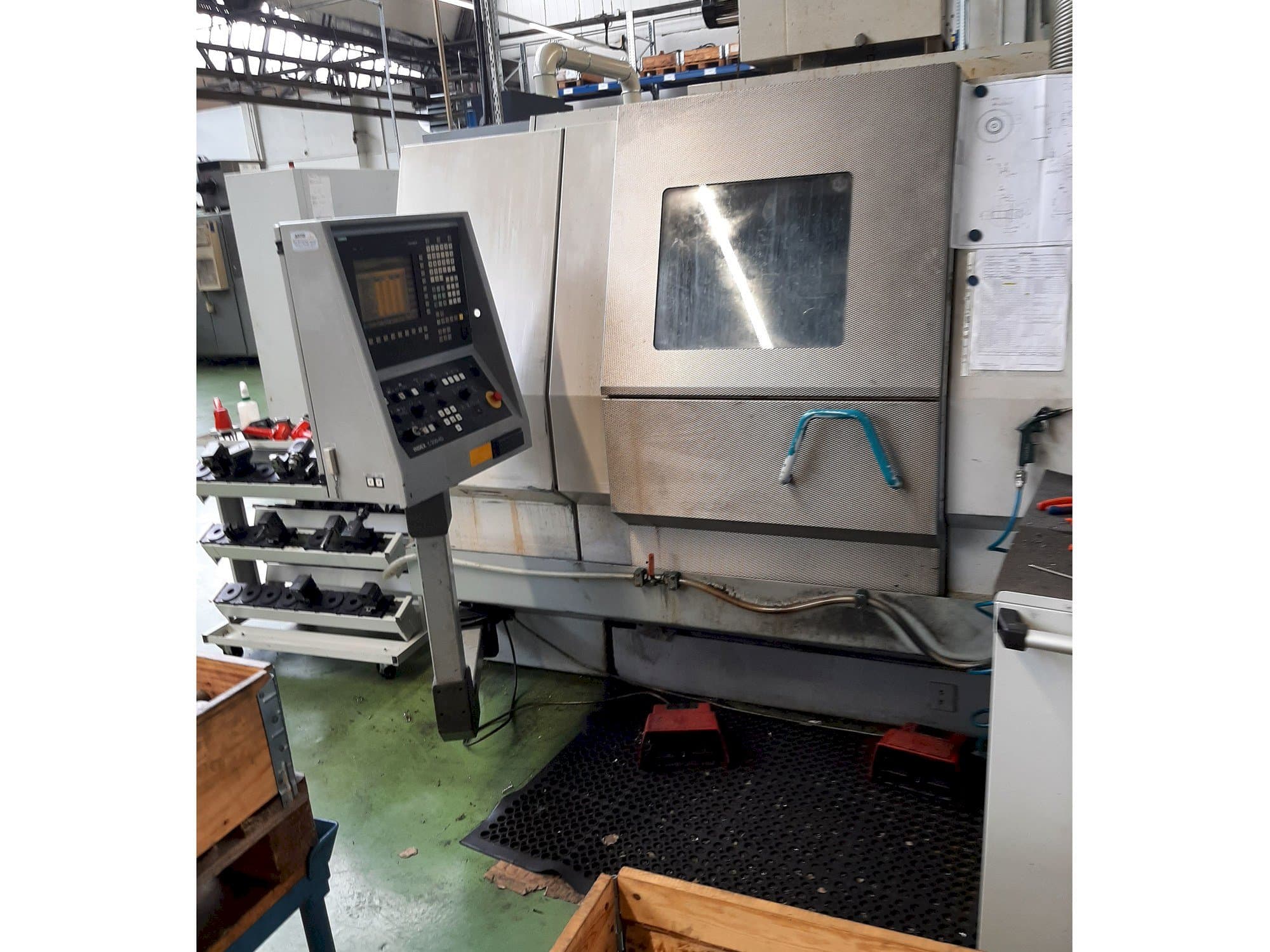

This Index G200 Lathe was manufactured in 2002 in Germany. It is equipped with a SIEMENS SINUMERIK control unit. This machine stands out for its spindle speed up to 5000 rpm and a material passage 60 mm.
Overview
- brand: Index
- year: 2002
- MODEL: G200
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - Index G200
General Data
- Machine weight: 4800 KG
Control Unit
- Model: SINUMERIK
- Brand: SIEMENS
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 100/40 % ED KW 20/29
- Tool taper: D60
- Stroke: 20 mm
Movement
- X-AXIS Feed Force: 5000 n
- X-AXIS Rapid traverse: 20 m/min
Media
- Main electronic connection: 400 v 50 hz
- Power consumption: 41 kw
- Internal cooling: Yes
Additional Equipment
- - Bar feeder is not included in the scope of delivery
- - The scope of delivery includes the machine tool together with chip conveyor, high-pressure coolant system, filter system (fleece) and parts conveyor.
- - The mounted tool holders remain in place
Additional Information
- Technical Machine Benefits:
- - Axis x/z working stroke 120 / 400 mm; working stroke 105 / 400 mm
- - Cabinet mass 440 kg
- - Spindle head admission ad 140 mm, id 85 mm
- - Material passage max. Mm 60; front bearing diameter 100 mm; adjustable three-phase drive
- - Hollow shaft motor: torque nm 95/140
- - Main spindle alignment and switching device d42/d60/d65, graduation 2. 5 degrees via indexing disc
- - Hollow clamping cylinder d60/20 for collet and clamping on the main spindle, hydraulically operated, including end of clamping stroke monitoring
- - Tensile- compressive force ( 57 cm2 ) max 45 kn
- - 1-clamping-pressure device for clamping cylind- on the main spindle, adjustment range 10 to 80 bar, set to the adjusted to the maximum permissible clamping operating force of the clamping medium or pressure tube
- - Counter spindle d60; spindle head admission ad 140 mm, id 85 mm
- Qualitative Machine Benefits:
- - Counter spindle working stroke 445 mm; rapid traverse speed 22. 5 m/min
- - Slide driven in z-direction via ac motor and ball screw d=32 mm, axis drive secured by overload clutch secured.
- - In working position the slide is by the ac motor against the stop
- - Measuring system in z-axis glass scale
- - Power at the counter spindle: power at 100/40 % ed 13/22 kw; torque 61/105 nm
- - Cross slide 1 - x/z, with internal coolant supply and shut-off valve
- - Shut-off valve, revolving via ac motor, ball screws d = 32 mm,
- - Axis drives secured by overload overload clutches, weight compensation in x-axis
- - Measuring system x-axis glass scale z-axis rod encoder
- - Turret head with 14 stations on cross- slide 1; tool mounting holes for cylinder shank din 69880 - 25x48 mm, positioned by face gear, hydraulically locked
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
