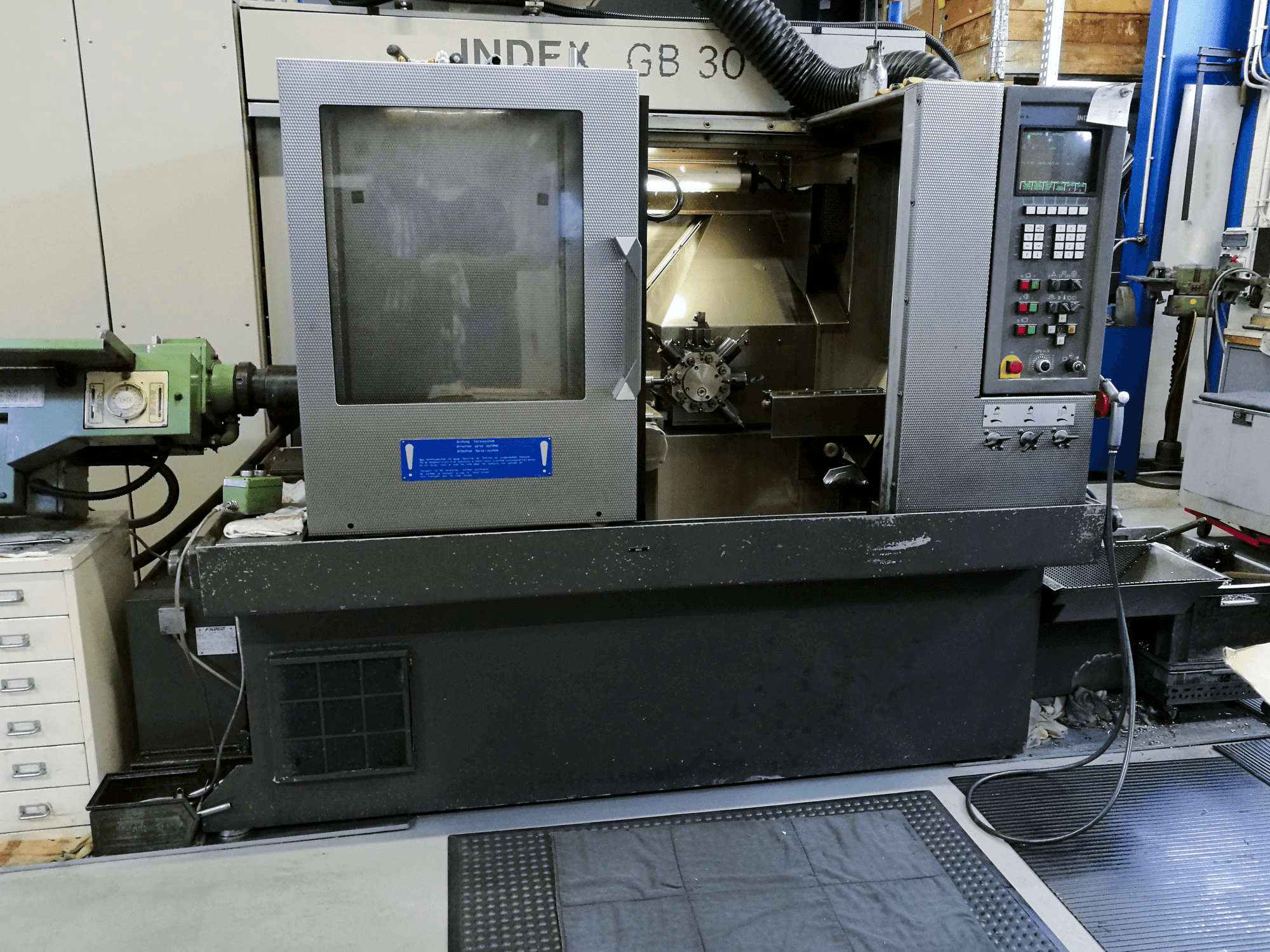

Front view of Index GB 30 machine

Index GB 30

Index - GB 30

1991

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

The GB 30, fabricated in 1991 by Index, is a CNC Lonturning Lathe Machine that has been operative for 10695 working hours. The GB 30 comes with a Control unit by Index itself, and has the advantage of a reliable performance and a high durability. Besides tool holders and a bar loader, this product comes with an additional centrifuge device for cooler oil separation.

Overview

  • brand: Index
  • year: 1991
  • MODEL: GB 30
  • production hours: 10695
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Index
  • GINDUMAC ID: DE-TUR-IND-1991-00001

Technical Information

General Data

  • Measurements width: 2800 mm
  • Measurements depth: 1600 mm
  • Measurements height: 1700 mm
  • Machine weight: 4000 kg

Control Unit

  • Brand: Index
  • Interface: Ethernet

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/MIN
  • Spindle bore: 42

Movement

  • Cross_slide_1 Movement: 50 mm (x)
  • Cross_slide_1 Feed Force: 4000N
  • Cross_slide_1 Rapid traverse: 15m/min
  • Cross_slide_2 Movement: 50 mm (x)
  • Cross_slide_2 Feed Force: 4000N
  • Cross_slide_2 Rapid traverse: 15m/min
  • Compound_slide_1 Movement: 50 mm (x) / 120 mm (z)
  • Compound_slide_1 Feed Force: (x) / 6800N (z)
  • Compound_slide_1 Rapid traverse: 15m/min
  • Compound_slide_2 Movement: 50 mm (x) / 120 mm (z)
  • Compound_slide_2 Feed Force: (x) / 6800N (z)
  • Compound_slide_2 Rapid traverse: 15m/min
  • Turret Movement: 96 mm (x) / 200 mm (z)
  • Turret Feed Force: (x) / 9000N (z)
  • Turret Rapid traverse: 15m/min

Workpiece

  • Workpiece drm: 42 mm

Turret

  • Number of turrets: 1
  • Number of tool slots: 8

Media

  • Main electronic connection: 400 V / 50 Hz
  • Air pressure: 6 bar
  • Lubrication tank: 250-300
  • Oil tank: 150-200
  • Oil pressure: 100

    Additional Equipment

    • - Tool holders
    • - Bar loader
    • - Centrifuge device for oil seperation

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
