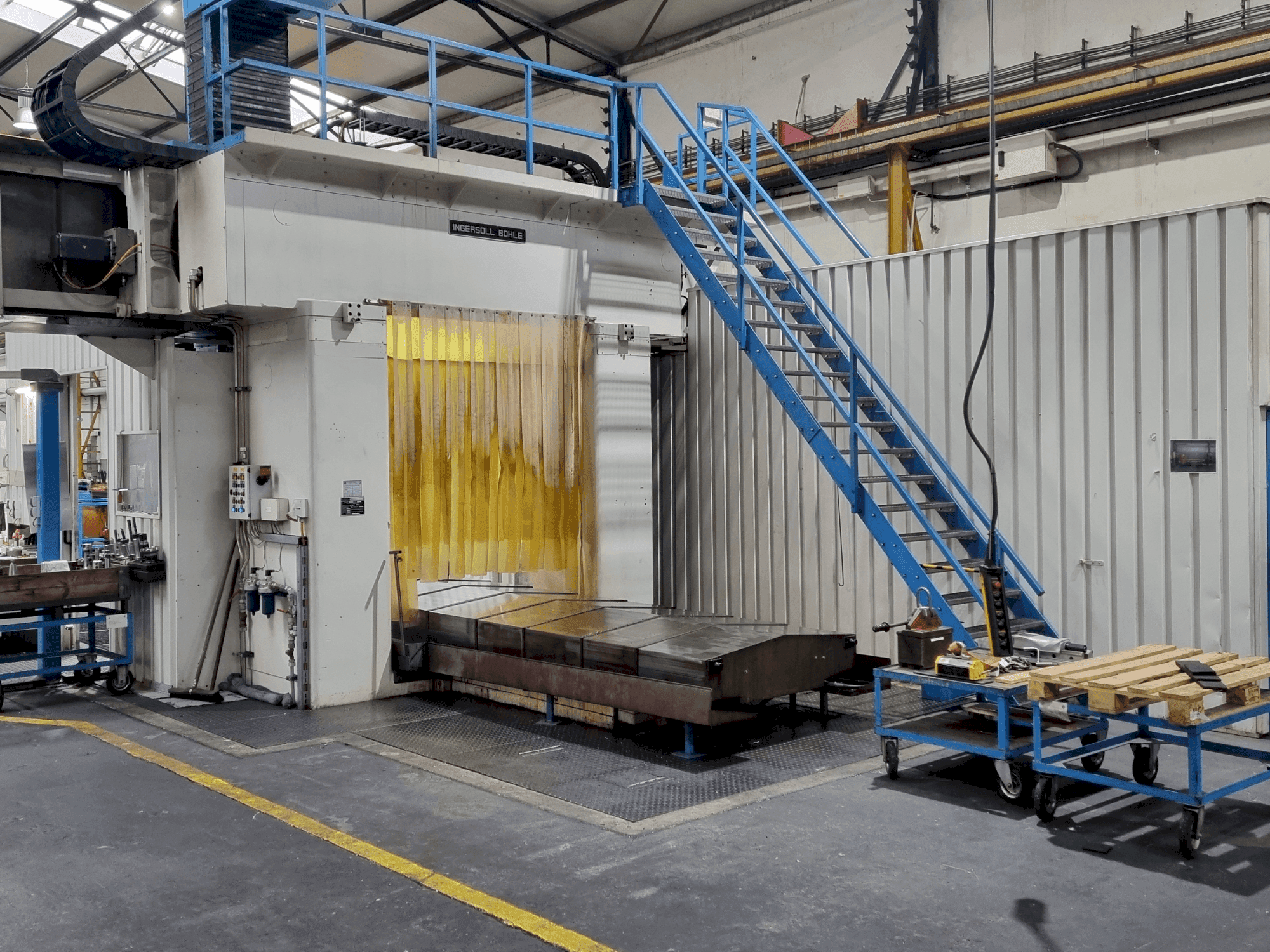

INGERSOLL BOHLE FPMS 1200 5-axis Universal Machining Centre

This INGERSOLL BOHLE FPMS 1200 5-axis Universal Machining Centre was manufactured in 1987 in Germany. It has two tables with each 1500 x 1500 mm and table load of 6 tons (5 tons coupled). The travel range extends over X: 4000mm, Y / portal passage: 2000 mm and Z: 1200mm. In addition the machining centre is equipped with an universal milling head with C axis 360x1° and B axis 2x +/-90x1°. It is operated by a Siemens Sinumerik 840D control unit and comes with a SK50 tool holder and an automatic tool changer with 60 stations. In 2008 the control was retrofitted. The machine is still under production and can be visited at any time. Earliest availability for pick-up is October 2024. Below you can find the original tech specs PDF (DE) and the layout plan. See photo and video gallery to get a more detailed impression of the machine.

Overview

brand: INGERSOLL BOHLE
year: 1987
MODEL: FPMS 1200
application type: Milling
Location: Germany
machine type: Machining centers (universal)
availability: Sold
control unit brand: SIEMENS

Technical Information - INGERSOLL BOHLE FPMS 1200

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Spindle speed range: 11.2 - 2,800 1/MIN
Tool taper: SK50
Number of axis: 5

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1200 mm

Tools

Type of tool holder: SK50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Universal milling head with c-axis 360x1° and b-axis 2x +/-90x1°
- - 2 tables each 1500 mm x 1500 mm // table load of 6 tons (5 tons coupled)
- - X: 4000 mm, y / gantry passage: 2000 mm, z: 1200 mm
- - Automatic tool changer (chain magazine) with max. 60 tools
- - Power milling spindle: 50 kw
- - Max. Automatically changing tool weight (single tool): 30 kg
- - Largest tool length 400 mm // largest tool diameter 315 mm
- - Number of t-slots (lengthwise on table surface) 9, width 28 mmh8 and spacing 160 mm
- - Table height above the floor (machine embedded in the foundation) approx. 800 mm
Qualitative Machine Benefits:
- - Retrofit of control in 2008

Extra information

- Machine is still under production and can be inspected at any time

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
