Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
IXION - TL 1.1 ES-OTH-IXI-2002-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used IXION TL 1.1 - Drill For Sale | gindumac.com

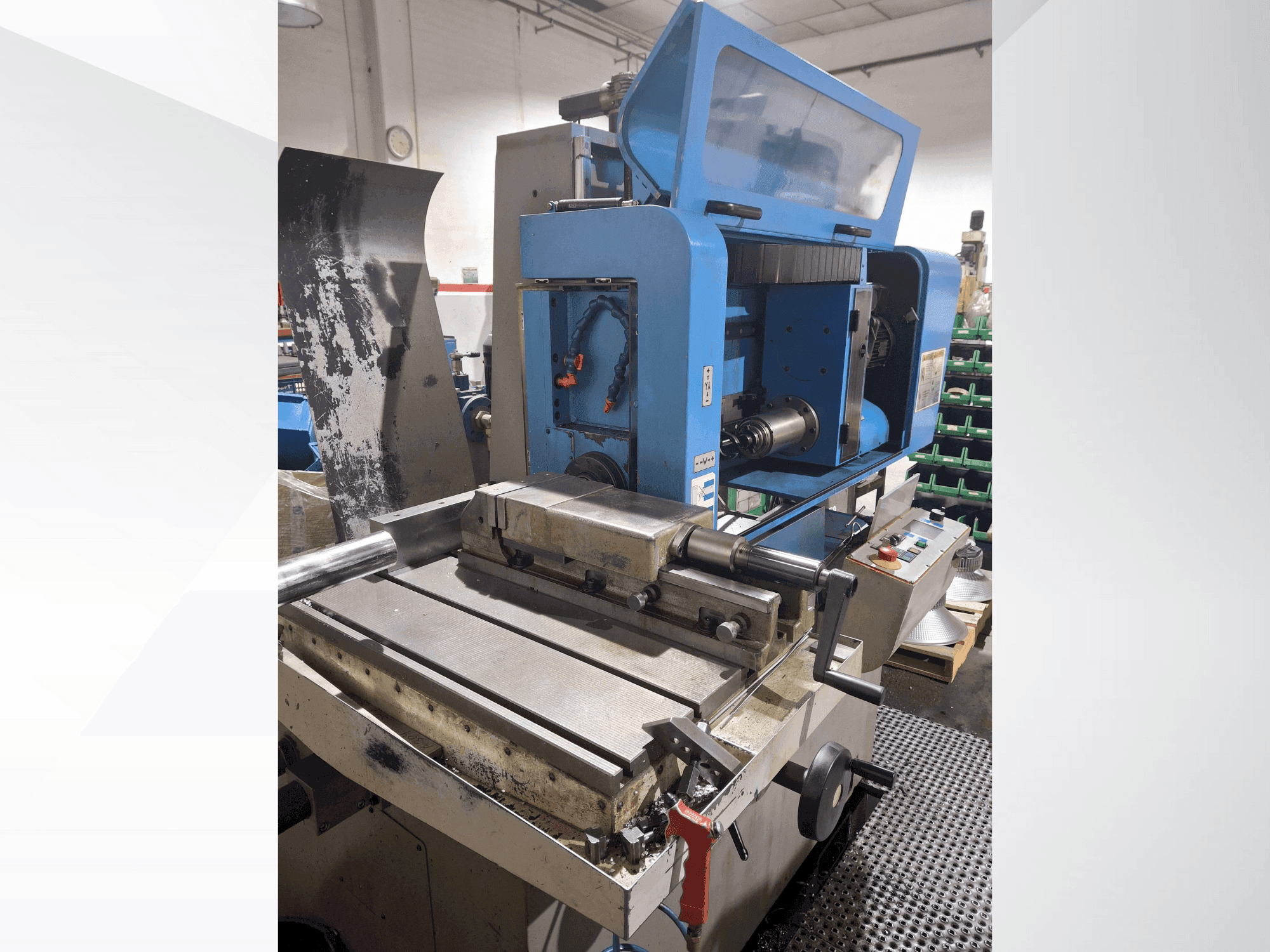

This 3-axis IXION TL 1.1 drilling machine was manufactured in 2002. It offers robust and reliable performance for various drilling applications. If you are looking to get high-quality drilling capabilities, consider the IXION TL 1.1 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: IXION
- year: 2002
- MODEL: TL 1.1
- application type: Other Machine Tools
- Location: Spain
- machine type: Drilling Machine (Metal)
Technical Information - IXION TL 1.1
Dimensions
- Table Length: 900 mm
- Table Width: 500 mm
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Connected power: approx. 10 kva
- Idle noise level at 80% of maximum spindle speed: 70 db(a)
- Measured according to: din en iso 11200 / 11202, din en 12417, din en 13128
Technical Machine Benefits
- Tower travel: 250 mm
- T-slots: 4 longitudinal t-slots, 14 h12 mm
- Slot spacing: 150 mm
- For drilling with single-lip drill bits from Ø 3 to 25 mm
- Tank capacity: 600 liters
- Pressure: max. 90 bar
- Flow rate: max. 40 l/min
- Ac spindle drive power: 4. 0 kw (at 100% duty cycle, s1)
- Voltage: 400 v / 3 ph / 50 hz (3-phase, 5-wire system)
- Network: tn-s or tn-c, compliant with vde 0100 part 300
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
