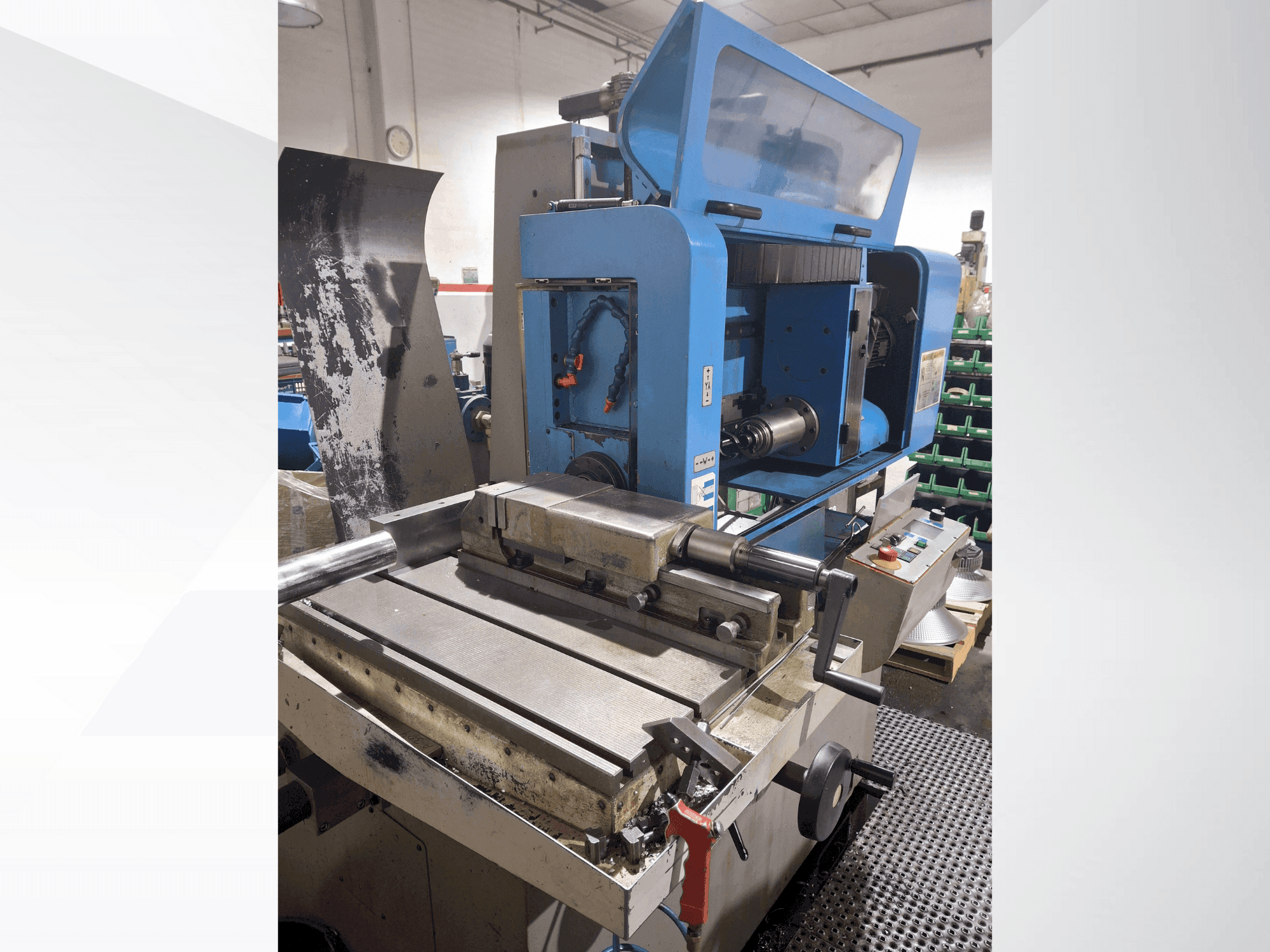

Front view of IXION TL 1.1  machine

IXION - TL 1.1ES-OTH-IXI-2002-00001

25,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis IXION TL 1.1 drilling machine was manufactured in 2002. It offers robust and reliable performance for various drilling applications. If you are looking to get high-quality drilling capabilities, consider the IXION TL 1.1 machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: IXION
  • year: 2002
  • MODEL: TL 1.1
  • application type: Other Machine Tools
  • Location: Spain
  • machine type: Drilling Machine (Metal)
  • availability: Immediately

Technical Information - IXION TL 1.1

General Data

  • Measurements width: 2800 MM
  • Measurements depth: 2000 MM
  • Measurements height: 1900 MM
  • Machine weight: 4000 KG

Main drive

  • Spindle speed range: 300–6000 / 100–1600 1/MIN

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 600 mm

Table

  • Outer length: 900 mm
  • Outer width: 500 mm
  • Table load: 2000

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tower travel: 250 mm
      • - T-slots: 4 longitudinal t-slots, 14 h12 mm
      • - Slot spacing: 150 mm
      • - For drilling with single-lip drill bits from Ø 3 to 25 mm
      • - Tank capacity: 600 liters
      • - Pressure: max. 90 bar
      • - Flow rate: max. 40 l/min
      • - Ac spindle drive power: 4. 0 kw (at 100% duty cycle, s1)
      • - Voltage: 400 v / 3 ph / 50 hz (3-phase, 5-wire system)
      • - Network: tn-s or tn-c, compliant with vde 0100 part 300
    • Qualitative Machine Benefits:
      • - Connected power: approx. 10 kva
      • - Idle noise level at 80% of maximum spindle speed: 70 db(a)
      • - Measured according to: din en iso 11200 / 11202, din en 12417, din en 13128

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
