Johnford - BMC 110ES-BOR-JOH-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Johnford BMC 110 For sale | gindumac.com

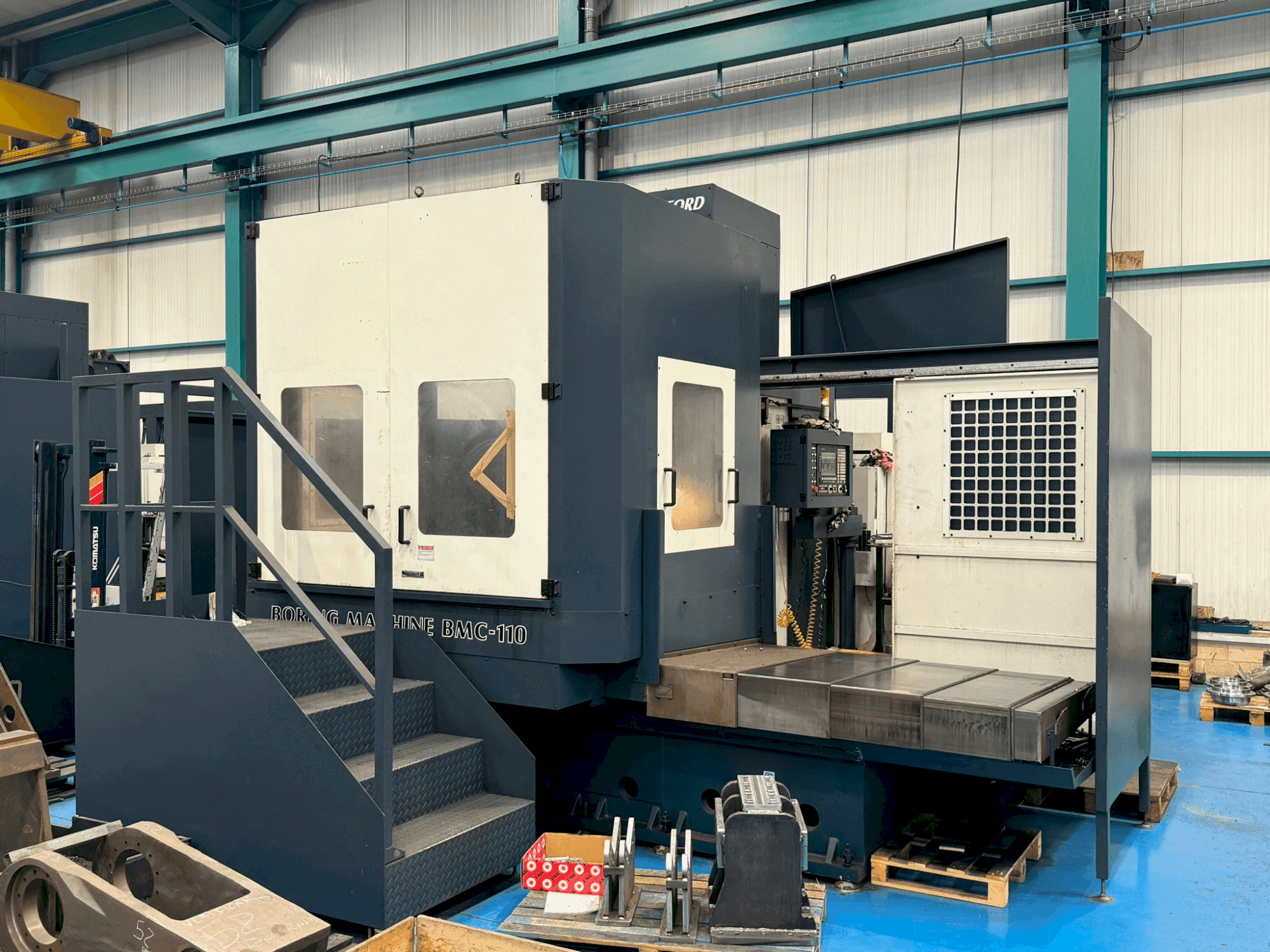

This 5-axis Johnford BMC 110 boring machine was manufactured in 2012. It features a robust table with a 1,400 x 1,600 mm surface and a maximum load capacity of 12,000 kg. Equipped with a high-power spindle, it offers speeds up to 3,000 rpm and a spindle diameter of 110 mm. The machine includes a 60-tool capacity automatic changer and internal coolant at 20 BAR. For those looking to buy this Johnford BMC 110 boring machine, Contact us for further details.
Overview
- brand: Johnford
- year: 2012
- MODEL: BMC 110
- application type: Other Machine Tools
- Location: Spain
- machine type: Boring Machine (Metal)
Technical Information - Johnford BMC 110
Dimensions
- Table Length: 1400 mm
- Table Load: 12 kg
- Table Width: 1600 mm
Movement
- X-axis Travel: 2000 mm
- Y-axis Travel: 1800 mm
- Z-axis Travel: 1600 mm
Technical Specification
- Max. Tool Weight: 25 kg
- Spindle Power: 22 kW
- Spindle Speed: 3000 RPM
Additional Information
Additional equipment
- Internal coolant 20 BAR
- Double longitudinal chip conveyor
- Transversal chip conveyor
- Portable Handwheel
Machine Benefits
Qualitative Machine Benefits
- Precision in continuous table rotation and controlled axes.
Technical Machine Benefits
- High load capacity, extensive travel ranges, high rapid feed rates, and cutting speeds.
- Table rotation (b axis): continuous (0. 001º).
- Boring spindle diameter: 110 mm.
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
