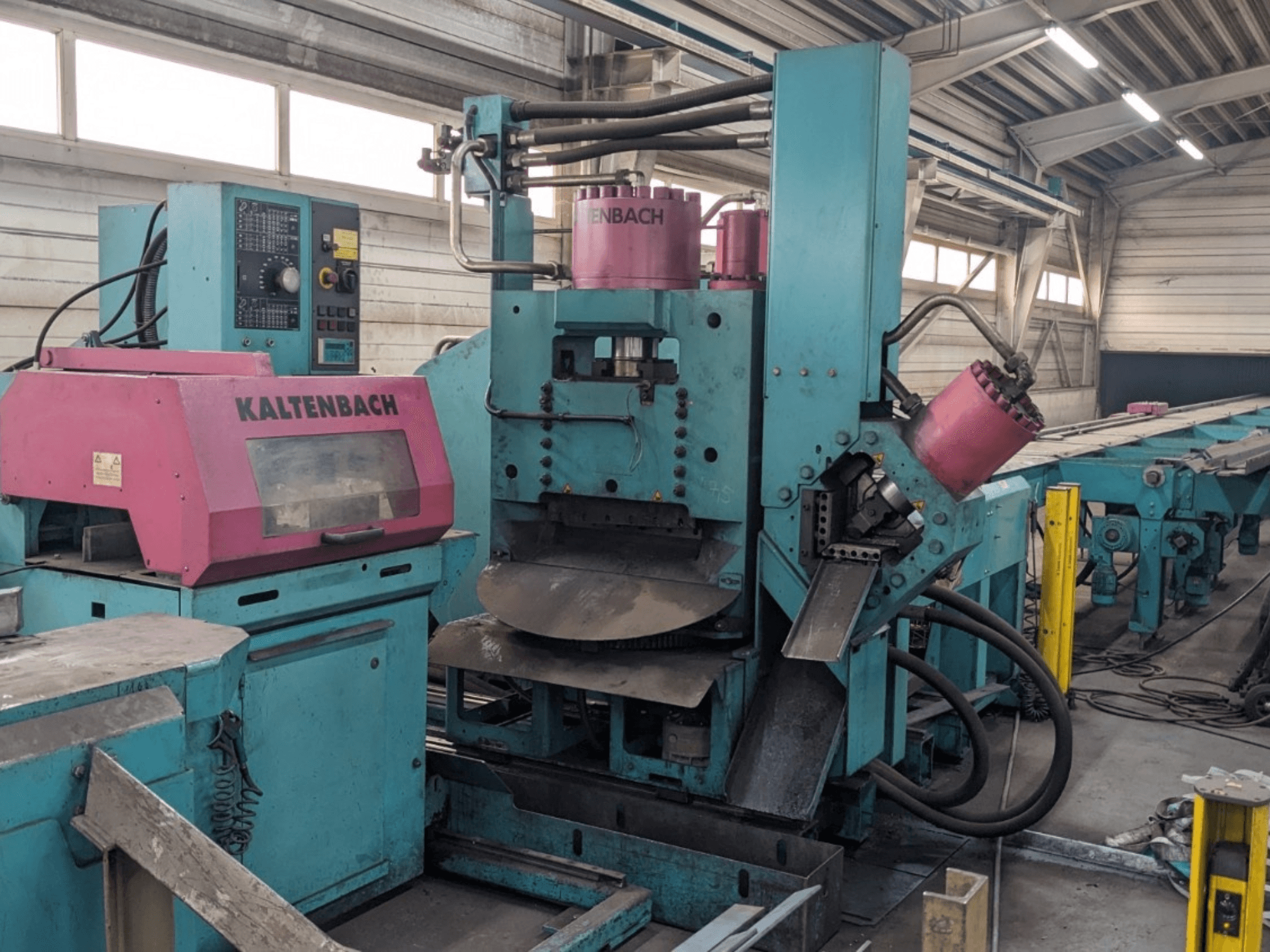

This KALTENBACH KPS 506 was manufactured in 2009. It's an automatic punching and shearing system for flat bars and angle profiles, featuring a 6-tool automatic changer with hole diameters ranging from Ø5–40 mm. It supports straight and mitre cutting with a working range of 50 × 5 mm to 500 × 25 mm. Includes NC-controlled automatic feeding and a finished part delivery unit. Contact us for more information about this machine.
Overview
- brand: KALTENBACH
- year: 2009
- MODEL: KPS 506
- application type: Punching
- Location: Hungary
- machine type: CNC Punching Machine
Technical Information - KALTENBACH KPS 506
Technical Specification
- Punching Force: 1250 Kn
Additional Information
Condition: Stopped in working condition; unused for a long time
Punching unit: 6-tool automatic changer; hole diameter Ø5–40 mm
Shearing (cutting) force: approx. 2,200 kN
Working range (flat steel): 50 × 5 mm to 500 × 25 mm
Cutting type: Straight and mitre cutting
Material feed: NC-controlled automatic feeding unit
Output side: Finished part delivery and collection unit
Additional equipment
Marking unit (for position or hole marking)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
