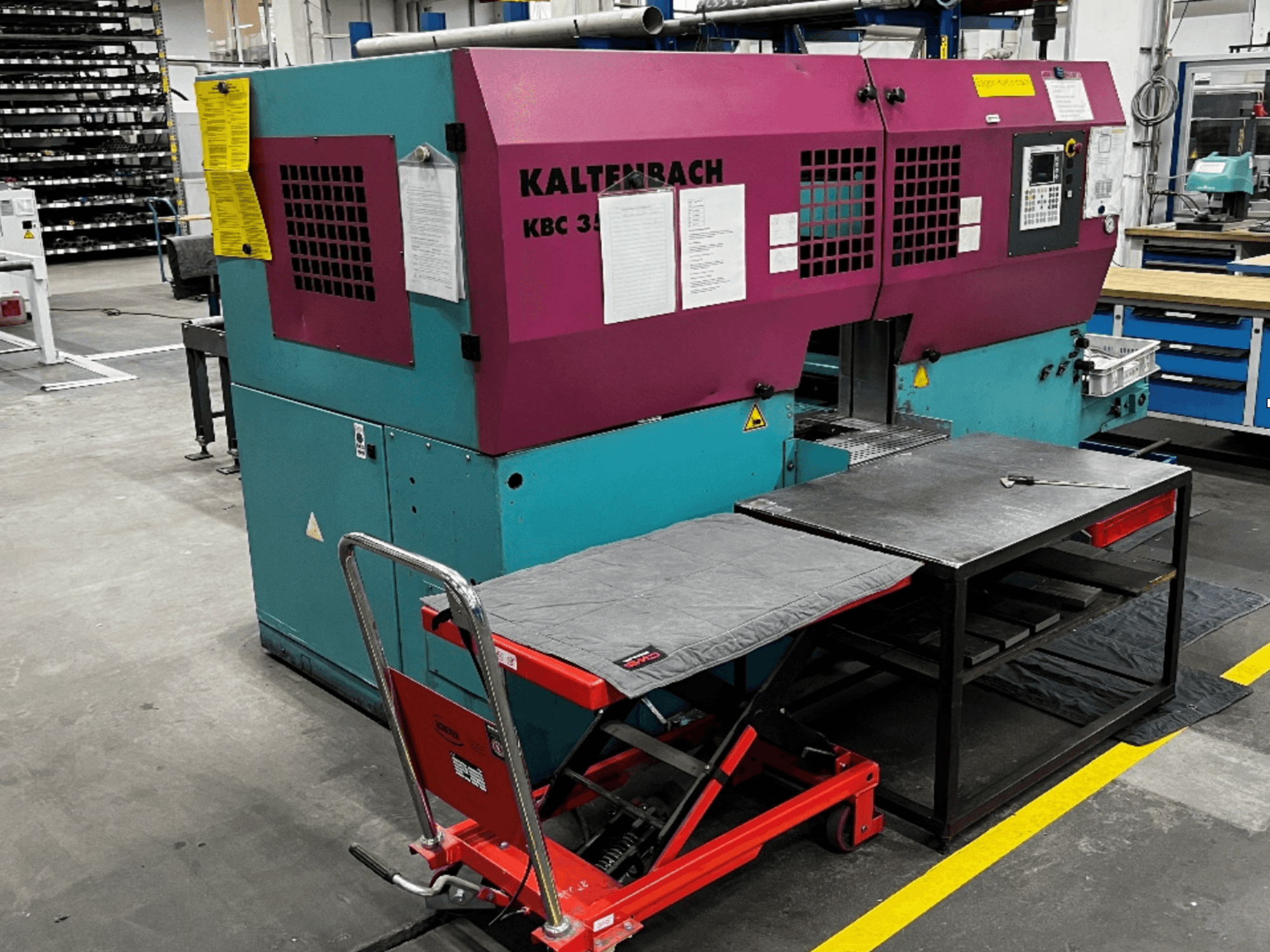

Metal Band Saw manufactured in 2007. This KALTENBACH KBC 350 NA features a maximum cutting diameter of 350 mm and a maximum square cutting capacity of 400 x 350 mm. It operates at cutting speeds ranging from 20 to 120 m/min. The machine is in good working condition, with regular maintenance performed, including oil changes and filter replacements. If you are looking to get high-quality sawing capabilities, consider the KALTENBACH KBC 350 NA machine we have for sale. Contact us for further details.
Overview
- brand: KALTENBACH
- year: 2007
- MODEL: KBC 350 NA
- application type: Sawing
- Location: Germany
- machine type: Metal Band Saw
- control unit brand:
Technical Information - KALTENBACH KBC 350 NA
Dimensions
- Machine Weight: 2900 kg
Additional Information
Electrical
Operation voltage: 3 × 400 V, 50 Hz
Control voltage: 24 V DC
Valve voltage: 24 V DC
Total nominal current: 18 A
Fuse (supply): 25 A
Condition: Good working condition
Maintenance
Regular maintenance: oil change (hydraulic 45 L, gearbox 3 L), filter replaced
2025: new roller bolts; new belt tension guide/KBC; major maintenance/repair by Kaltenbach
Capacities
Max. round: Ø 350 mm
Max. square: 400 × 350 mm
Minimum automatic sawing length: 70 mm
Cutting speed: 20–120 m/min
Saw blade dimensions: L 5100 mm × W 34 mm × T 1.1 mm
Max. workpiece weight: 500–1000 kg per meter
Machine dimensions: 2.2 m × 1.5 m × 2 m (excluding infeed and outfeed)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
