KASTO - cut DU 4DE-SAW-KAS-2009-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used KASTO cut DU 4 - 2009 - For Sale | gindumac.com

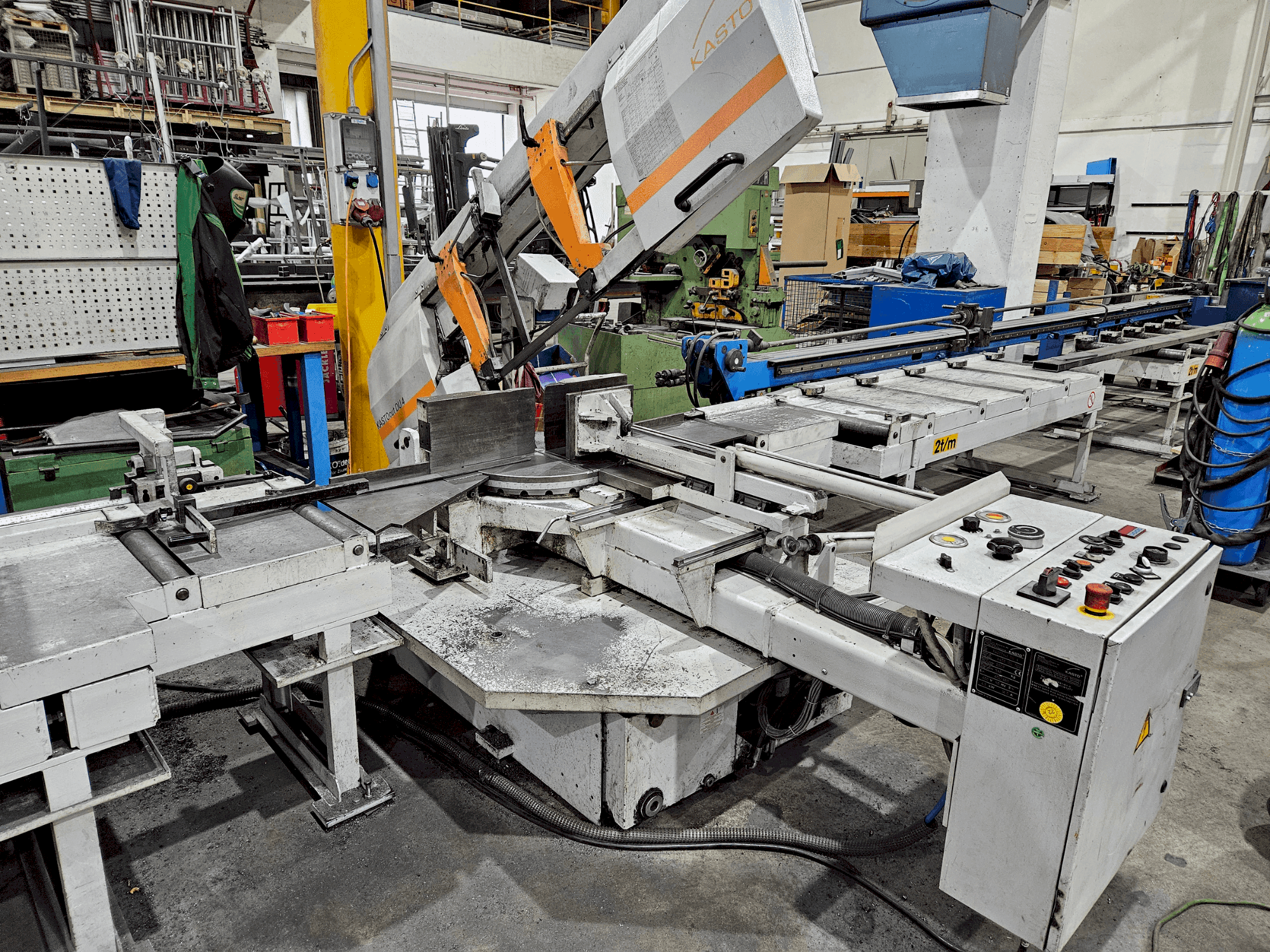

This Metal Band Saw was manufactured in 2009. It features a robust design with dimensions ranging up to 2460mm in length and 2185mm in height, and a total weight of approximately 1300 kg. The saw motor is powered by 3.0 kW, supporting a cutting speed from 20 to 110 m/min. It includes hydraulic material clamping and a coolant system with a 65-liter capacity. Ideal for handling material weights up to 400 kg/m. For more information about this Metal Band Saw, please reach out to us.
Overview
- brand: KASTO
- year: 2009
- MODEL: cut DU 4
- application type: Sawing
- Location: Germany
- machine type: Metal Band Saw
- availability: Immediately
Technical Information - KASTO cut DU 4
General Data
- Measurements width: 2890 MM
- Measurements depth: 2460 MM
- Measurements height: 2185 MM
- Machine weight: 1300 KG
Main drive
- Main motor power: Total drive 5.0 kW, Saw motor 3.0 kW
Additional Equipment
- - Hydraulic material clamping
- - Coolant system with 2 coolant nozzles
- - Saw blade cleaning with easily replaceable plastic brush
Additional Information
- Technical Machine Benefits:
- - Mitre adjustment - 60°/ + 60°
- - Cutting speed: infinitely variable from 20 to 110 m/min
- - Cutting feed: infinitely variable
- - Saw blade guide: carbide, replaceable
- - Saw blade tensioning: hydraulic
- - Cutting ranges (standard) in mm approx:mitre angle 0° (90°) ± 45° ± 60° round: Ø 400 mm, 320 mm, 250 mm square: 320 x 320 mm, 320 mm, 220 x 220 mm flat wxh: 520 x 320 mm, 320 x 320 mm, 220 x 320 mm
- - Minimum diameter to be sawn: 10 mm
- - Minimum length to be sawn: 10 mm
- - Shortest remaining piece length: 45 mm
- - Maximum material weight: 400 kg/m
- Qualitative Machine Benefits:
- - Coolant filling quantity: approx. 65 litres
- - Coolant pump capacity: approx. 25 l/min
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
