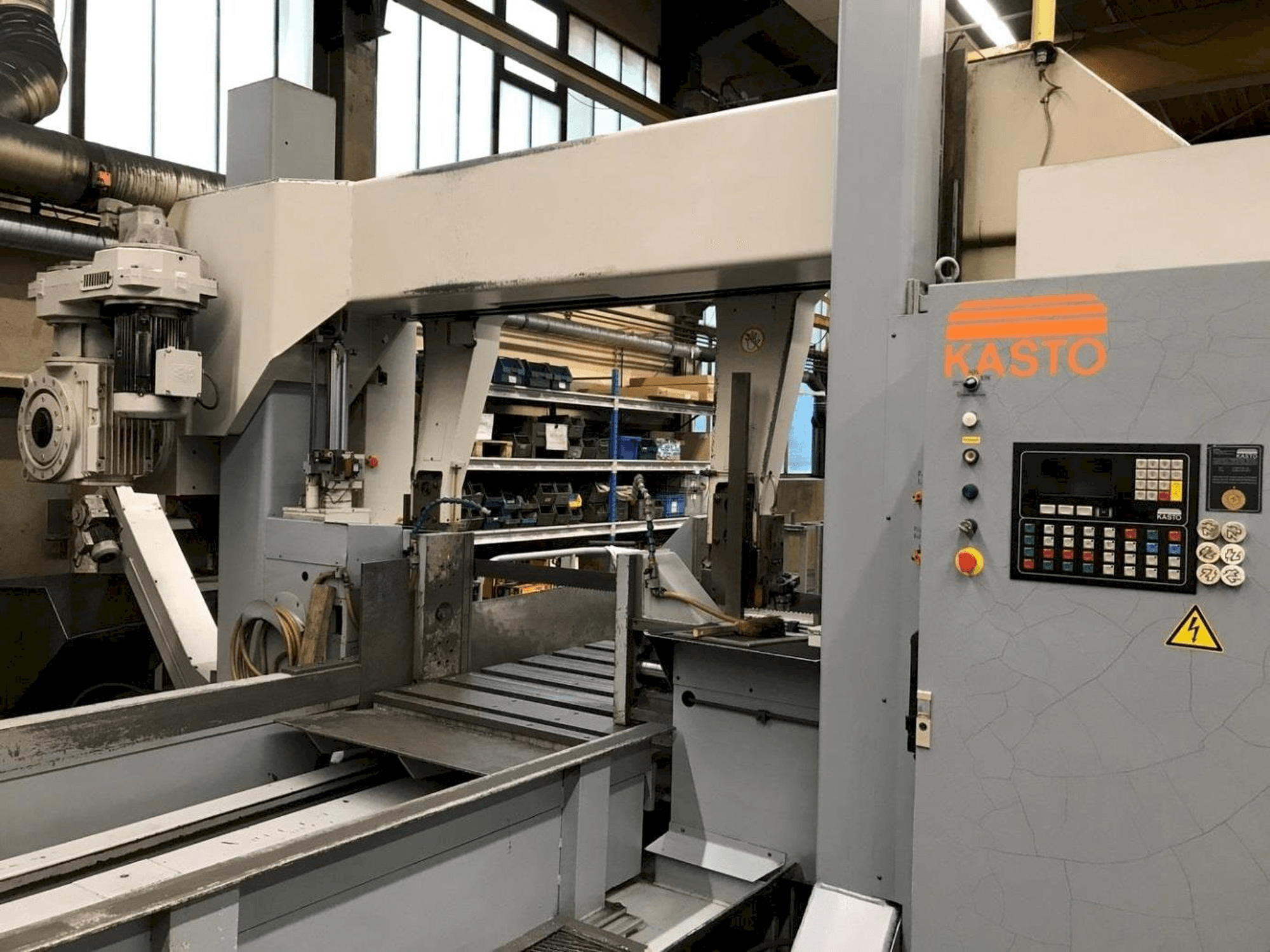

Front view of KASTO HBA 1060/1260AU machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KASTO HBA 1060/1260AU

KASTO - HBA 1060/1260AUDE-SAW-KAS-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KASTO HBA 1060/1260AU band saw machine

This KASTO HBA 1060/1260AU band saw machine was built in the year 1995 in Germany. It is equipped with a KASTO CNC control unit. The machine has a max workpiece diameter of 1060 mm and a cutting speed of 16-80 m/min.

Overview

brand: KASTO
year: 1995
MODEL: HBA 1060/1260AU
application type: Sawing
Location: Germany
machine type: Metal Band Saw
availability: Sold

Technical Information - KASTO HBA 1060/1260AU

General Data

Measurements width: 5800 mm
Measurements depth: 6700 mm
Measurements height: 3400 mm
Machine weight: 19000 kg

Control Unit

Model: CNC

Table

Outer length: 2500 mm
Outer width: 1250 mm
Table load: 20000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Material diameter 1060 mm
- - Strip length 11400 mm
- - Cutting width 1260 mm
- - Cutting range at 90 degrees: square 1060 x 1060 mm, flat material 1260 x 1060 mm
- - Feed length 2100 mm
- - Cutting speed 16-80 m/min
- - Automatic program
- - Chip conveyor
- - Dimensions of band saw [m] 11430x80x1. 6mm
- - Dimensions of saw belt [inches]. 37' 6" x 3-1/8" x 0. 063"
Qualitative Machine Benefits:
- - Belt width: 80 mm
- - Belt length: 11430 mm
- - Thickness: 1. 6 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
