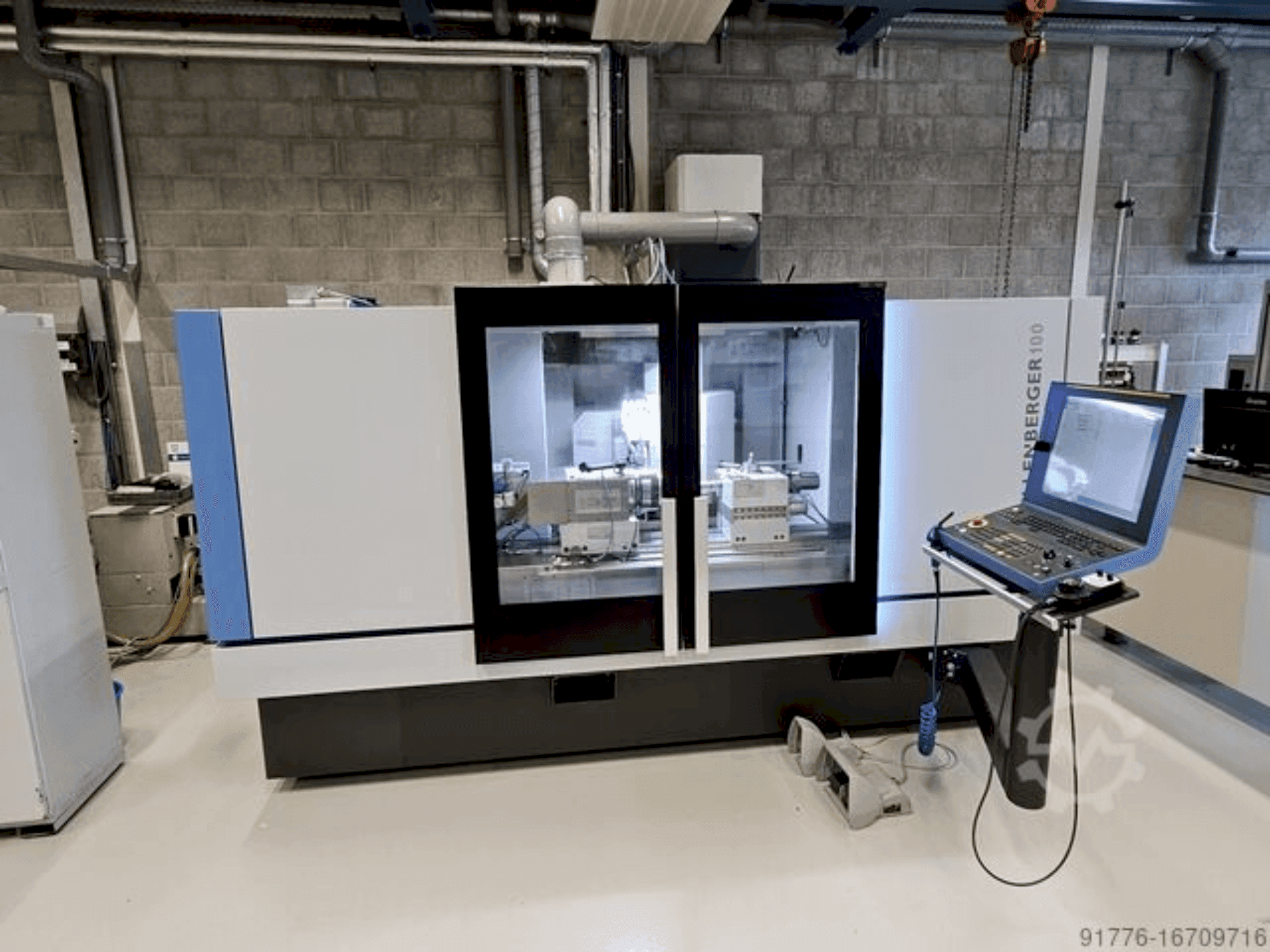

Front view of KELLENBERGER 100  machine
Front view of KELLENBERGER 100  machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KELLENBERGER 100

Photo Gallery
An SVG of an eye

KELLENBERGER - 100NL-GRI-KEL-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
  • GINDUMAC
  • Products
  • Machine Tools
  • ➤ Used KELLENBERGER 100 For Sale | gindumac.com
Show in original language

This cylindrical grinding machine was manufactured in 2020. It features a robust KELLENBERGER 100 design with a CNC Control Fanuc 31i-B, advanced graphic-interface, and a wheelhead UR-RS 1-5-6. It supports non-cylindrical contour grinding and has a grinding wheel flange of Ø 203.2 mm. Consider the opportunity to buy this KELLENBERGER 100 cylindrical grinding machine. For more information about this machine, please reach out to us.

Overview

  • brand: KELLENBERGER
  • year: 2020
  • MODEL: 100
  • production hours: 1700
  • application type: Grinding
  • Location: Netherlands
  • machine type: Cylindrical Grinding Machine
  • availability: Sold
  • control unit brand: FANUC

Technical Information - KELLENBERGER 100

Control Unit

  • Brand: FANUC
  • Model: 31i

Main drive

  • Spindle speed range: 40000/90000 1/MIN

    Additional Equipment

    • - Profibus Interface for Handling System
    • - Electrical Driving Unit for Automatic Sliding Door
    • - Two-Stage Foot Switch for Permission

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Grinding wheel flange: diameter 203. 2 mm, cone 63
        • - Oil-air lubrication
        • - Swivelling diamond holder: diameter 9. 525 mm
        • - Single-point profiling diamond: diameter 9. 525 mm
        • - Form roll Ø100/120x17x40h5 x=5 w=2/2. 5
        • - Tactile measuring head on wheelhead
        • - Wheel and workpiece contact sensor on workhead 150
        • - Measuring control units: movomatic esz 400 or marposs p7 me
        • - Fluid contact sensor with magnetic base
        • - Balancing units for two external grinding wheels
      • Qualitative Machine Benefits:
        • - Kellenberger advanced graphic-interface
        • - Module for non-cylindrical contour grinding
        • - Numerically controlled b-axis direct drive
        • - Wheelheads and equipment: ur-rs 1-5-6 wheelhead
        • - Reinforced workhead direct drive 150 with c-axis
        • - Coolant supply through workhead spindle
        • - Dressing device on upper table
        • - Form dresser for internal and external grinding
        • - 8-m multi-grain diamond (free cut)
        • - Coolant filter units: paper band filter 480 litres / spb 5 full machine enclosure for emulsion prep for mist collector

      Extra information

      • - Machine still under power Software: Module for Out of Round Grinding X/C Interpolation RED Solution - HMI GRAPHIC Guide for 2D Component Drawings and DXF Data ICON Guide for ISO-Based Program Design APP Out Of - Round for Non-Circular Contours (Rectangle, Polygon, etc.) Tailstock 150 with Pneumatic Sleeve Retraction Sleeve Taper: Morse 4 Sleeve Stroke: 50 mm Peak Force Adjustable 200-700 N Max. Loading Capacity: 150 kg Pneumatic Assistance and Micro-Adjustment for Fine Correction Clamping Devices: Quickchange System from Erowa Heyn 3-Jaw Chuck Collet Adapter Magnetholder

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Borja Garcia

    Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
