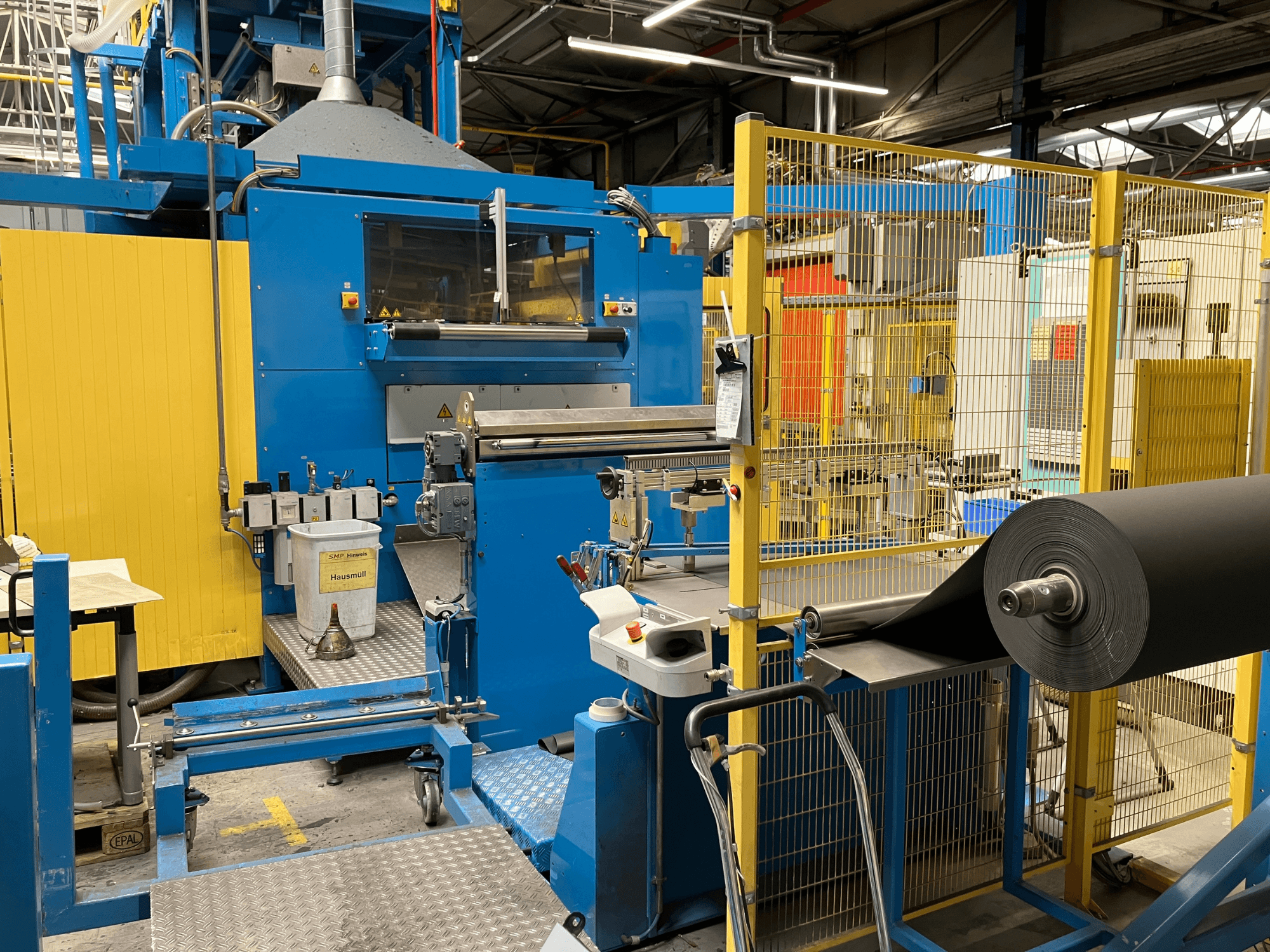

KIEFEL KLS 86/235 plastic processing machine viewed from the front, featuring a roll of black material and control panel.
KIEFEL KLS 86/235 plastic processing machine viewed from the front, featuring a roll of black material and control panel.

Thank you for your visit

This machine was recently sold.

Browse similar machines

KIEFEL - KLS 86/235DE-OTH-KIE-2011-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This KIEFEL KLS 86/235 was manufactured in 2011. It features a maximum forming area of 860 x 2350 mm and a maximum forming part height of 350 mm. The machine is equipped with a powerful vacuum system with a suction power of 2 x 300 m³/h. If you are looking to get high-quality laminating capabilities, consider the KIEFEL KLS 86/235 laminating system we have for sale. Contact us for further details.

Overview

  • brand: KIEFEL
  • year: 2011
  • MODEL: KLS 86/235
  • production hours: 35000
  • application type: Other Plastic Processing Machinery
  • Location: Germany
  • machine type: Plastic Processing Machine

Additional Information

  • Operating voltage: 3 x 400V + N + PE / 50 Hz

  • Connected load: 225 kVA

  • Nominal current: 264 A

  • Preliminary fuse: 315 A

  • Short-circuit strength: 50 kA

  • Control voltage: 24 VDC

  • Max. forming area: 860 x 2350 mm

  • Min. forming area: 340 x 1200 mm

  • Max. forming part height: 350 mm

  • Film level: 1805 mm

  • Max. lower table stroke: 1330 mm

  • Max. upper table stroke: 585 mm

  • Rotary upper table: 4-part (Forming / Punching)

  • Punching force upper table: 30 kN

  • Punching counterforce lower table: 30 kN

  • Operating pressure: 6 bar

  • Compressed air requirement: approx. 300 Nl/cycle

  • Max. roll diameter: 600 mm

  • Max. film width: 1100 mm

  • Max. film roll weight: 400 kg

  • Coil diameter max: 76 mm

  • Vacuum system suction power: 2 x 300 m³/h

  • Vacuum system power: 7.6 kW

  • Tank volume: approx. 1000 L

  • Side channel blower suction: 14 m³/min

  • Side channel blower power: 8.5 kW

  • Feed width chain rails: max. 940 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
