- ➤ Used KIESLING Perforex BC1007HS | Machining Center

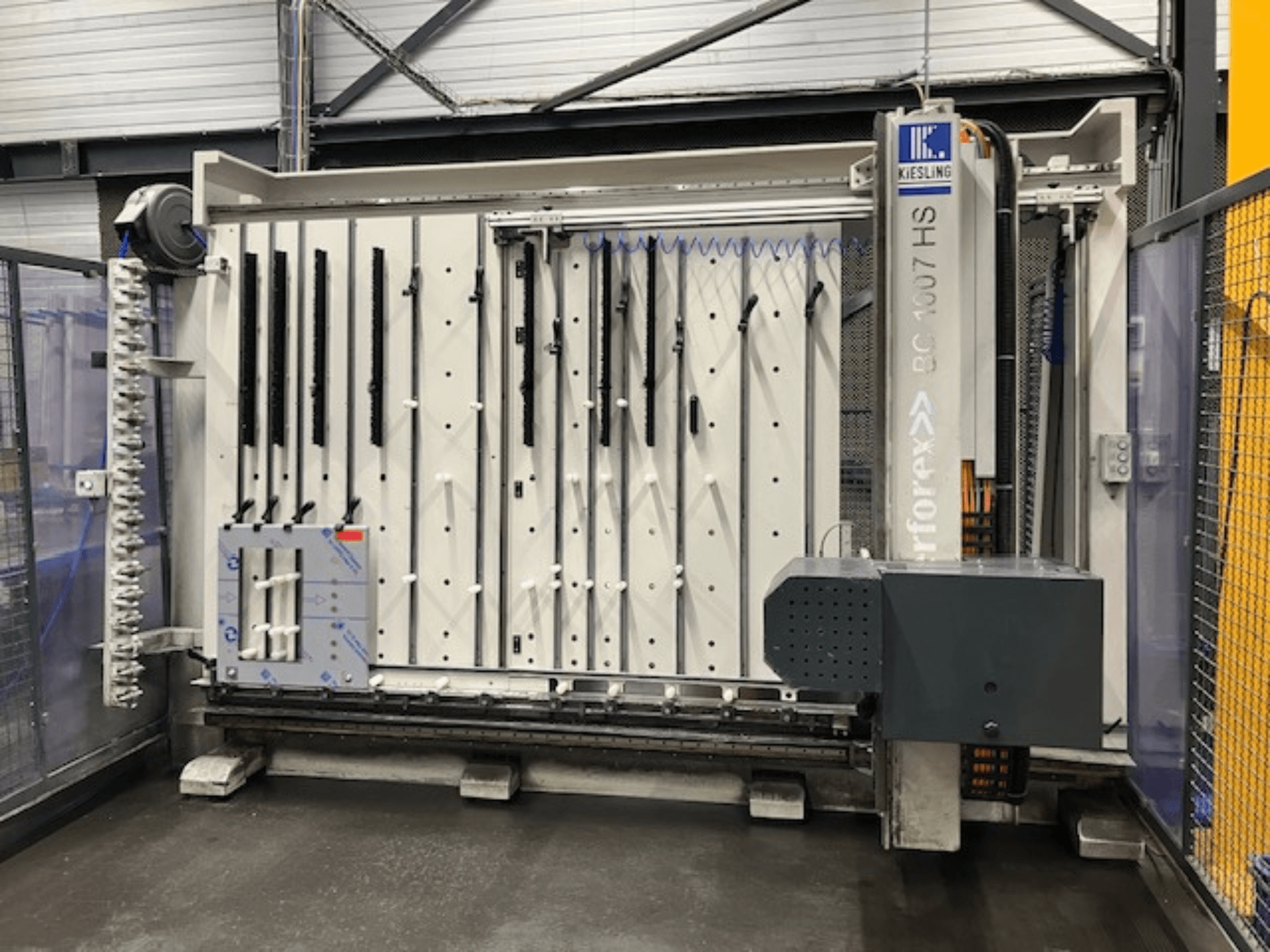

This 3-axis KIESLING Perforex BC1007HS was manufactured in 2015. It features impressive travel distances with an X-axis of 2,500 mm, Y-axis of 1,700 mm, and Z-axis of 315 mm. The machine is equipped with a CNC 4-axis controller and a robust electric spindle capable of speeds up to 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the KIESLING Perforex BC1007HS horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: KIESLING
- year: 2015
- MODEL: Perforex BC1007HS
- application type: Milling
- Location: Netherlands
- machine type: Horizontal Machining Centre
Technical Information - KIESLING Perforex BC1007HS
Dimensions
- Machine Height: 2410 mm
- Machine Length: 3570 mm
- Machine Weight: 2200 kg
- Machine Width: 3490 mm
Movement
- Number of Axes: 3
- X-axis Travel: 2500 mm
- Y-axis Travel: 1700 mm
- Z-axis Travel: 315 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Mounting plate dimensions
Length: 250–2,200 mm (1,100 mm with door open)
Width: 95–1,600 mm (1,700 mm with door open)
Height/Thickness: 1–10 mm
Cube dimensions
X (width): 90–1,400 mm
Y (height): 100–1,600 mm
Z (depth): 110–1,600 mm
Axes and travel
Rapid traverse: X 60 m/min / Y 60 m/min / Z 20 m/min
Spindle and tooling
Electric spindle: 7.5 Nm
Tool changer: fixed tool magazine, 18 tool locations, 88 mm center-to-center
Standard tooling set:
Collets for drills: Ø 3–7 mm
Collets for thread cutters: M4, M5, M6, M8
Cooling/lubrication: minimum quantity lubrication at the drill
Pneumatics, controller, safety
Pneumatics: 10 mm connection (ID), 6 bar, 150–200 L/min air consumption
Controller: CNC 4-axis (ferrocontrol)
Safety device: photoelectric light curtain
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
