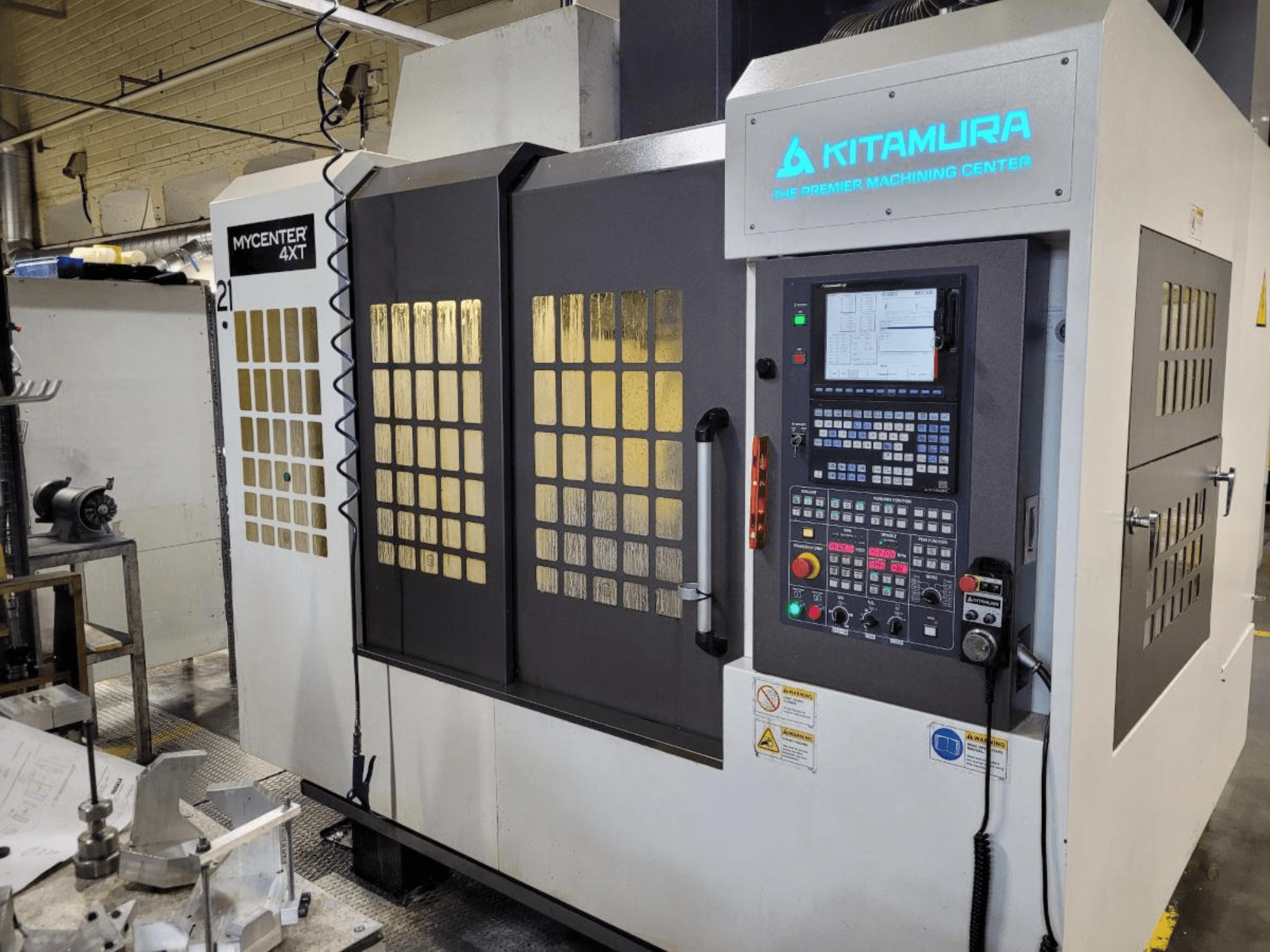

This 5-axis Kitamura Mycenter-4XT was manufactured in 2014. It features an X-axis travel of 800 mm, Y-axis travel of 610 mm, and Z-axis travel of 510 mm. The machine includes a spindle speed of 15,000 rpm and a tool magazine capacity of 30 positions. If you are looking to get high-quality machining capabilities, consider the Kitamura Mycenter-4XT vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Kitamura
- year: 2015
- MODEL: Mycenter-4XT
- application type: Milling
- Location: Finland
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - Kitamura Mycenter-4XT
Dimensions
- Machine Height: 3023 mm
- Machine Length: 3040 mm
- Machine Weight: 6864 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Speed: 15000 RPM
- Taper Size: BT 40
Additional Information
Control unit: Mitsubishi Arumatik (Fanuc compatible)
Availability: Immediately available
Z-axis travel: 510 mm
Table diameter: 400 mm
Spindle hours: approx. 11,000 h
Max. tool length: 300 mm
Tool change time: 2 s
Power supply: 58 kVA
Additional equipment
5th axis with 400 mm rotary table
2-speed ZF gearbox on spindle
Through-spindle coolant (low pressure), high-pressure ready
3D probe
Tool measurement system
Chip conveyor (screw + lifting type)
Approx. 30 tool holders included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
